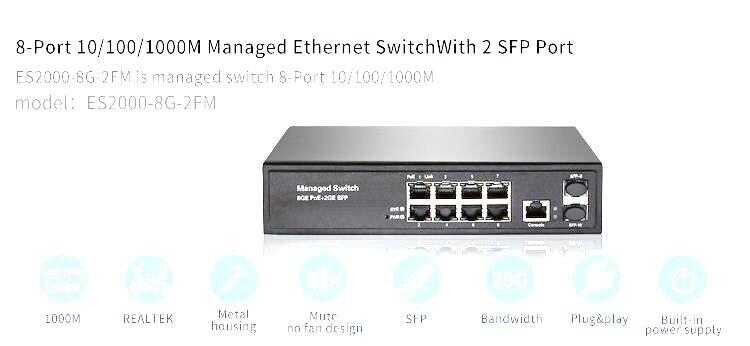

ENTEGRON ES2000ENTG8G-2FM 8G+2SFP Full
Gigabit Managed Ethernet Switch
Overview
ES2000ENTG8G-2FM is a fully Gigabit two layer network management switch designed and developed solely for the purpose of building high-performance gigabit network requirements. Entegron,8 full Gigabit RJ45 ports and 2 separate Gigabit SFP (Mini GBIC), Provide a comprehensive security protection system, Perfect QoS strategy and rich VLAN function,Management and maintenance are simple and can be applied to small and medium enterprises, Core layer of community and school.
Full Gigabit access
Comprehensive safety protection system
Powerful VLAN capabilities
IEEE, 802.1Q, VLAN
Rich QoS strategy
3 priority modes based on port, IEEE802.1p and DSCP
Multilevel access control policy
Reliability design
STP/RSTP/MSTP two layer link protection technology, IGMP Snooping technologySecure network management and maintenance
CLI command line (Console, Telnet), Web network, SNMP (V1/V2c/V3, SSH (V1/V2) and other management methods
Specifications
Model ES2000ENTG8G-2FM Product 8G+2SFP Full Gigabit Managed Ethernet Switch Fixed port 8*10/100/1000Base-TX 2*100/1000M SFP Console port 1*console port Reset Key 1 CPU 500M DDR 1G DDR3 1333MHz Buffer Fully integrated 4.1M packet buffer FLASH 16M RAM 128M Bandwidth 20/56Gbps Packet Forwarding 14.44Mpps MAC Address 8K Network Protocol IEEE 802.3
IEEE 802.3u 100BASE-TX
IEEE 802.3ab1000BASE-T
IEEE 802.3x
IEEE 802.3z 1000BASE-X
IEEE 802.3ad
IEEE 802.3q 、IEEE 802.3q/p
IEEE 802.1w、IEEE 802.1d 、IEEE 802.1S
STP(Spanning Tree Protocol)
RSTP/MSTP( Rapid Spanning Tree Protocol)
EPPS ring network protocol
EAPS ring network protocolPort Specification 10/100/1000BaseT(X)Auto Transmission Mode Store and Forward(full wirespeed) Transmission Distance 10BASE-T : Cat3,4,5 UTP(≤250 meter)
100BASE-TX : Cat5 or later UTP(≤100 meter)
1000BASE-TX : Cat6 or later UTP(≤1000 meter)LED Indicator PWR:Power LED
SYS:(System LED)
Port:(Green=100M LED+Orange=1000M LED)Power Built-in power AC 100~240V 50/60HZ
MAX Current 0.2A
MAX Power 15WOperating
Temperature/Humidity:-20~+55°C;5%~90% RH Non coagulation Storage
Temperature/Humidity:-40~+75°C;5%~95% RH Non coagulation Product size/Packing

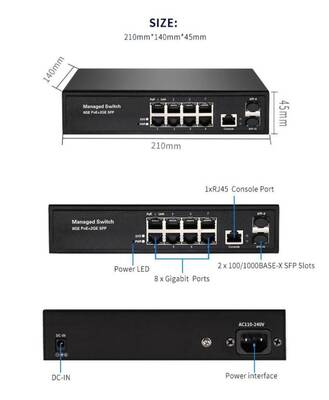

size(L*W*H)210mm*140mm*45mm
270mm*220mm*70mmN.W/G.W(kg) 1.1kg/1.4kg Installation Desktop(optional wall and machine hanger parts) Lightning protection
level3KV 8/20us;
IP30Certificate CE mark, commercial;CE/LVD EN60950;
FCC Part 15 Class B;RoHS;Warranty Whole device for 1 year(Accessories not included) Software
ParameterThe following are the main software functions, not all, if there is no function, please consult us first! / Support software development with customized requirements! Protocol
StandardIEEE 802.3x, IEEE 802.3、IEEE 802.3u、IEEE 802.3ab、IEEE 802.3z, IEEE 802.3ad, IEEE 802.3q、IEEE 802.3q/p, IEEE 802.1w、IEEE 802.1d、IEEE 802.1S、IEEE 802.1X MAC Address Support 16K MAC addresses; MAC address learning and aging VLAN Port-based VLANs
Up to 4096 VLAN
support Voice VLAN,can configure QoS for voice data
802.1Q VLANSpanning Tree STP(Spanning tree protocol)
RSTP(Rapid spanning tree protocol)
MSTP(Rapid spanning tree protocol)
EPPS(Ring network protocol)
EAPS(Ring network protocol)
802.1x argumentation agreementLink Aggregation Max 8 aggregation groups TRUNK,each supports 8 ports Port Mirror Many-to-one port mirroring Loop Guard Loop protection function, real-time detection, rapid alarm,
accurate positioning,intelligent blocking,automatic recoveryPort Isolation Support downlink ports isolated from each other and communicate with uplink port Port Flow Control Half duplex based back pressure control
Full duplex based on PAUSE frameIGMP Snooping IGMPv1/2/3 and MLDv1/2
GMRP Protocol Registration
Multicast address management, multicast VLAN,multicast
routing ports,static multicast addressesDHCP DHCP Snooping Storm Suppression Unknown unicast, multicast,unknown multicast,storm
suppression of broadcast type
Storm suppression based on bandwidth tuning and storm
filteringSecurity User port+ IP Address+ MAC Address
ACL based on IP and MAC
Security properties of port based MAC address quantitiesQOS 802.1p port queue priority algorithm
Cos/Tos,QOS sign
WRR (Weighted Round Robin),Weighted priority rotation
algorithm
WRR、SP、WFQ,3 priority scheduling modelsCable Sequence Auto-MDIX; auto identification of straight-through cables and
crossover cablesNegotiation Mode Port supports automatic negotiation ( self-negotiation
transmission rate and duplex mode)
