Overview:

ES100ENTG24F is unmanaged fast Entegron Ethernet Switch. It offers 24 ports 10/100Mbps auto negotiation port, high integration design, small and exquisite, portable, suit for medium and small office and home network. Using store and-forward technology, combined with dynamic memory allocation, ensures allocate to each port effectively. Its wire speed switching that forwards packets can be as fast as the speed that your network delivers those packets to them.

Key Features:

 ·         Comply with IEEE 802.3 10BASE-T, 802.3u 100BASE-TX standard.

 ·         All ports support 10M full/half duplex mode, 100M full/half duplex mode,

 ·         Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for half-duplex mode

 ·         Supports MAC address auto-learning and auto-aging

 ·         LED indicators for monitoring power, link, activity

 ·         Plastic case, desktop and wall-mount

 ·         External Power Adapter supply

 ·         Desktop or wall-mounting design,fanless

 ·         Plug and Play design simplifies installation

 ·         Limited lifetime protection

Specifications:

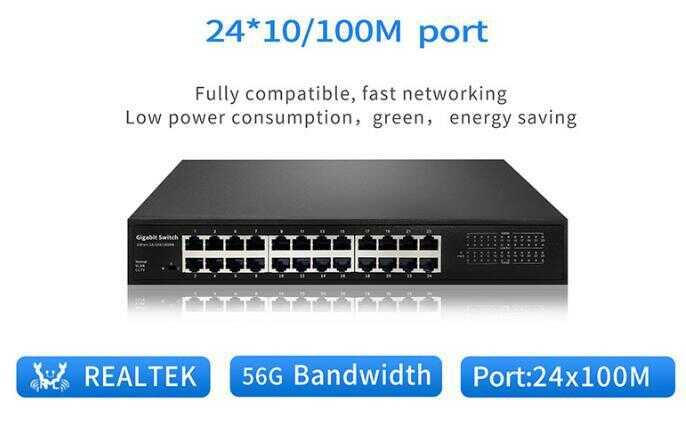

Product	24 Port Fast Entegron Ethernet Switch
Fixed Port	24*10/100Base-TX RJ45 port(Data)
Function	N:(standard normal) V:(port isolation)
Network Protocol	IEEE 802.3 IEEE 802.3i 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3x IEEE 802.1q VLAN
Port Specification	10/100BaseT（X）Auto
Transmission Mode	Store and Forward(full wirespeed)
Bandwidth	4.8Gbps
Packet Forwarding	3.45Mpps
MAC Address	2K
Buffer	1.5M
Transmission Distance	10BASE-T ： Cat3,4,5 UTP(≤250 meter) 100BASE-TX ： Cat5 or later UTP(150 meter)
Watt	Standby Power Consumption：≤10W；
LED Indicator	PWR:Power LED                                                   1-24:(Link LED=10/100M Link)
