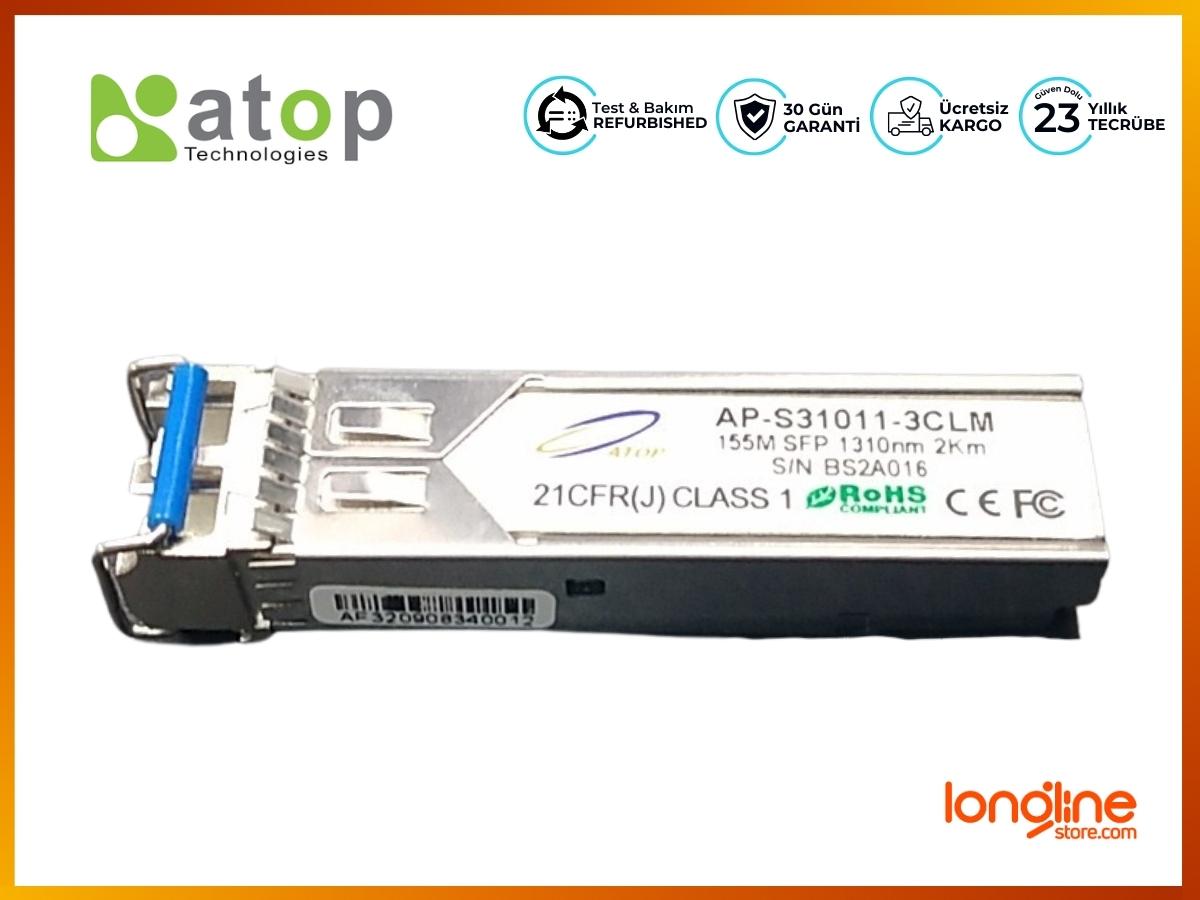

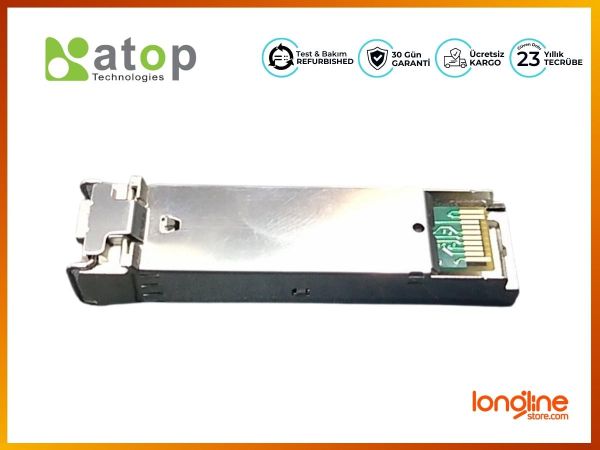

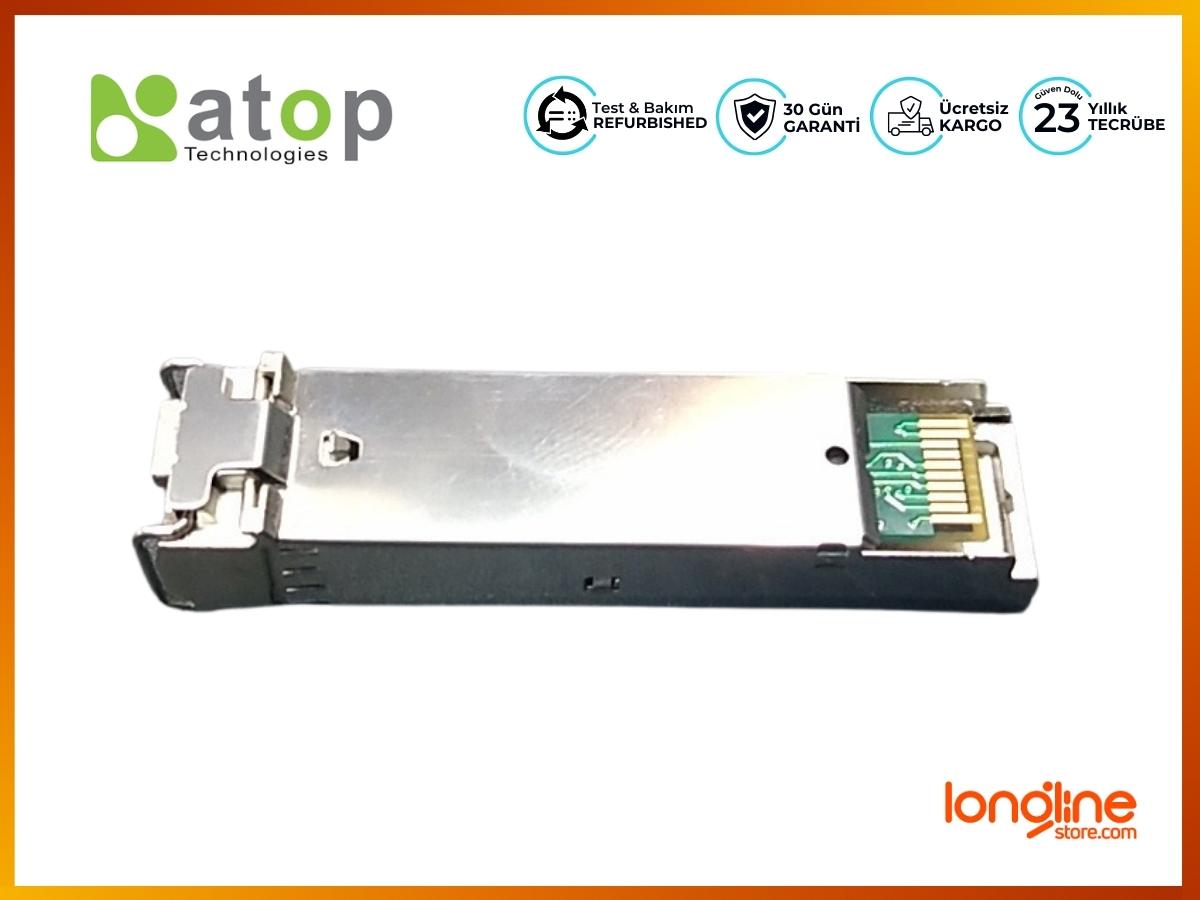

AP-S31011-3CLM 155m, 1310nm, 2km, multimode, SFP Module

Ap-s31011-3clm(cisco compatible p/n: SFP-oc3-sr)
155m, 1310nm, 2km, multimode, duplex LC connector

Atop technology Co., Ltd prodvides full range of modules for you under the best conditions.
With the adequate production capacity and total quality management, a wide variety of SFP transceivers are available with different datarate(155m, 1.25g, 2.125g, 2.5g and 4.25g) and transmission distance(from 550m to 120km). As for atop's SFP with 155m datarate, both singlemode and multimode are available(2km-60km).
Details about one Model of atop's SFP transceiver here.

Ap-s31011-3cxlm

Product features
Up to 155MB/s data links
Hot-pluggable SFP footprint
1310nm fabry-perot laser transmitter
Duplex LC connector
RoHS compliant and lead free
Up to 2 km on mmf
Metal enclosure for lower EMI
Single 3.3v power supply
Low power dissipation <600mw
Commercial operating temperature range: 0 centigrade to 70 centigrade

Applications
Sdh/stm-1, sonet/oc-3
Fast ethernet

Genenal
Atop's ap-s85011-3cxlm small form factor pluggable (SFP) transceivers are compatible with the small form factor pluggable multi-sourcing agreement (msa). They simultaneously comply with megabit ethernet as specified in IEEE std 802.3 and 1x fibre channel as defined in fc-pi-2 rev. 10.0. They are RoHS compliant and lead-free.
