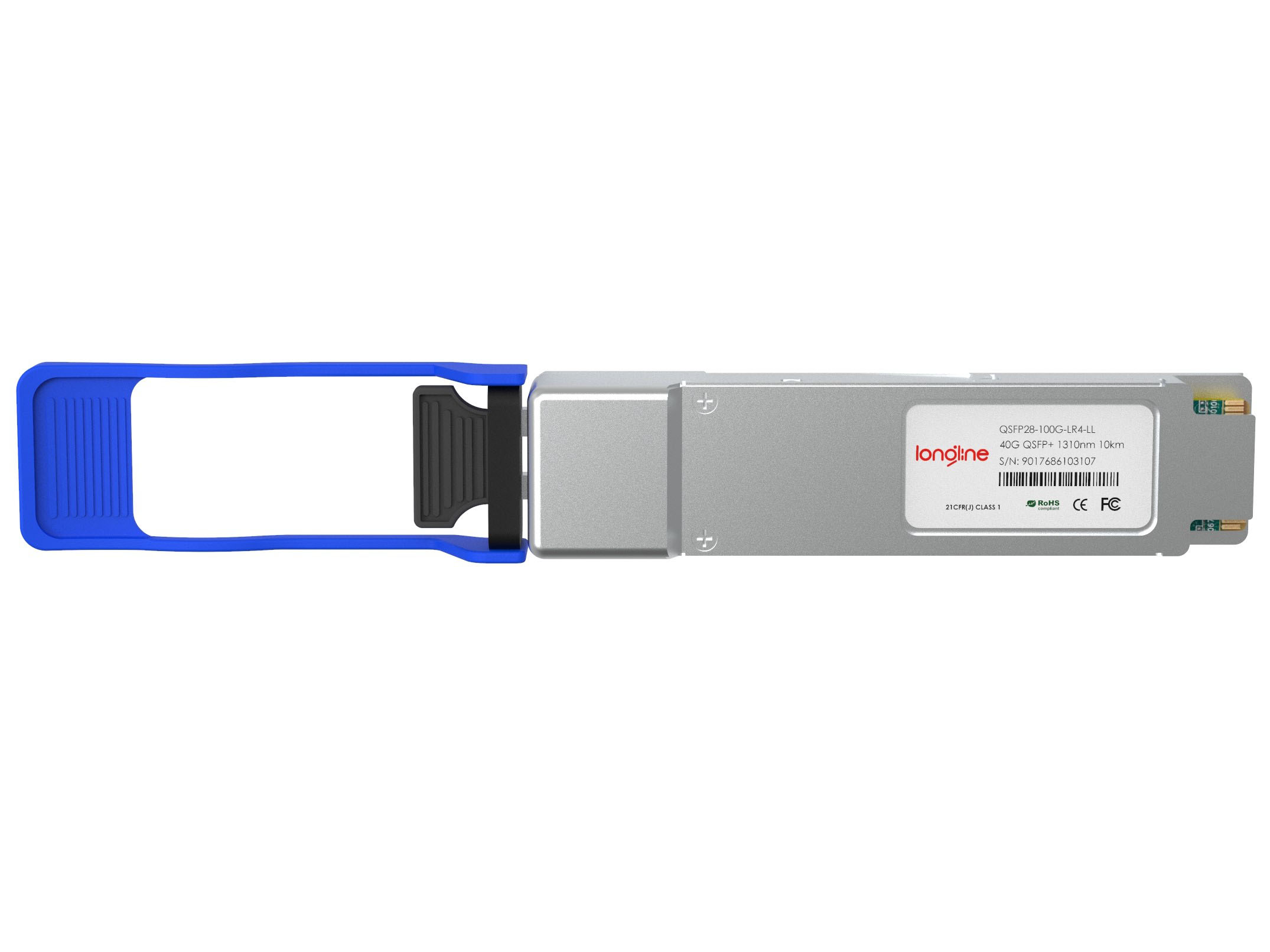

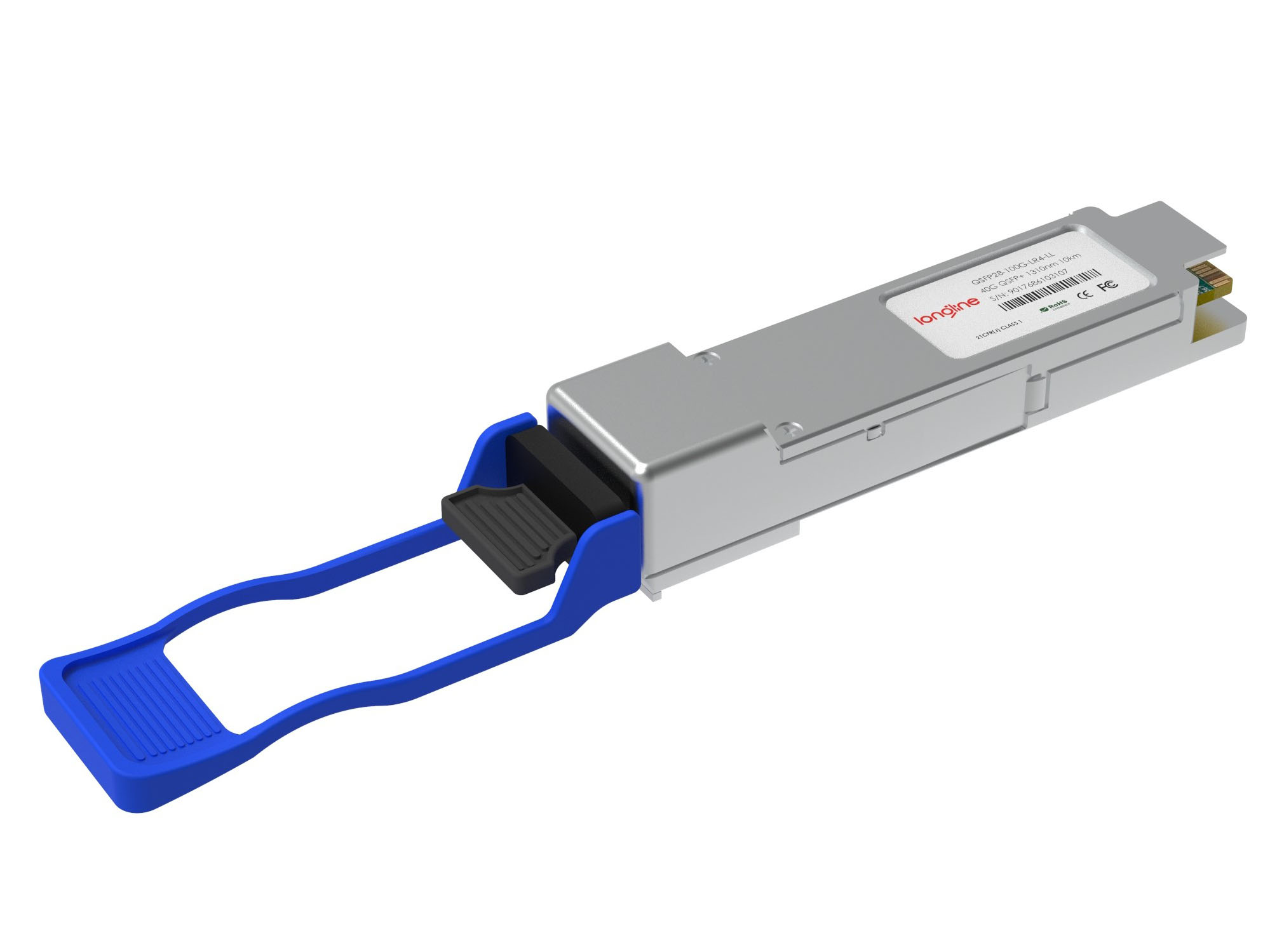

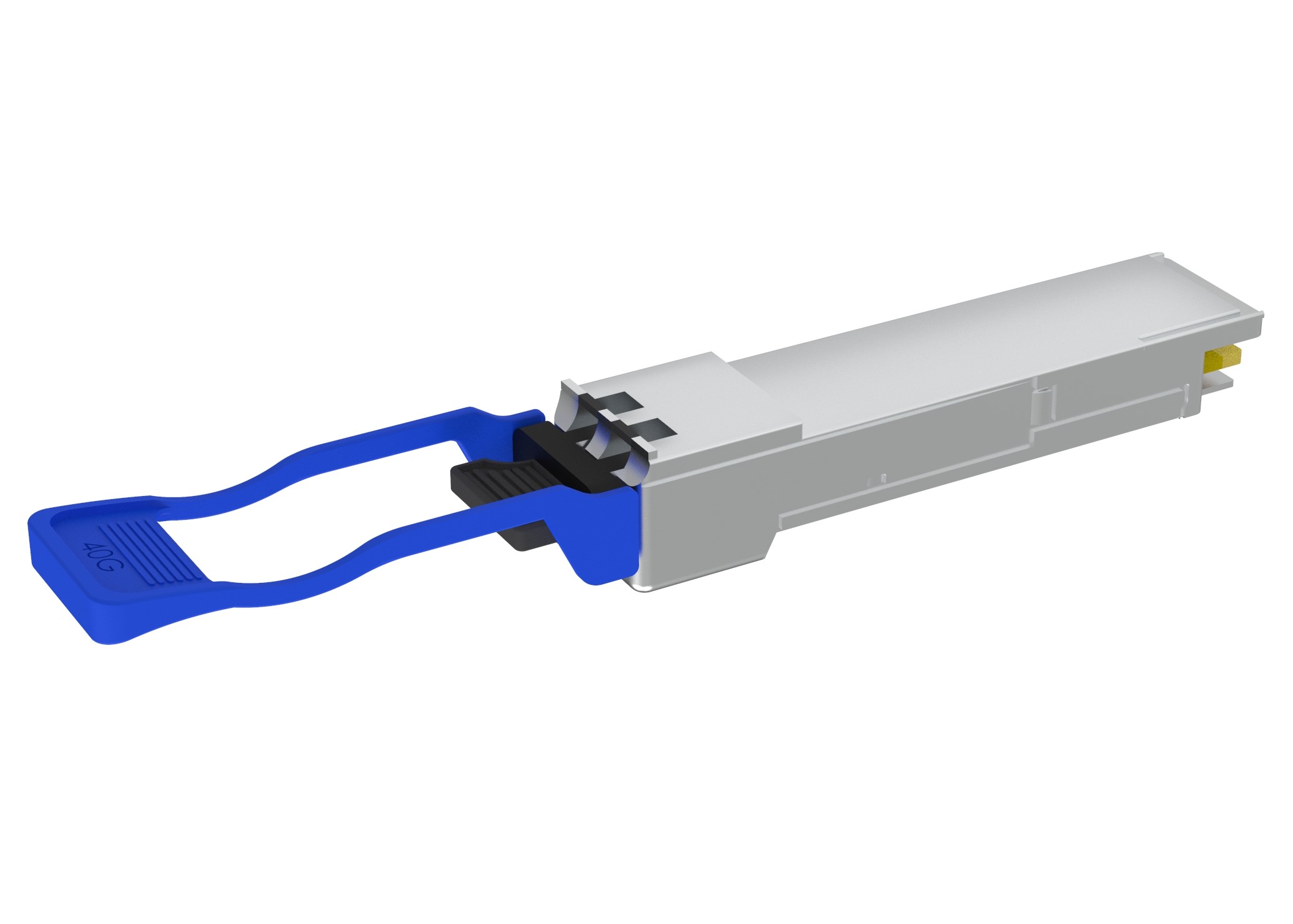

  • Alcatel-Lucent QSFP28-100G-LR4-LL Compatible 100GBASE-LR4 QSFP28 Optical Transceiver Module (SMF, 1310nm, 10km, LC, DOM)

    The QSFP28 module provides 100GBase-LR4 throughput up to 10km over a standard pair of single mode fiber (SMF) with duplex LC connectors. This transceiver is compliant with IEEE 802.3ba 100GBASE-LR4, IEEE 802.3bm, SFF-8665 and SFF-8636 standards. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP28 MSA, to allow access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as 100G telecom connections, data center, high-performance computing networks, enterprise core and distribution layers, campus networks etc.

    Specifications
       Alcatel-Lucent Compatible QSFP28-100G-LR4-LL Vendor Name Longline
       Form Factor QSFP28 Max Data Rate 103.125Gbps (4x 25.78Gbps)
       Wavelength 1310nm Max Cable Distance 10km
       Connector Duplex LC Media SMF
       Transmitter Type 4 x LAN WDM EML Receiver Type PIN
       TX Power -4.3~4.5dBm Receiver Sensitivity <-11.1dBm
       Powerbudget 6.3dB Receiver Overload 4.5dBm
       Power Consumption ≤3.5W Extinction Ratio >4dB
       DDM/DOM Supported Commercial Temperature Range 0 to 70°C (32 to 158°F)
       Modulation Format NRZ CDR TX & RX Built-in CDR
       Protocols IEEE 802.3ba, QSFP+ MSA, SFF-8436 Warranty
    2 Years


    Ürün Özellikleri
    Kondisyon
    :
    NEW
    Sfp Maksimum Erişim
    :
    10km
    Sfp Compatible
    :
    Alcatel-Lucent
    Sfp Connector
    :
    LC duplex
    Sfp Wavelength
    :
    1310nm
    Sfp Form Factor
    :
    QSFP28
    Sfp Veri Hızı
    :
    100G
