LONGLINE  - LNG-8110GSA-11-20-AS

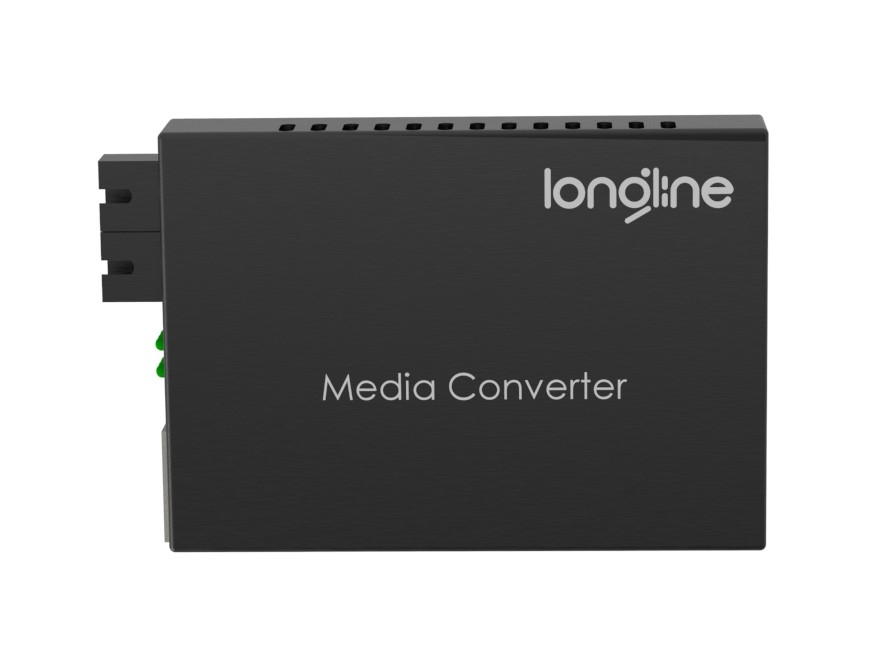

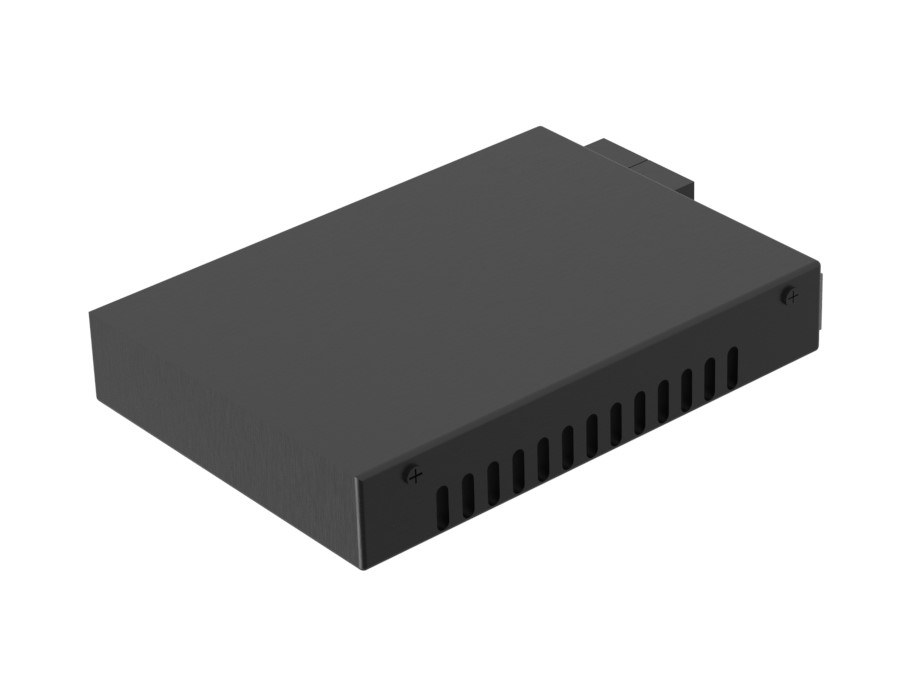

Longline 10/100/1000M 1310NM SM 20KM SC Media Converter LNG-8110GSA-11-20-AS

472 ₺ + KDV
ayni-gun-kargo (1).png (23 KB)
Kampanya

%100 GÜVENLİ ALIŞVERİŞ

Güvenilir E-Ticaret Platformu

ÜCRETSİZ KARGO

Tüm Ürünlerde Ücretsiz Kargo Fırsatı

KOLAY İADE

14 gün içinde iade hakkı

AYNI GÜN KARGO

Saat 10.00'a Kadar Verilen Siparişler Aynı Gün Kargoda
  • Ürün Özellikleri
  • Ödeme Seçenekleri
  • Yorumlar (0)
  • Tavsiye Et
  • Longline 10/100/1000M 1310Nm Sm 20Km Sc Media Converter LNG-8110GSA-11-20-AS



    1    Introduction

    10/100/1000M adaptive fast Ethernet optical Media Converter is a new product used for optical transmission via high-speed Ethernet. It is capable of switching between twisted pair and optical and relaying across 10/100 Base-TX/1000 Base-Fx and 1000Base-FX network segments, meeting long-distance, high-speed and high-broadband fast Ethernet workgroup users’ needs, achieving high-speed remote interconnection for up to 100 km's relay-free computer data network. With steady and reliable performance, design in accordance with Ethernet standard and lightning protection, it is particularly applicable to a wide range of fields requiring a variety of broadband data network and high-reliability data transmission or dedicated IP data transfer network, such as telecommunication, cable television, railway, military, finance and securities, customs, civil aviation, shipping, power, water conservancy and oilfield etc, and is an ideal type of facility to build broadband campus network, cable TV and intelligent broadband FTTB/FTTH networks.



    2    Overview



    2.1 Features



    ·         In accordance with Ethernet standards IEEE802.3, 10/100Base-TX/1000Base-TX and 1000Base-FX

    ·         Supported Ports: SC for optical fiber; RJ45 for twisted pair

    ·         Auto-adaptation rate and full/half-duplex mode supported at twisted pair port

    ·         Auto-negotiation and speed autosensing

    ·         Auto MDI/MDIX supported without need of cable selection

    ·         Up to 6 LEDs for status indication of optical power port and UTP port

    ·         External and built-in DC power supplies provided

    ·         Up to 1024 MAC addresses supported

    ·         512 kb data storage integrated, and 802.1X original MAC address authentication supported

    ·         Conflicting frames detection in half-duplex and flow control in full duplex supported



    2.2 Technical Parameters



    Technical Parameters for 10/100/1000M Adaptive Fast Ethernet Optical Media Converter
    Number of Network Ports 1 channel
    Number of Optical Ports 1 channel
    NIC Transmission Rate 10/100/1000Mbit/s
    NIC Transmission Mode 10/100/1000M adaptive with support for automatic inversion of MDI/MDIX
    Optical Port Transmission Rate 1000Mbit/s
    Operating Voltage AC 220V or DC +5V
    Overall Power <3W
    Network Ports RJ45 port
    Network Ports Optical Port: SC, FC,ST (Optional) Multi-Mode: 50/125, 62.5/125um Single-Mode: 8.3/125, 8.7/125um, 8/125,10/125um Wavelength: Single-Mode: 1310/1550n
    Data Channel IEEE802.3x and collision base backpressure supported
    Working Mode: Full/half duplex supported Transmission Rate:
    1000Mbit/s



    Description Fiber mode Connector Wavelength Distance   TX power(dbm) RX power(dhm)
    LNG-8110GMA11-05-AS Multimode dual fiber SC 850nm 550m 17~-12 <<-20.0
    LNG-8110GMA11-2-AS Multimode dual fiber SC 1310nm 2 Km 17~-12 <<-20.0
    LNG-8110GSA11-10-AS Singlemode dual fiber SC 1310nm 10 Km -6~-12 <<-21.0
    LNG-8110GSA11-20-AS Singlemode dual fiber SC 1310nm 20 Km -3~-8 <<-23.0
    LNG-8110GSA11-40-AS Singlemode dual fiber SC 1550nm 40 Km -3~-0 <<-25.0
    LNG-8110GSA11-60-AS Singlemode dual fiber SC 1550nm 60 Km
    LNG-8110GSA11-80-AS Singlemode dual fiber SC 1550nm 80 Km >>1 <<-27.0
    LNG-8110GSB11-10A/BAS Singlemode dual fiber SC Aside:Tx1310nm/Rx1550nm Bside:Tx1550nm/Rx1310nm 10 Km -10~-5 <<-20.0
    LNG-8110GSB11-20A/BAS Singlemode dual fiber SC Aside:Tx1310nm/Rx1550nm Bside:Tx1550nm/Rx1310nm 20 Km -8~-5 <<-23.0
    LNG-8110GSB11-40A/BAS Singlemode dual fiber SC Aside:Tx1310nm/Rx1550nm Bside:Tx1550nm/Rx1310nm 40 Km -3~0 <<-23.0
    LNG-8110GSB11-60A/BAS Singlemode dual fiber SC Aside:Tx1310nm/Rx1550nm Bside:Tx1550nm/Rx1310nm 60 Km -3~0 <<-23.0



    3.   Operating Environment



    3.1 Operating Voltage



    AC 220V/ DC +5V 3.2



    3.2 Operating Humidity



    Operating Temperature:     0 ℃ to +55 ℃

    Storage Temperature:     -20 ℃ to +70 ℃

    Humidity:     5% to 90%



    4. Quality Assurance



    MTBF > 100,000 hours;

    Replacement within one year and non-charge repair within three years guaranteed



    5. Application Fields



    ·          For intranet prepared for expansion from 100M to 1000M

    ·          For integrated data network for multimedia such as image, voice and etc.

    ·          For point-to-point computer data transmission

    ·          For computer data transmission network in a wide range of business application

    ·          For broadband campus network, cable TV and intelligent FTTB/FTTH data tape

    ·       In combination with switchboard or other computer network facilitates for: chain-type, star-type and ring-type network and other computer networks



    6. Remarks and Notes

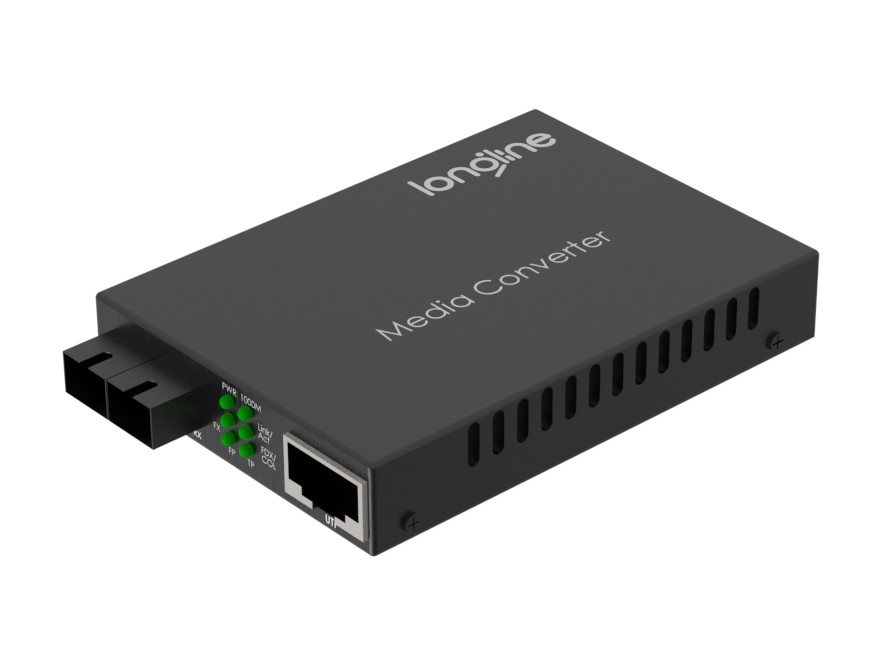

    6.1 Instructions on Media Converter Panel



    a)    Identification of Media Converter

    TX - transmitting terminal; RX - receiving terminal;



    b)    PWR

    Power Indicator Light – “ON” means normal operation of DC 5V power supply adaptor.



    c)    1000M Indicator Light

    “ON” means the rate of the electric port is 1000 Mbps, while “OFF” means the rate is 100 Mbps



    d)    LINK/ACT (FP)

    “ON” means connectivity of the optical channel; “FLASH” means data transfer in the channel; “OFF” means non-connectivity of the optical channel.



    e)    LINK/ACT (TP)

    “ON” means connectivity of the electric circuit; “FLASH” means data transfer in the circuit; “OFF” means non-connectivity of the electric circuit.



    f)     SD Indicator Light

    “ON” means input of optical signal; “OFF” means non input.



    g)    FDX/COL
    “ON” means full duplex electric port; “OFF” means half-duplex electric port.



    h)    UTP
    Non-shielded twisted pair port;
    Instructions on Rear Panel



    Ürün Özellikleri
    Kondisyon
    :
    NEW
    Media Converter Wavelength
    :
    1310 nm
    Media Converter Fiber Mode
    :
    Dual Fiber
    Media Converter Tipi
    :
    Single Mode
    Media Converter Fiber Connector
    :
    SC
    Media Converter Uzaklık
    :
    20 km
    Media Converter Hız
    :
    1G
