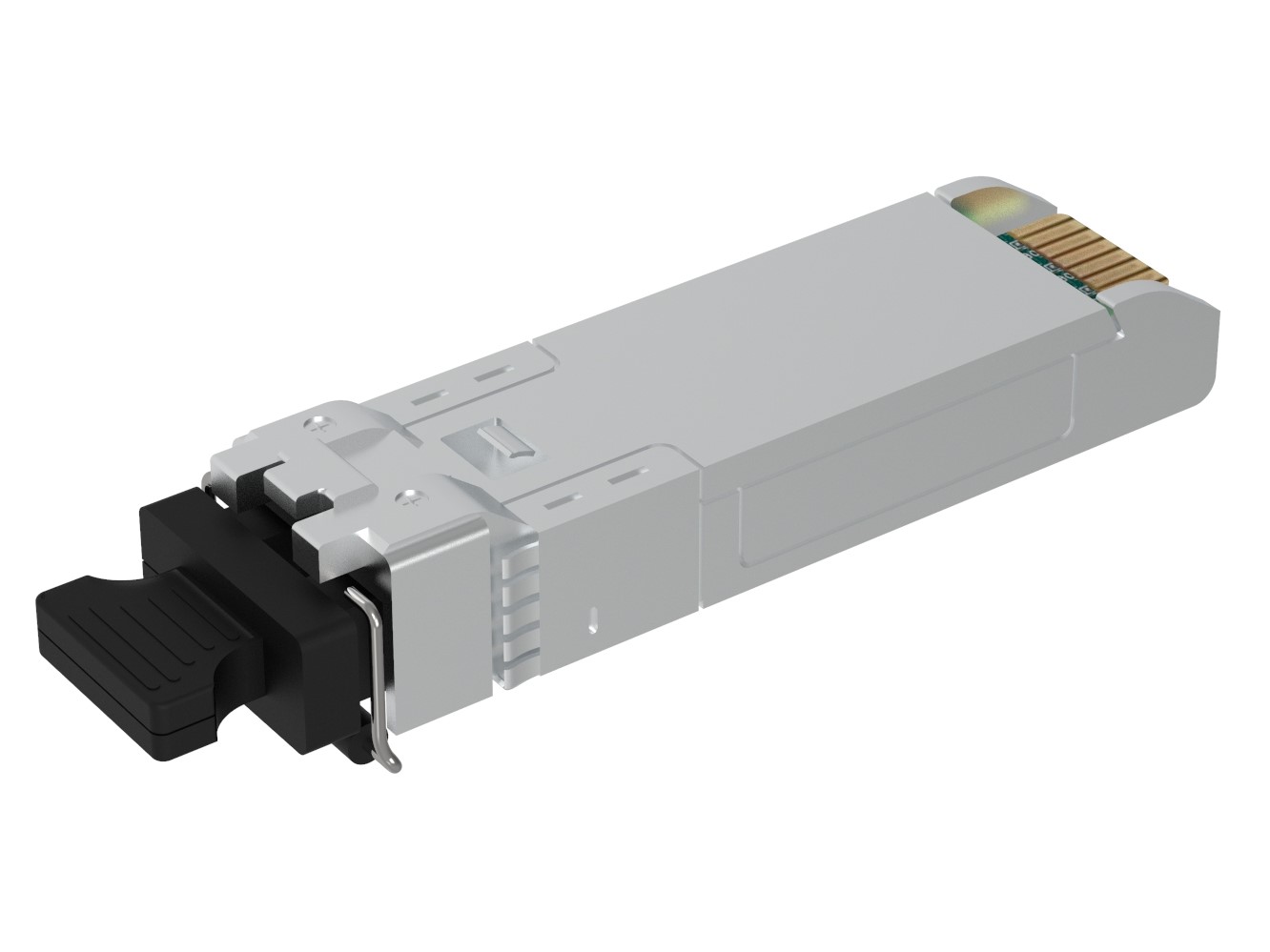

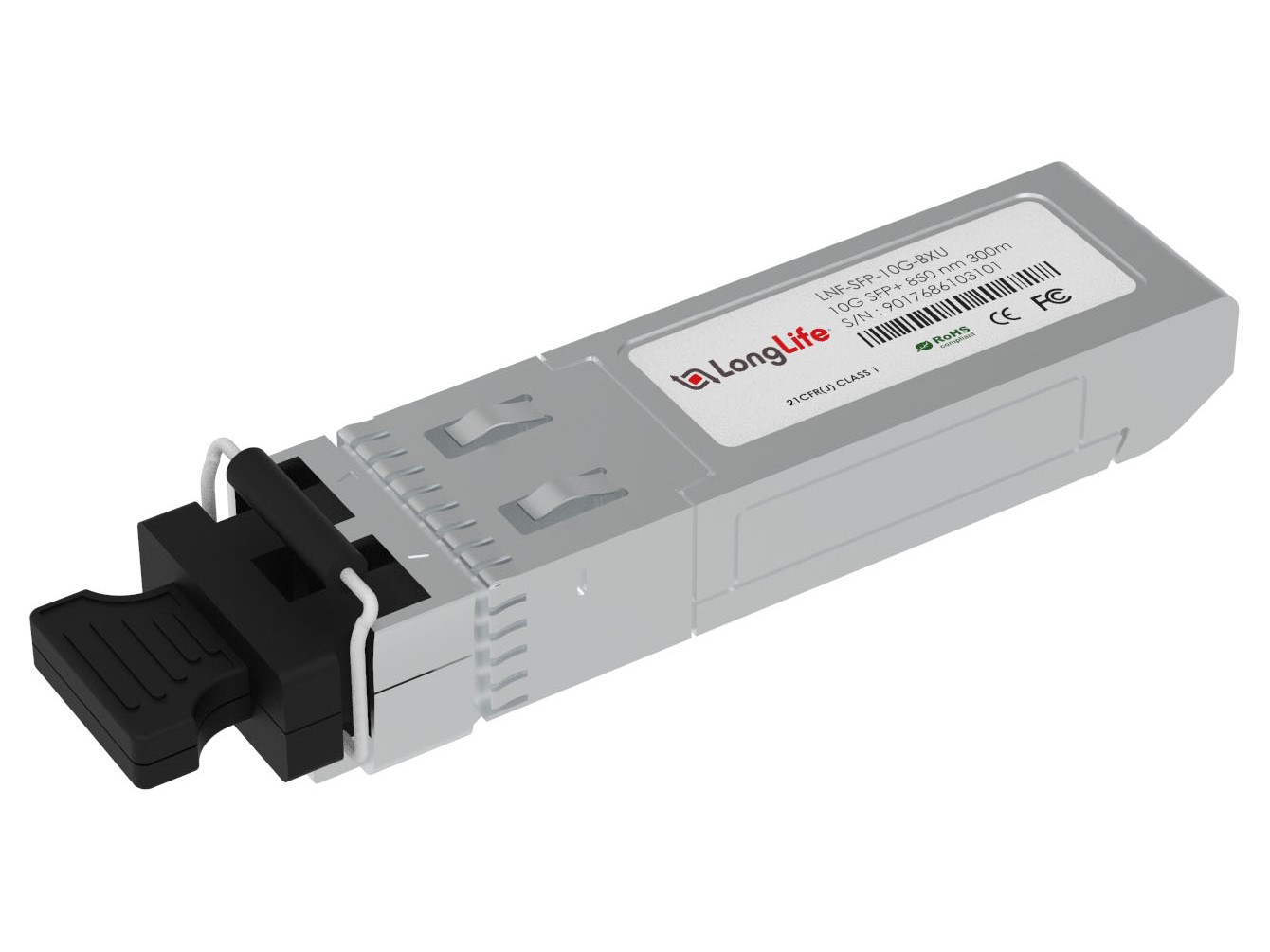

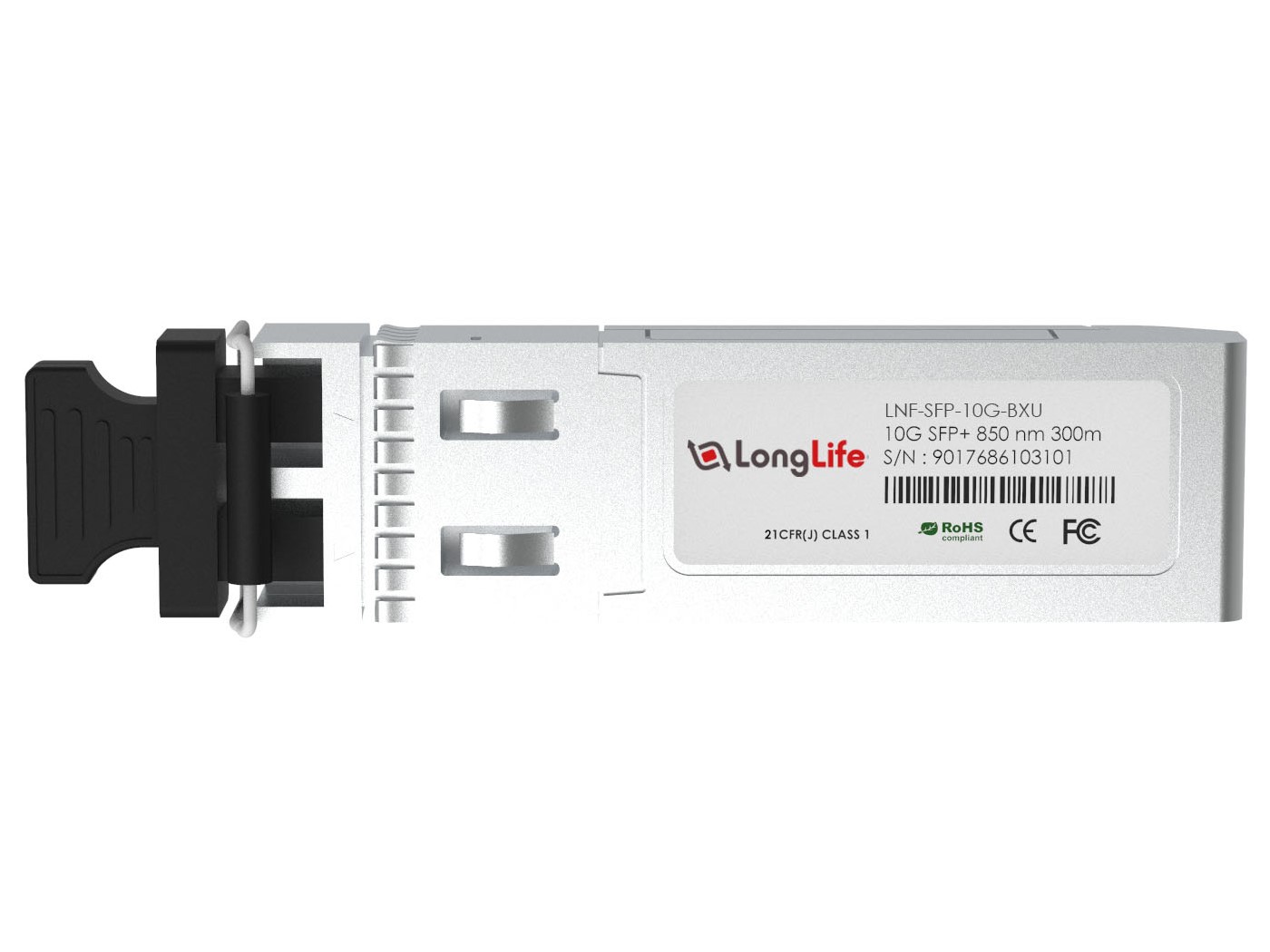

Cisco SFP-10G-BXU-LL compatible SFP+ transceiver supports up to 10km link lengths over OS2 SMF via an LC simplex connector. Digital diagnostics can also be used through the I2C interface designated by SFF-8472 to allow access to real-time operating parameters. Each BIDI SFP+ transceiver module is individually tested to be used on a series of Cisco switches, routers, servers, network interface cards (NICs) etc.Featuring low power consumption and high speed, this 10G BIDI SFP+ transceiver is ideal for enterprise wiring closets, service provider transport applications, Radio & Baseband Units, etc.
Specifications
| Cisco Compatible | SFP-10G-BXU-LL | Vendor Name | Longline |
| Form Factor | SFP+ | Max Data Rate | 11.3168Gbps |
| Wavelength | 1270nm-TX/1330nm-RX | Max Cable Distance | 10km |
| Connector | Simplex LC | Media | SMF |
| Transmitter Type | DFB | Receiver Type | PIN |
| TX Power | -8.2~0.5dBm | Receiver Sensitivity | < -14.4dBm |
| Powerbudget | -8.2~0.5dBm | Receiver Overload | 0.5dBm |
| Typical Power Consumption | 3.0dBm | Extinction Ratio | >3.5dB |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) | Protocols | SFP+ MSA Compliant, CPRI, eCPRI |
