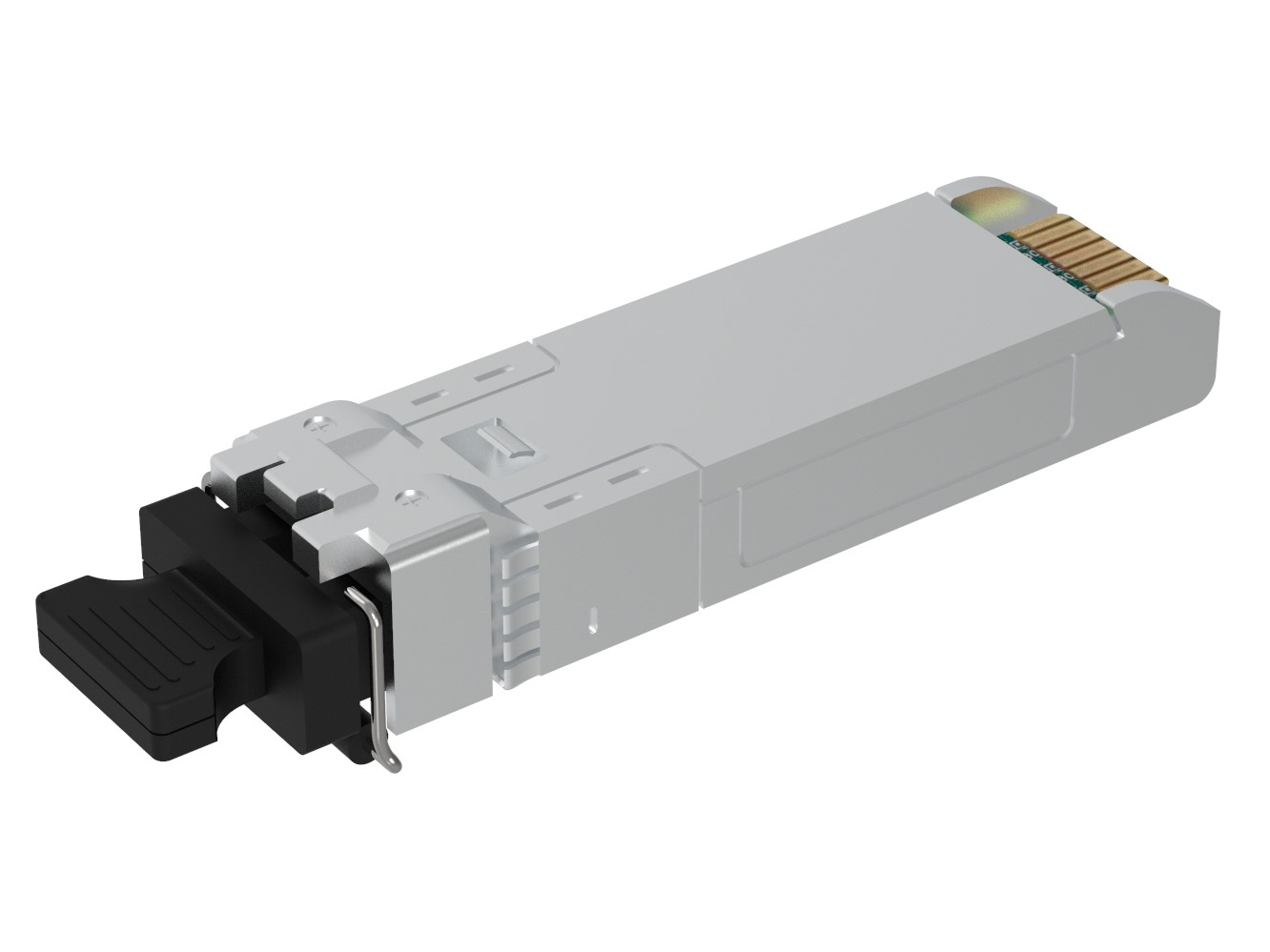

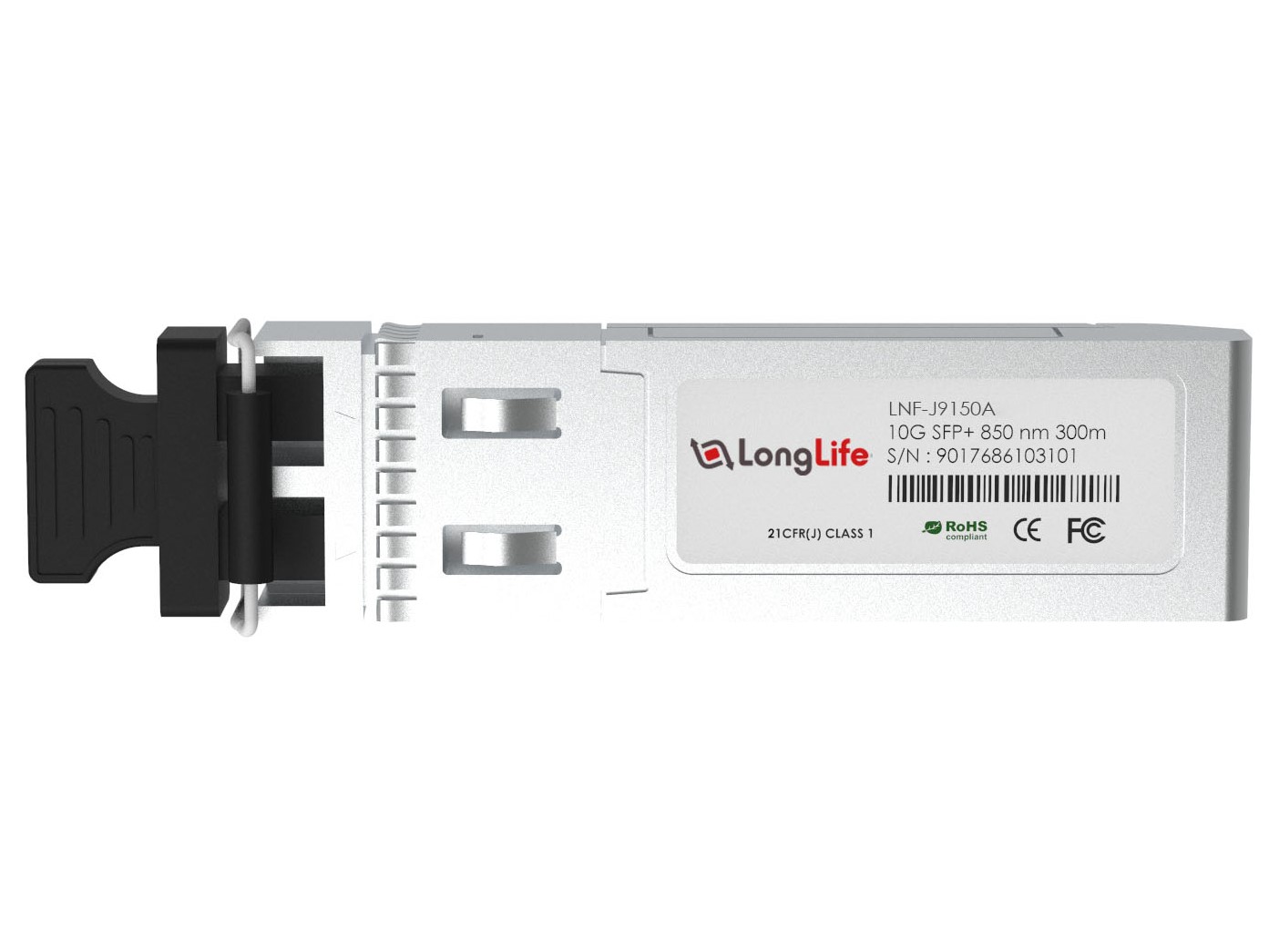

LNF-J9150A HPE ProCurve compatible SFP+ transceiver supports up to 400m link lengths over OM4 MMF (300m over OM3 MMF) via an LC duplex connector. This transceiver is compliant with SFF-8431, SFF-8432 and IEEE 802.3ae standards. Digital diagnostics monitoring is available via a 2-wire serial interface, as specified in SFF-8472. Featuring low power consumptionand and high speed, this 10G SFP+ transceiver is ideal for data centers, enterprise wiring closets, service provider transport applications, Radio & Baseband Units, etc.
Specifications
| HPE ProCurve Compatible | LNF-J9150A | Vendor Name | Longlife |
| Form Factor | SFP+ | Max Data Rate | 10.3125Gbps |
| Wavelength | 850nm | Max Cable Distance | 300m@OM3/400m@OM4 |
| Connector | Duplex LC | Media | MMF |
| Transmitter Type | VCSEL | Receiver Type | PIN |
| TX Power | -7.3~-1dBm | Receiver Sensitivity | < -11.1dBm |
| Powerbudget | 3.8dB | Receiver Overload | 0.5dBm |
| Typical Power Consumption | ≤0.6W | Extinction Ratio | >3dB |
| DDM/DOM | Supported | Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| Protocols | IEEE 802.3ae, SFF-8472, SFF-8431, SFF-8432 | Warranty | 2 Years |
