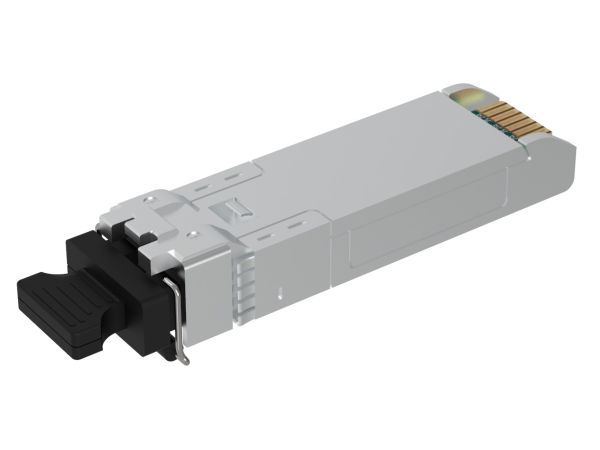

Cisco LNF-GLC-SX-MM Compatible 1000BASE-SX SFP Transceiver Module (MMF, 850nm, 550m, LC, DOM)
Cisco LNF-GLC-SX-MM compatible SFP transceiver supports up to 550m link lengths over multi-mode fiber (MMF) using a wavelength of 850nm via an LC connector. Each SFP transceiver module is individually tested to be used on a series of Cisco switches, routers, servers, network interface card (NICs) etc.
Featuring low power consumption, the hot swappable 1G SFP transceiver is ideal for Internet Service Provider (ISP) Gigabit Ethernet communication links, Enterprise LAN & SAN Networks, Data Center LAN & SAN Networks and other optical linksSpecifications Cisco CompatibleLNF-GLC-SX-MM Vendor Name Longlife Form Factor SFPMax. Data Rate 1.25Gbps Wavelength850nm Max. Cable Distance 550m@50/125µm OM2 MMF
275m@62.5/125µm OM1 MMF
220m@62.5/125µm FDDI MMFConnector Duplex LC Media MMF Transmitter Type VCSEL Receiver Type PIN DDM/DOM Supported Commercial Temperature Range 0 to 70°C (32 to 158°F) TX Power -9.5 ~ - 3dBm Receiver Sensitivity < -17dBm Typical Power Consumption ≤0.8w Receiver Overload -3dBm Bit Error Ratio (BER) 1,00E-12 Extinction Ratio >9dB EMC Supported MTBF (SX) 2,457,002 Hours Protocols IEEE 802.3z, SFF-8472, SFP MSA (INF-8074i) Warranty 2 Years
Ürün ÖzellikleriKondisyon:NEWSfp Maksimum Erişim:550mSfp Compatible:CiscoSfp Connector:Duplex LCSfp Wavelength:850nmSfp Form Factor:SFPSfp Veri Hızı:1G
