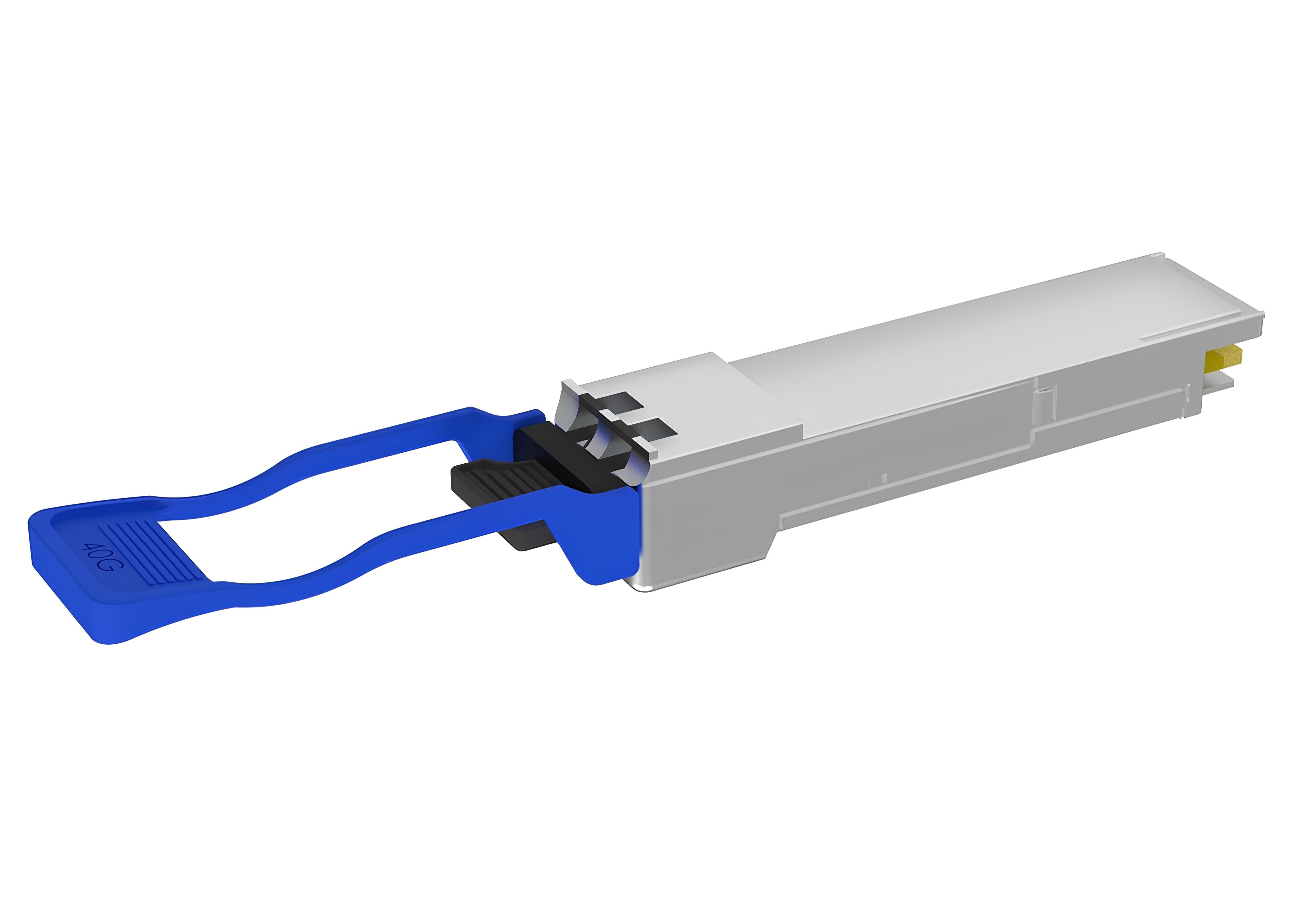

Longlife LNF-40GBSMMPO Compatible 40GBASE-PLR4 QSFP+ Optical Transceiver Module (SMF, 1310nm, 10km, MTP/MPO, DOM)
The QSFP+ module is designed for use in 40GBASE Ethernet throughput up to 10km over single mode fiber (SMF) using a wavelength of 1310nm via a MTP/MPO connector. It provides high-density and low-power 40GBASE Ethernet solution for data centers, high-performance computing networks, enterprise core and distribution layer applications. It is fully compliant with the QSFP+ MSA.
Note: If this transceiver needs to be used to break out one 40G signal into 4x 10G signals, the interface of the device is required to support the breakout feature.
Specifications Networks Compatible LNF-40GBSMMPO Vendor Name Longlife Form Factor QSFP+ Max Data Rate 44.4GbpsWavelength 1310nm Max Cable Distance 10km Connector MTP/MTO-12 Male Media SMF Transmitter Type 4x DFB Receiver TypePINTX Power -6~-1dBmReceiver Sensitivity<-14.4dBmPowerbudget 8.4dB Receiver Overload0.5dBmPower Consumption ≤2.5WExtinction Ratio>4.5dB Host FEC Supported Bit Error Ratio (BER)1,00E-12Commercial Temperature Range 0 to 70°C (32 to 158°F)Protocols40G Ethernet, MSA CompliantÜrün ÖzellikleriKondisyon:NEWSfp Form Factor:QSFP+Sfp Veri Hızı:40GSfp Wavelength:1310nmSfp Compatible:GenericSfp Connector:MTP/MPO-12 MaleSfp Maksimum Erişim:10km
