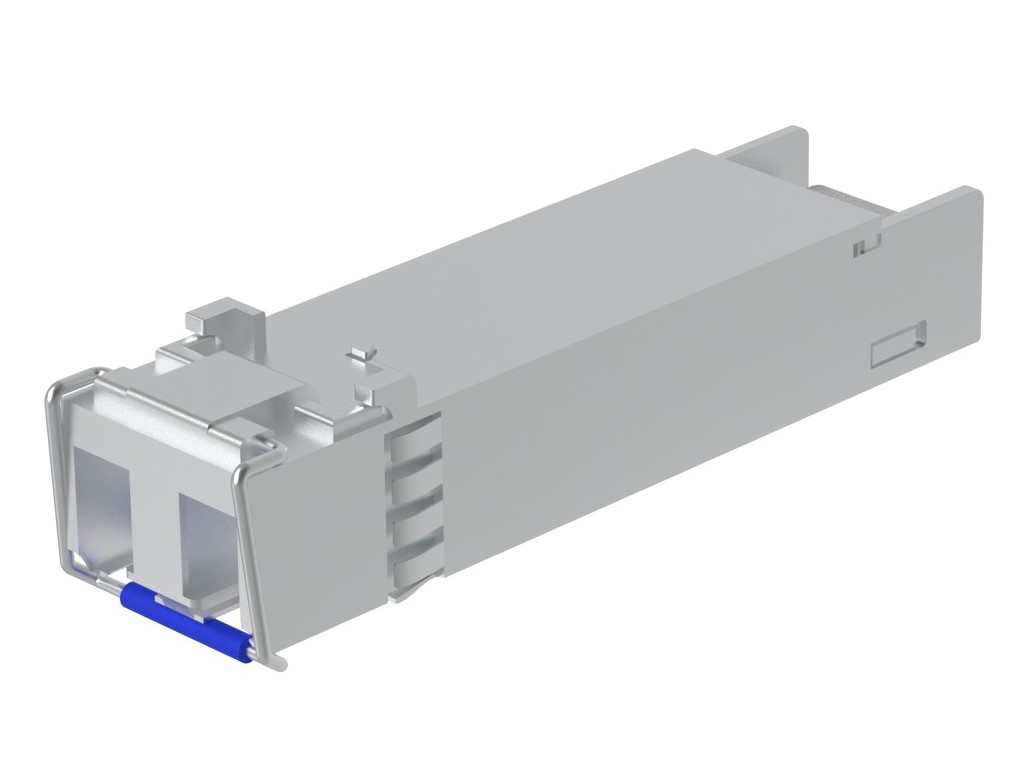

SonicWall LNF-01-SSC-9789 Compatible 1000BASE-SX SFP Fiber Module (MMF, 850nm,550m, LC, DDM)
This 1000BASE-SX SFP fiber module is equivalent to SonicWall part number LNF-01-SSC-9789, and suitable for use with SonicWall network equipment. It is programmed and tested at the factory to ensure working with SonicWall firewall and other network security equipment. The module can be mixed and deployed with OEM transceivers for seamless network performance and interoperability. It supports data-rate of 1.25Gbps, providing connectivity for up to 0.5km over multimode fiber cable.
Specifications
| Part Number | LNF-01-SSC-9789 | Vendor Name | Longlife |
| Form Factor | SFP | Max. Data Rate | 1.25Gbps |
| Wavelength | 850nm | Max. Cable Distance | 550m over OM2 MMF |
| Connector | Duplex LC | Optical Components | VCSEL/PIN |
| Transmitter Power | -9 ~ -3 dBm | Extinction ratio | > 9 dB |
| Environment | Operating: 0°C to 70°C Storage: -40°C to 85°C | Receiver Overload | > 0 dBm |
| Digital Diagnostic Monitoring | Yes | Media | MMF |
