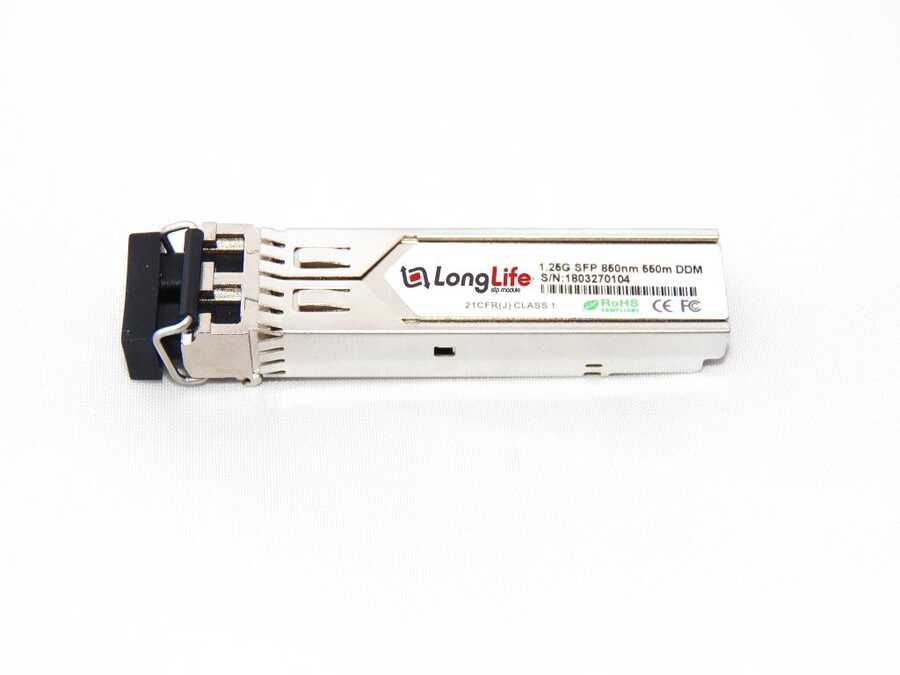

Cisco GLC-SX-MM compatible SFP transceiver supports up to 550m link lengths over multi-mode fiber (MMF) using a wavelength of 850nm via an LC connector. Each SFP transceiver module is individually tested to be used on a series of Cisco switches, routers, servers, network interface card (NICs) etc.
Featuring low power consumption, the hot swappable 1G SFP transceiver is ideal for Internet Service Provider (ISP) Gigabit Ethernet communication links, Enterprise LAN & SAN Networks, Data Center LAN & SAN Networks and other optical links.
Specifications
| Compatible | GLC-SX-MM-RGD | Vendor Name | Longline |
| Form Factor | SFP | Max. Data Rate | 1.25Gbps |
| Wavelength | 850nm | Max. Cable Distance | 550m over OM2 MMF |
| Connector | Duplex LC | Optical Components | VCSEL 850nm |
| Media | MMF | DOM Support | Yes |
| TX Power | -9.5 ~ - 3dBm | Receiver Sensitivity | < -17dBm |
Industrial Temperature Range | 40 to 85°C (-40 to 185°F) | Protocols | IEEE 802.3z, SFF-8472, FC-PI, SFP MSA (INF-8074i) Compliant |
