LEICA - LEICA PT1203 TRACKER-Mna950 Receiver-Redline MCP95

LEICA PT1203 TRACKER-Mna950 Receiver-Redline MCP950C-GKL221 Charger-GRT246 Carrier-GHT56 Holder Set

Name: LEICA PT1203 TRACKER-Mna950 Receiver-Redline MCP950C-GKL221 Charger-GRT246 Carrier-GHT56 Holder Set
Brand: LEICA
SKU: T8480
Availability: InStock

0 ₺

Tavsiye Et Yorum Ekle Fiyat Alarmı Alışveriş Listeme Ekle

Sepete Ekle

Hemen Al

%100 GÜVENLİ ALIŞVERİŞ

Güvenilir E-Ticaret Platformu

ÜCRETSİZ KARGO

Tüm Ürünlerde Ücretsiz Kargo Fırsatı

KOLAY İADE

14 gün içinde iade hakkı

AYNI GÜN KARGO

Saat 10.00'a Kadar Verilen Siparişler Aynı Gün Kargoda

Ürün Özellikleri
Ödeme Seçenekleri
Yorumlar (0)
Tavsiye Et

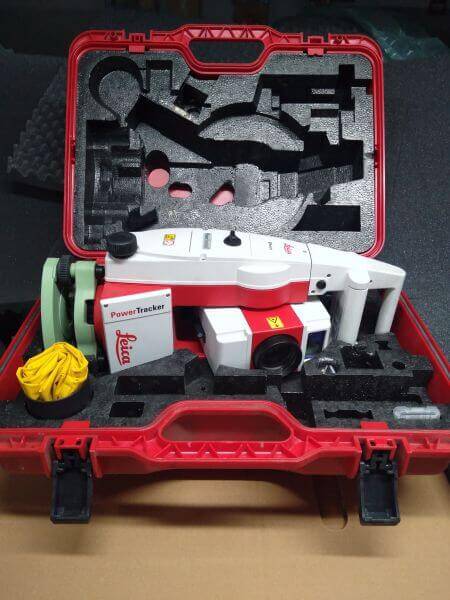

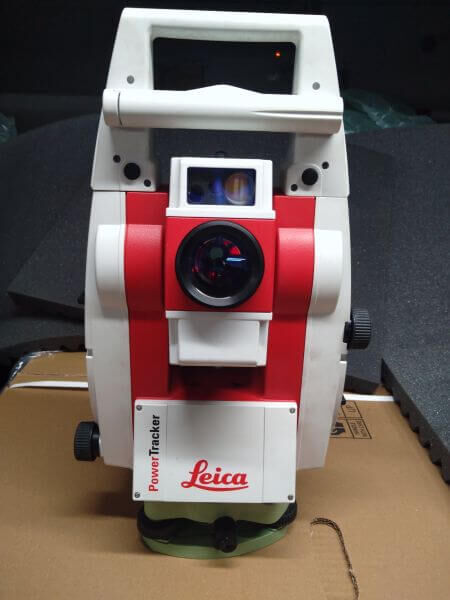

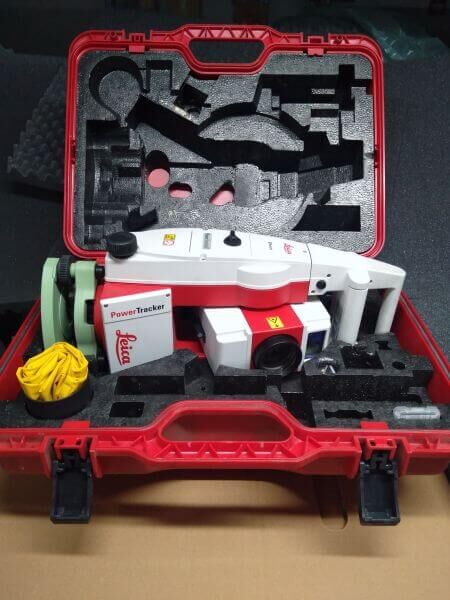

LEICA POWER TRACKER PT1203 TOTAL STATION

Angle measurement
Distance measurement (IR-Mode)
PinPoint reflectorless dist. measurem. (RL-Mode)
Motorized Automatic Target Recognition (ATR)
PowerSearch (PS)
Guide Light (EGL)
Remote Control Unit / RadioHandle
GUS74 Laser Guide

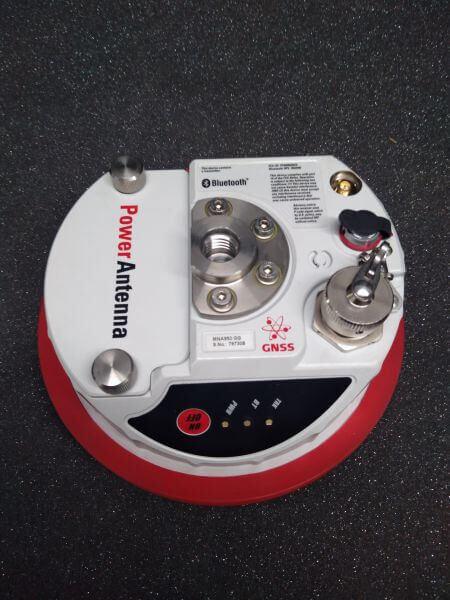

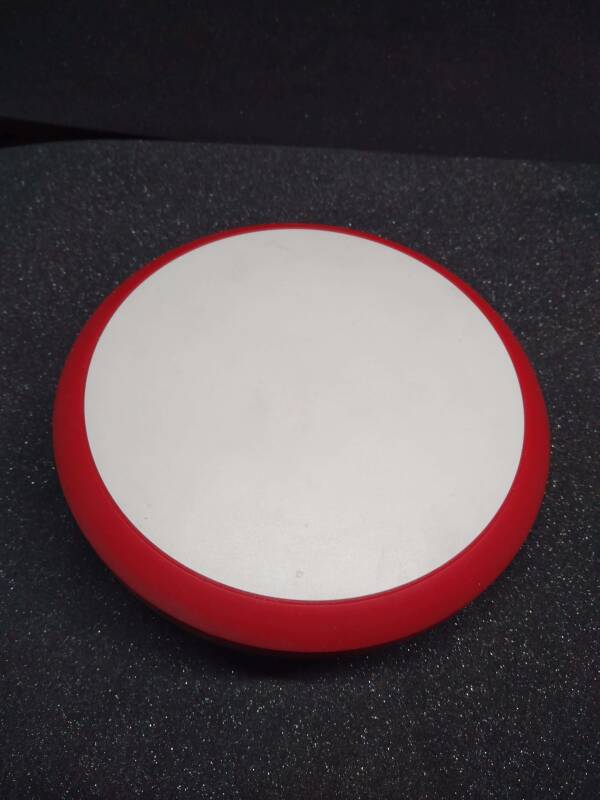

Leica Mna950 GG GPS Receiver

Specifications:

GNSS technology	SmartTrack+ dual frequency 14 L1 + 14 L2 GPS 12 L1 + 12 L2 GLONASS
RTK Technology	SmartCheck+, for advanced, long range RTK with 99.99% Reliability
Kinematic RTK Accuracy (phase), after initialisation	Horizontal: 10 mm + 1 ppm Vertical: 20 mm + 1 ppm
Power Supply	Li-Ion 2.2 Ah / 7.4 V for Pole Solution (last for 5 h). Ni-MH 9.0 Ah / 12V for reference setup. On-machine via PowerBox.
Position output rate	Off-machine: 1 Hz standard, 5 Hz option On-machine: max. 20 Hz (with PowerBox)
RTK data Formats	Leica (Lite), CMR, CMR+, RTCM v2.x / 3.0;
Ref. Station	Leica Lite
Communication PowerAntenna	RS232, RS422, Bluetooth® Wireless Technology
Shock	ISO 9022
Vibration	MIL 810.F Cat 24
Environmental specifications	IP67

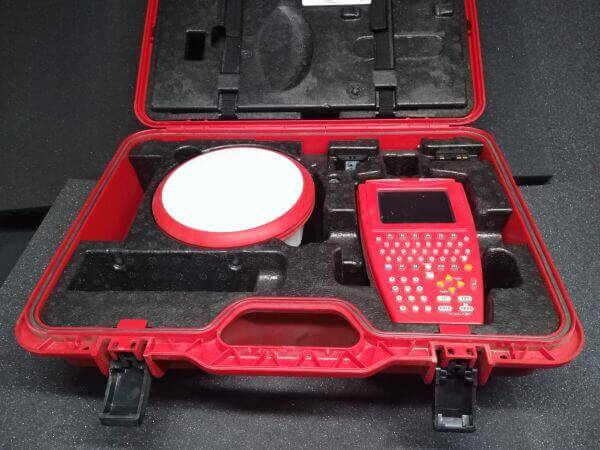

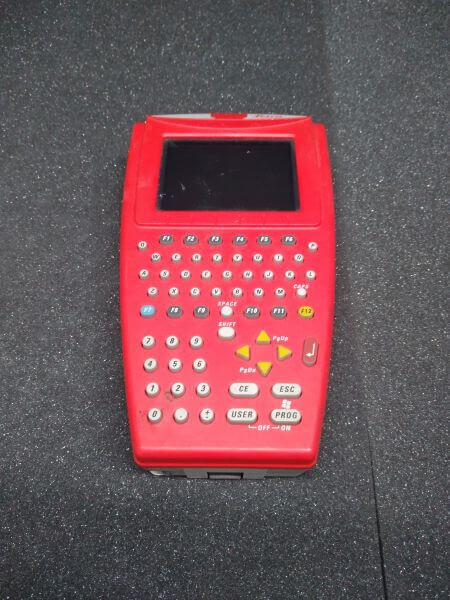

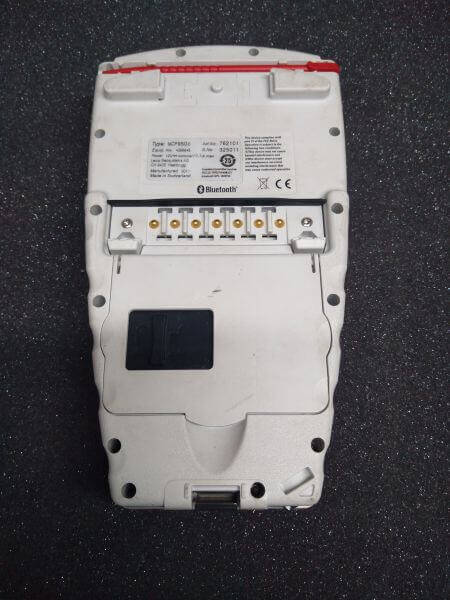

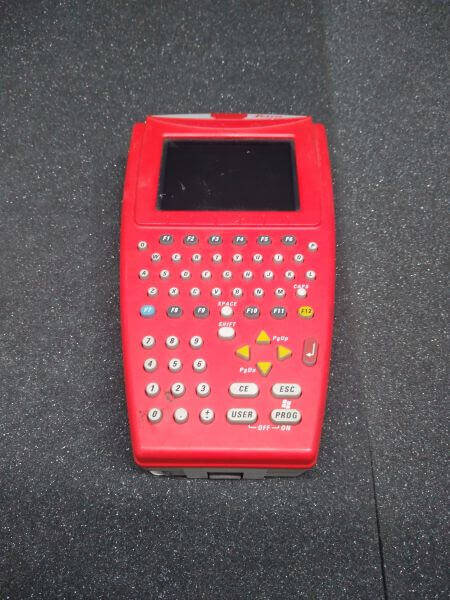

Leica Redline MCP950C Power Controller

Specifications:

Control Unit
Display	¼ VGA (320x240 pixels), graphic LCD, touch screen, illumination
Touch screen:	Toughened film on glass
Keyboard	62 keys (12 function keys, 40 alphanumeric keys), illumination
Interface	RS232, External Radio Modem or Bluetooth
Internal Battery (GEB211)
Type	Lithium-Ion
Voltage	7.4 V
Capacity	1.9 Ah
Operating time	MCP950c typ. 8h
Weights
MCP950c	0.73 kg
Smart Holder	0.32 kg
GFU 23 Radio Modem	0.32 kg
Battery (GEB211):	0.1 kg
Environmental specifications
Working temperature range:	-30°C to +50°C
Storage temperature range:	-40°C to +80°C
Dust / water (IEC 60529):	IP67
Waterproof (MIL-STD-810F):	temporary submersion to 1m

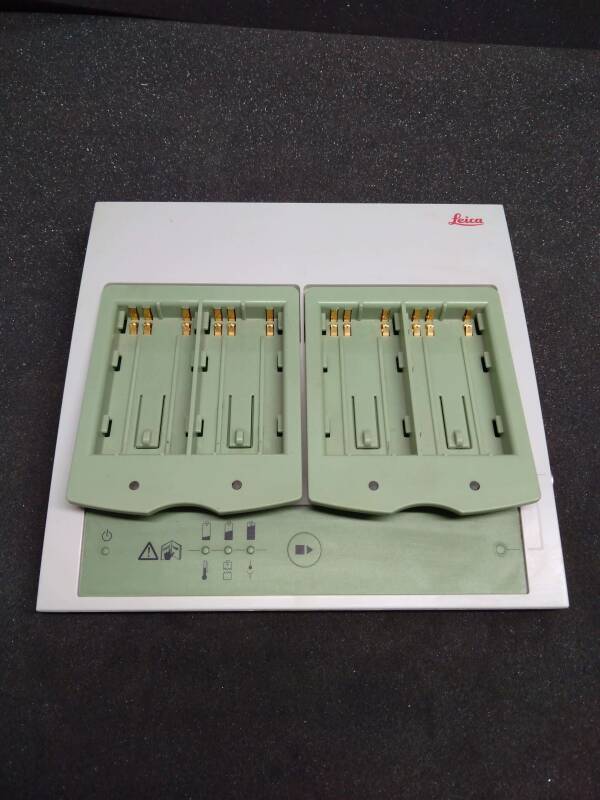

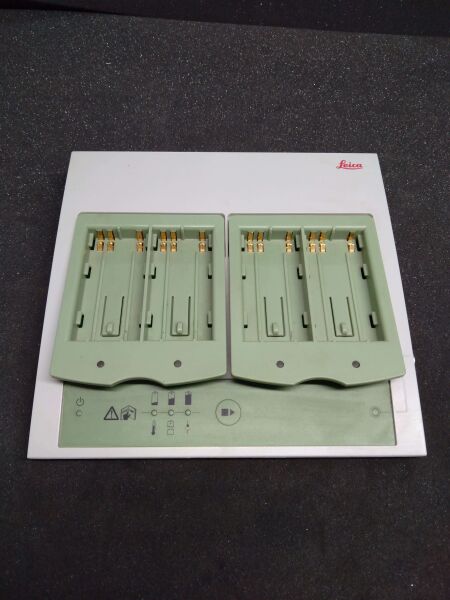

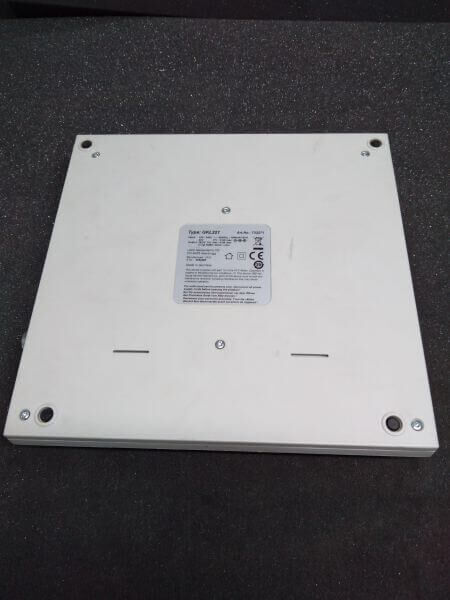

Leica GKL221, Pro Charger Base Stations

Professional Charging Station GKL221

The GKL221 is an intelligent charging station with advanced charging technology. It is suitable for charging all Leica Geosystems batteries and ensures the optimal battery operation with your equipment.

Supply

The GKL221 can be connected to the mains electricity supply with an input voltage range from 100 to 240 V AC, using the country specific power cable. With the optional GDC221 car adapter, the charging station can be connected to the battery circuit of a vehicle.

Battery – Identification

The microprocessor controlled charging station recognises the type of battery connected and derives the charging parameters such as time and current. The batteries are optimally and appropriately charged. This guarantees the maximum possible service life. The charging station can recognise and charge cells of the NiCd, NiMH and Li-Ion types. Up to five batteries can be connected to the charger simultaneously. Two batteries are charged at the same time and the rest are charged in the order they were connected.

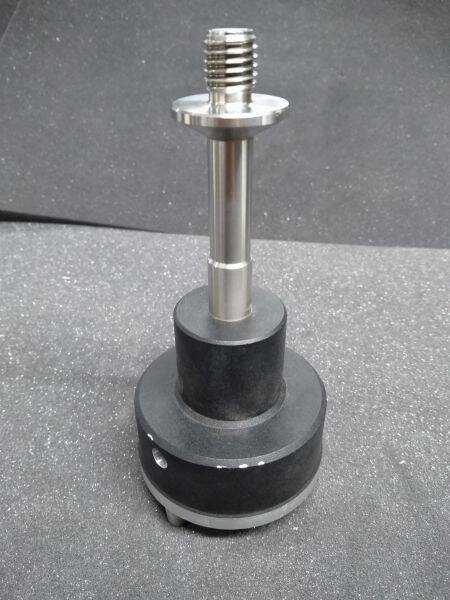

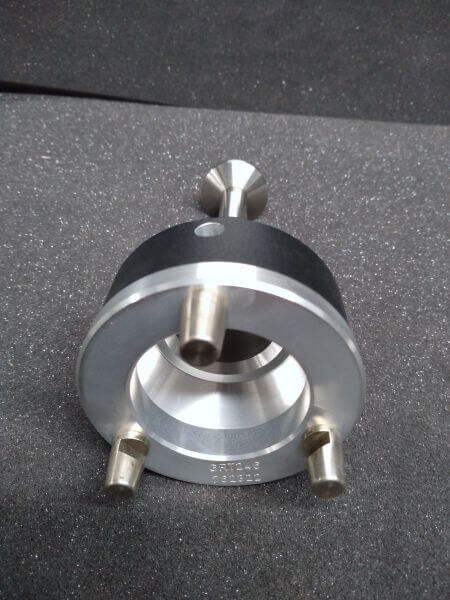

Leica GRT246 762322 Carrier

Carrier for use in tribrachs with optical plummet. The GRT146 Carrier with 5/8" thread is complementary for direct fitting of GNSS antennas. GPS antenna screws on directly.

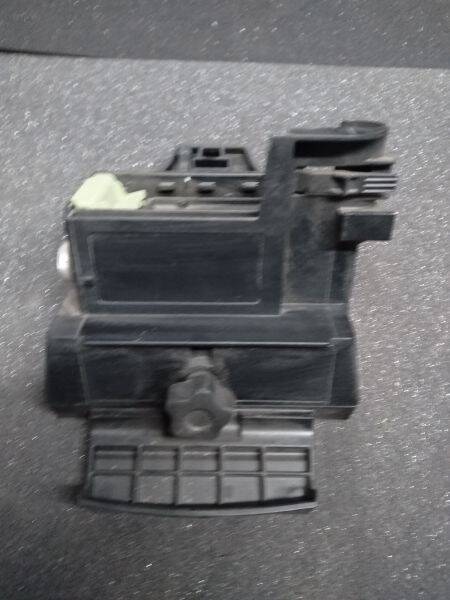

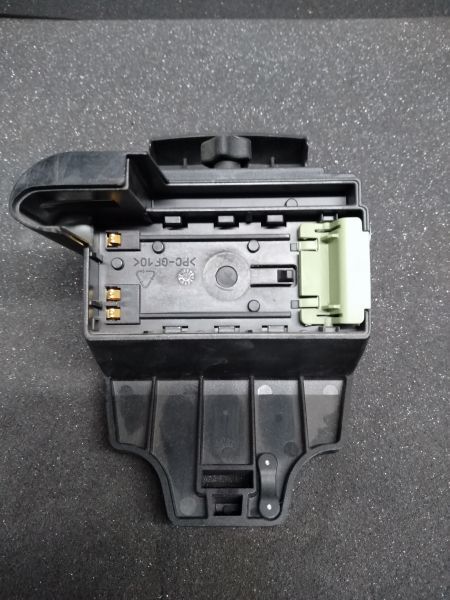

Leica GHT56 Holder

Features
