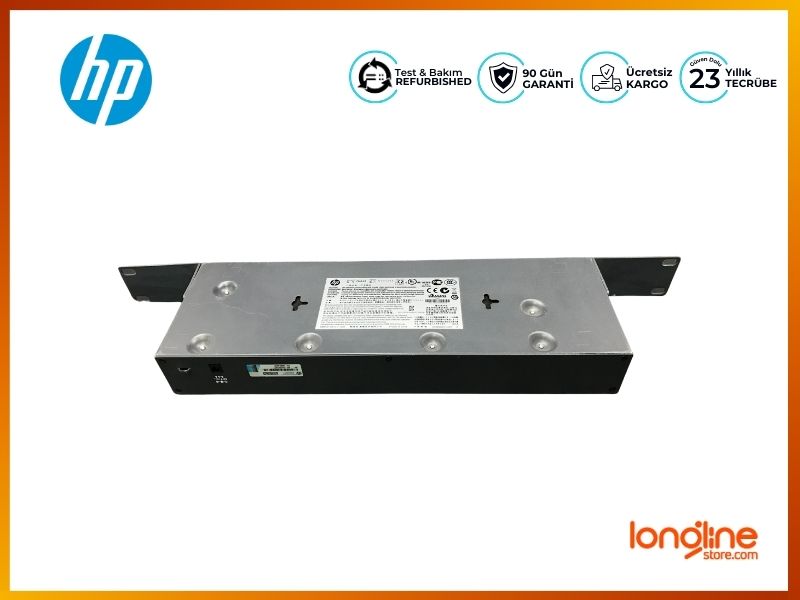

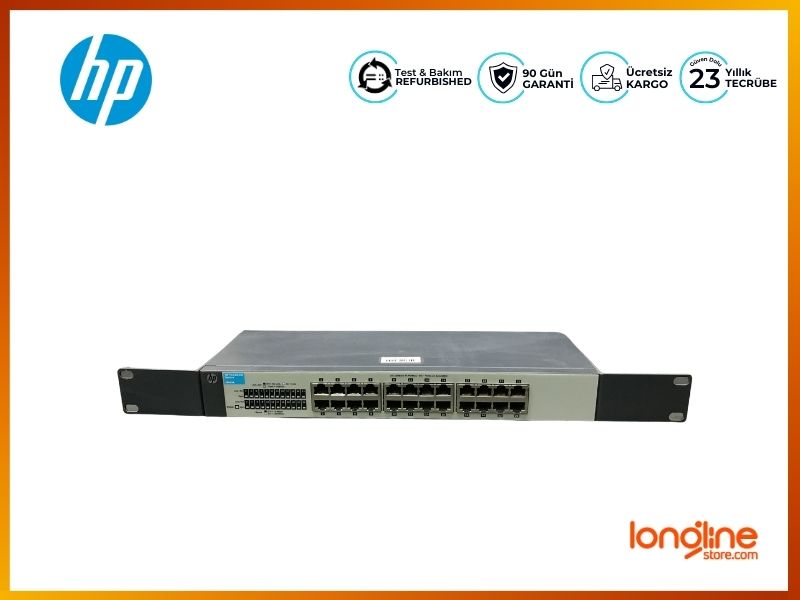

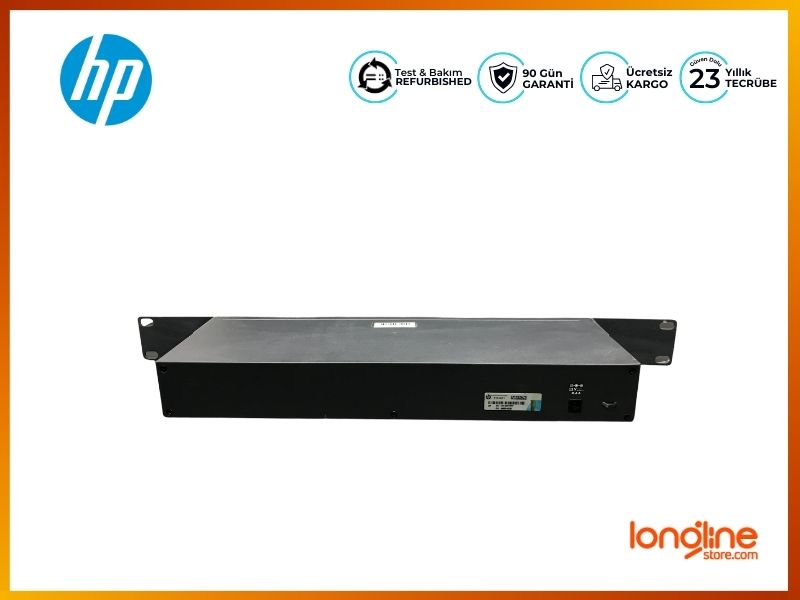

Hp V1410-J9663A 24 port x 10/100Base Ethernet Switch

 J9663A Specifications

Type

HPE OfficeConnect 1410 Switch-24 Switch

Ports

Supports a maximum of 24 autosensing 10/100 ports

Physical characteristics

Dimensions (d) x (w) x (h)

16.9 x 33.6 x 4.4 cm (6.65 x 13.23 x 1.73 in)

Weight

1.35 kg (2.98 lb)

Memory and processor

16KB EEPROM; packet buffer size: 2MB

Mounting

Mounts in an EIA-standard 19 in. telco rack (hardware included); wall, desktop, and under-table mounting

Performance

100Mb Latency

< 11 μs (LIFO 64-byte packets)

Throughput

up to 3.5 million p/s (64-byte packets)

Switching capacity

4.8 Gb/s

MAC address table size

8192 entries

Environment

Operating temperature

0º to 40ºC (32º to 104ºF)

Operating relative humidity

15% to 95% @ 40ºC (104ºF), noncondensing

Nonoperating/Storage temperature

-40º to 70ºC (-40º to 158ºF)

Nonoperating/Storage relative humidity

15% to 90% @ 65ºC (149ºF), noncondensing

Altitude

up to 3 km (10,000 ft)

Acoustic

Power: 0 dB

Electrical characteristics

Maximum heat dissipation

17.93 kJ/hr (17 BTU/hr)

Voltage

100-240 V ac

DC voltage

12 V

Current

0.4 A

Maximum power rating

4.8 W

Frequency

50/60 Hz

Notes

Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.

The exact input voltage and frequency rating are determined by the specific power adapter part number ordered. Please select the correct power adapter country option.

Safety

UL 60950-1; CSA 22.2 60950-1; IEC 60950-1:2005; EN 60950-1:2006 + A11:2009

Emissions

FCC Rules Part 15, Subpart B Class A

Immunity

Generic

EN 55022 CISPR 22

EN

EN 55024, CISPR 24

ESD

IEC 61000-4-2

Radiated

IEC 61000-4-3

EFT/Burst

IEC 61000-4-4

Surge

IEC 61000-4-5

Conducted

IEC 61000-4-6

Power frequency magnetic field

IEC 61000-4-8

Voltage dips and interruptions

IEC 61000-4-11

Harmonics

IEC 61000-3-2

Flicker

IEC 61000-3-3

Notes

IEEE 802.3az Energy Efficient Ethernet protocol is supported by the HPE OfficeConnect 1410 Switch-16 (J9662A) and HPE OfficeConnect 1410 Switch-24 (J9663A) Switches only.
