| Specification | Details |
|---|---|

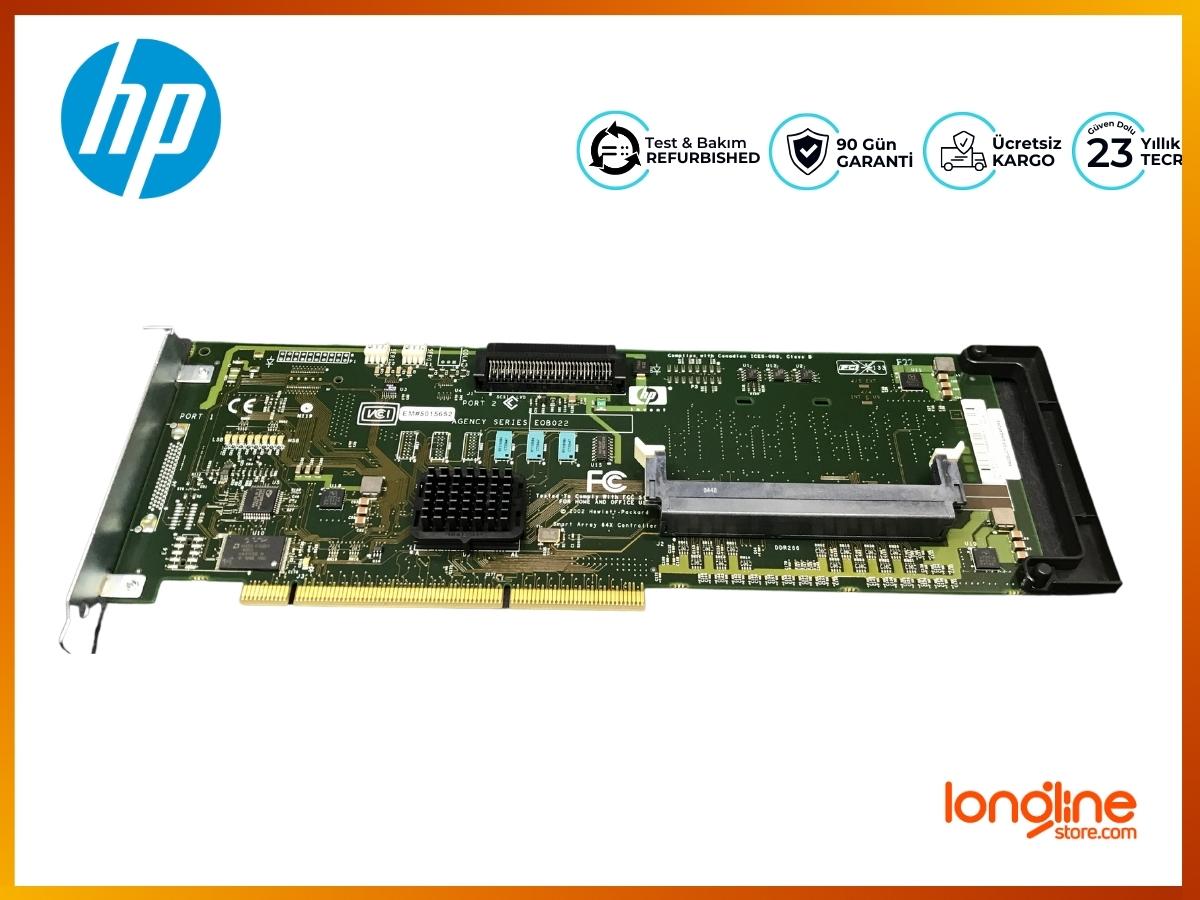

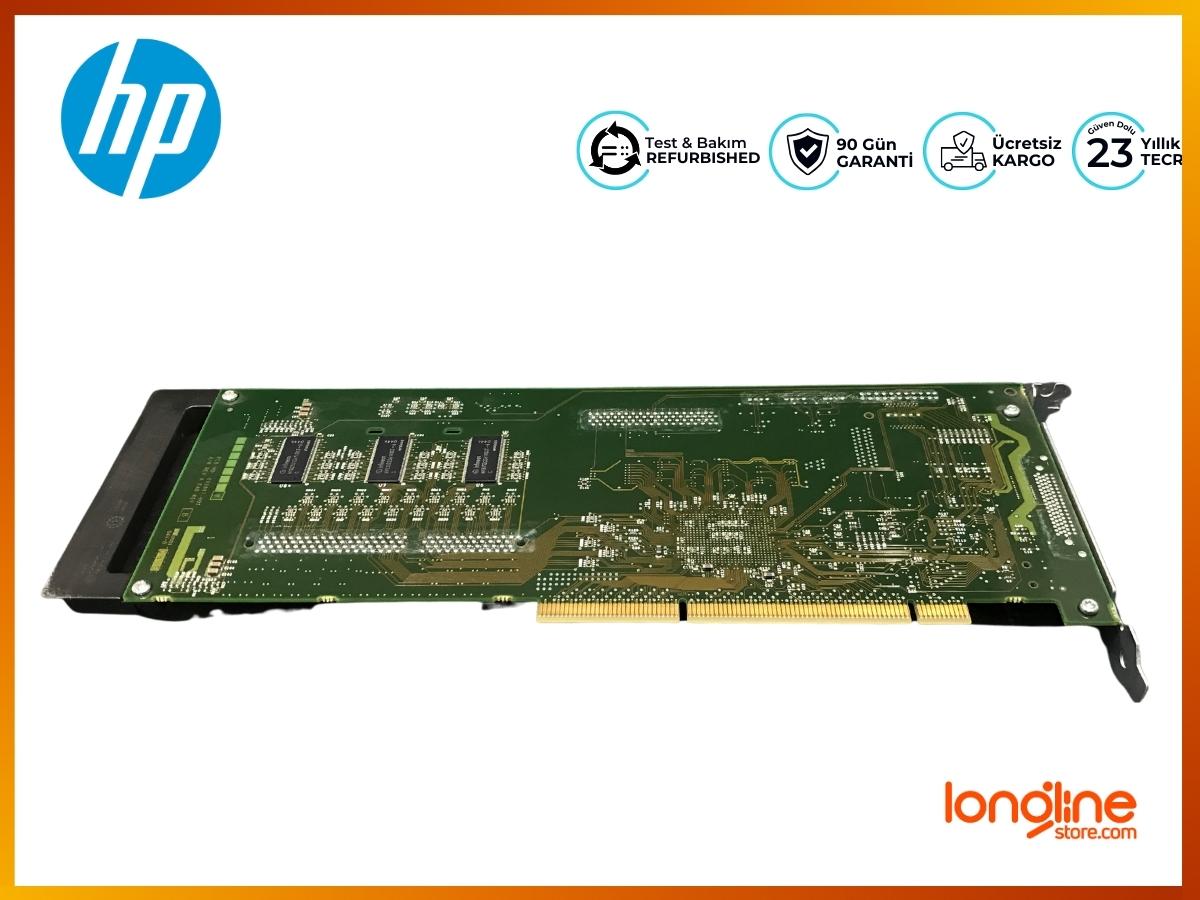

| Description | Smart Array 532 Controller with 32MB cache - 66MHz 64-bit 3.3V PCI two-channel Wide Ultra3 SCSI array controller - Has one 68-pin very high density external connector and one 68-pin Internal connector |
| Part Number(s) | Option Part# 291966-B21, Spare Part# 305414-001 |
| Overview | The Smart Array 532 Controller (SA-532) is a 64-bit 66 MHz dual SCSI channel PCI array controller for entry-level hardware-based fault tolerance. It allows up to 28 Hard Drives to store up to 4.1TB of storage per PCI slot. It provides high reliability, increased performance, and excellent value for entry-level servers. |
| Category | Proliant |
| Sub-Category | Controller |
| Generation | U320 |
| Device Type | HP Smart Array 532 - Storage Controller |
| Interface Type | PCI-X / 133MHz |
| Dimensions (WxDxH) | 0.6 in x 4.2 in |
| Controller Interface Type | Ultra320 SCSI |
| Data Transfer Rate | 320MB/s |
| Buffer Size | 64MB Installed/ 128MB Max |
| Supported Devices | Disk Array (RAID) |
| Channel Quantity | 1 |
| Max Storage Devices | 6 |
| RAID Level | RAID 0, 1, 5, 10 |
