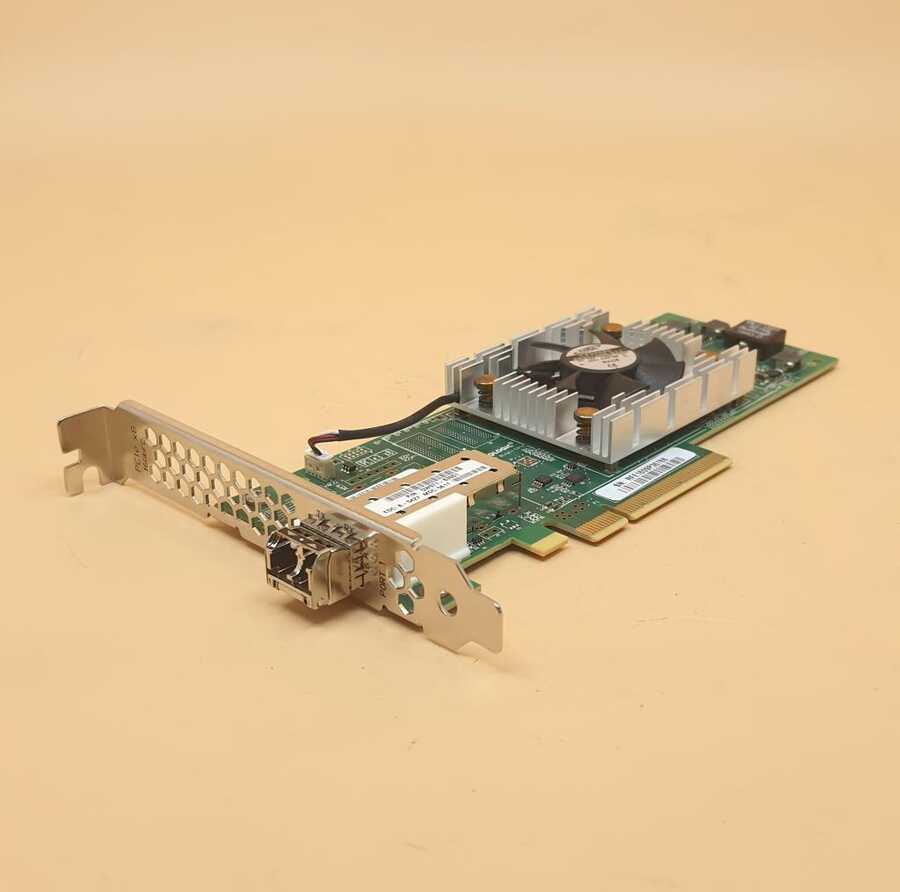

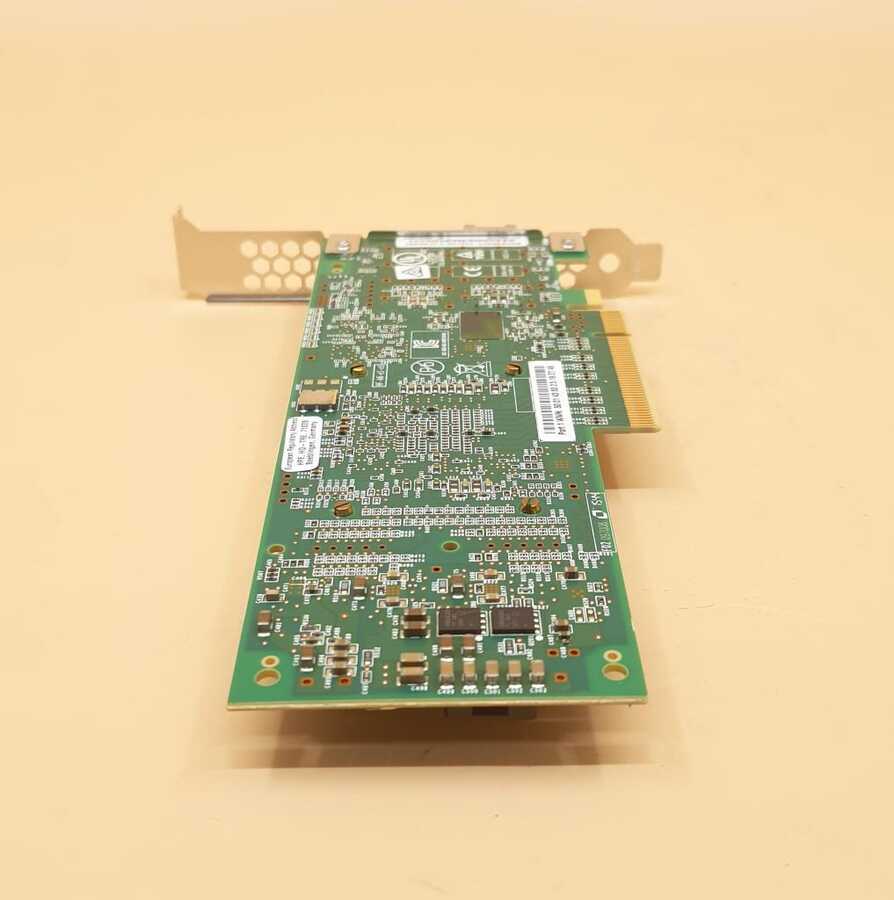

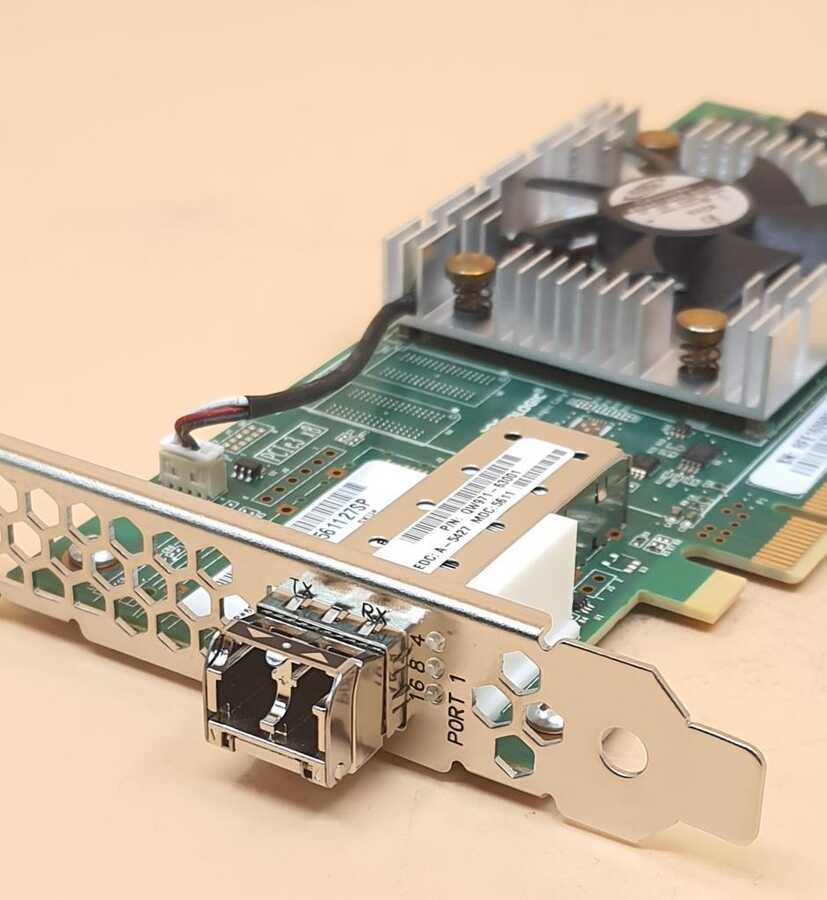

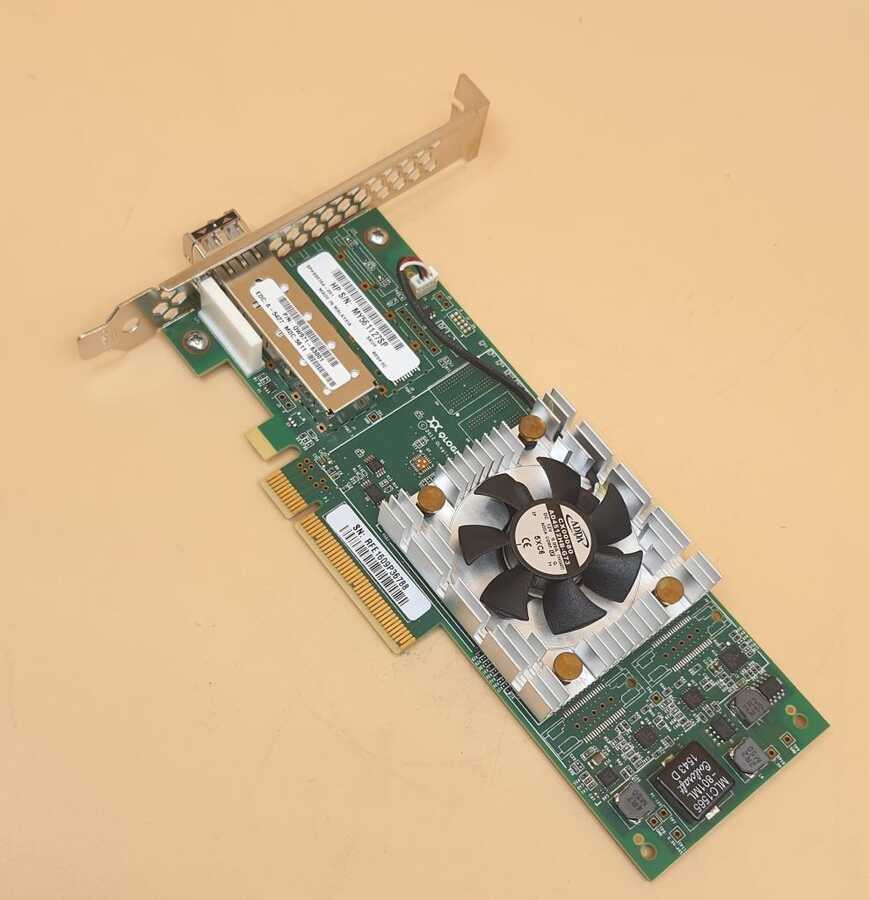

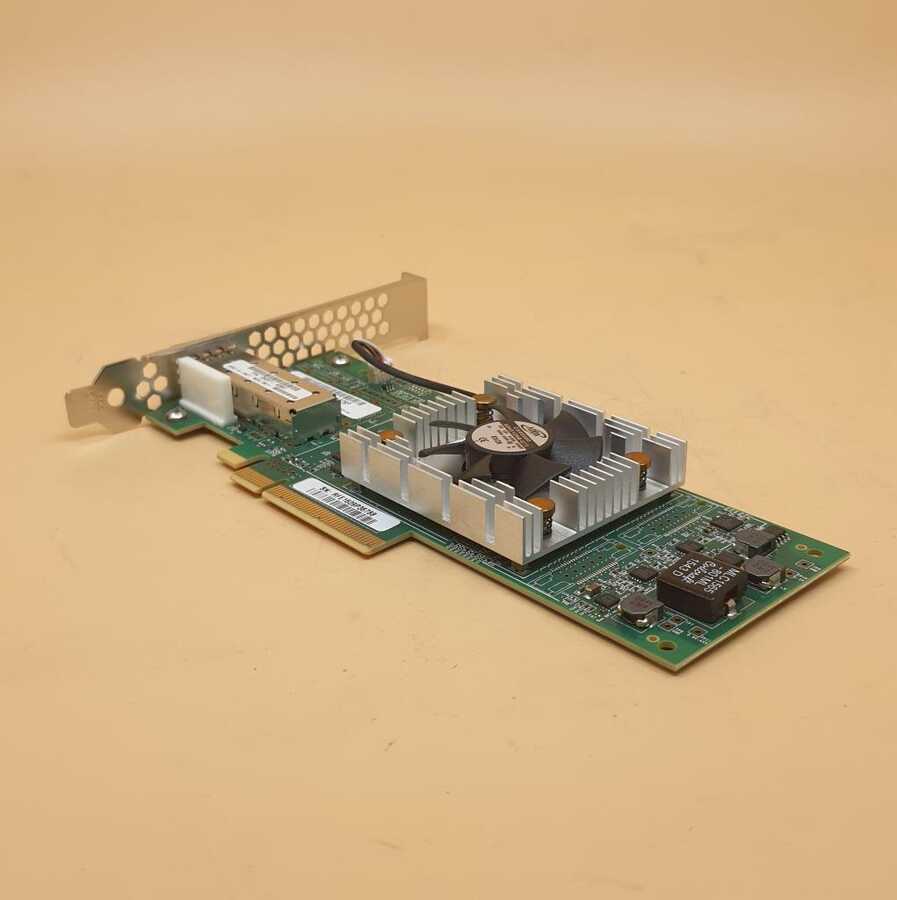

Full High Bracket for QLOGIC QLE2660L HP QW971A

Specification

Brand: HPE
MPN: QW971A

Option Part Number: QW971A
Spare Part Number: 699764-001

General

Device Type: Host Bus Adapter
Form Factor: Plug-in Card - Low Profile
Interface (Bus) Type: PCI Express 3.0 x4

Networking

Ports: 16Gb Fibre Channel x 1
Port Speed: 16 Gbps
Slot Type Supported: PCI Express 3.0 to Fibre Channel
Media: Multi-Mode Optic (SFP+)
Connector: Short Wave laser with Lucent Connector (LC)
PCIe Connector: PCIe 3.0 x4
Auto-Negotiation: 16/8/4 Gbps
Connectivity Technology: Wired
Cabling Type: Fiber Optic
Data Link Protocol: 16Gb Fibre Channel (Short Wave)
Data Transfer Rate: 16 Gb/sec
Features: Auto-Negotiation

Expansion / Connectivity

Compatible Slots: 1 x PCI Express 3.0 x4
Expansion Slots: 2 (total) / 0 (free) x SFP+
Interfaces: 1 x 16Gb Fibre Channel (Short Wave) - LC multi-mode - x 2

Software / System Requirements

Compatible Operating Systems: Microsoft Windows, Red Hat Enterprise Linux (RHEL), SUSE Linux Enterprise Server (SLES), VMware, Microsoft Windows Hyper-V

Miscellaneous

Included Accessories: Low-Profile Bracket, Full-Height Bracket, 2 x 16Gb SFP+

Product Dimensions & Weight

Width: 4.69 inch (119.00 mm)
Depth: 6.63 inch (168.00 mm)
Height: 0.63 inch (16.00 mm)
Weight: 2.50 lbs

Environmental Specifications

Operating Temperature: 0º to 55ºC (32º to 131ºF)
Storage Temperature: -20º to 70ºC (-4º to 158ºF)
Operating Relative Humidity: 10% to 90% at 40ºC (104ºF), non-condensing

Compatibility Information

Designed for

HPE Modular Smart Array 2040 SAS Dual Controller LFF Storage

HPE ProLiant DL Series: DL360e Gen8, DL360e Gen8 Base, DL360e Gen8 Entry, DL360e Gen8 Performance, DL360e Gen8 Special Server, DL360p Gen8, DL360p Gen8 Base, DL360p Gen8 CMS, DL360p Gen8 Entry, DL360p Gen8 High Performance, DL380 G7, DL380 G7 Base, DL380 G7 Efficiency, DL380 G7 Entry, DL380 G7 Performance, DL380 G7 Special Server, DL380e Gen8, DL380e Gen8 Base, DL380e Gen8 Entry, DL380e Gen8 High Performance, DL380e Gen8 Storage, DL380p Gen8, DL380p Gen8 Base, DL380p Gen8 Entry, DL380p Gen8 High Performance, DL380p Gen8 Special, DL385 G7, DL385 G7 Base, DL385 G7 Entry, DL385 G7 HE, DL385 G7 Performance, DL385p Gen8, DL385p Gen8 Dedicated Workload, DL385p Gen8 Entry, DL385p Gen8 Maximized Consolidation, DL385p Gen8 Storage, DL385p Gen8 Storage Centric, DL580 G7, DL580 G7 Base, DL580 G7 High Performance
