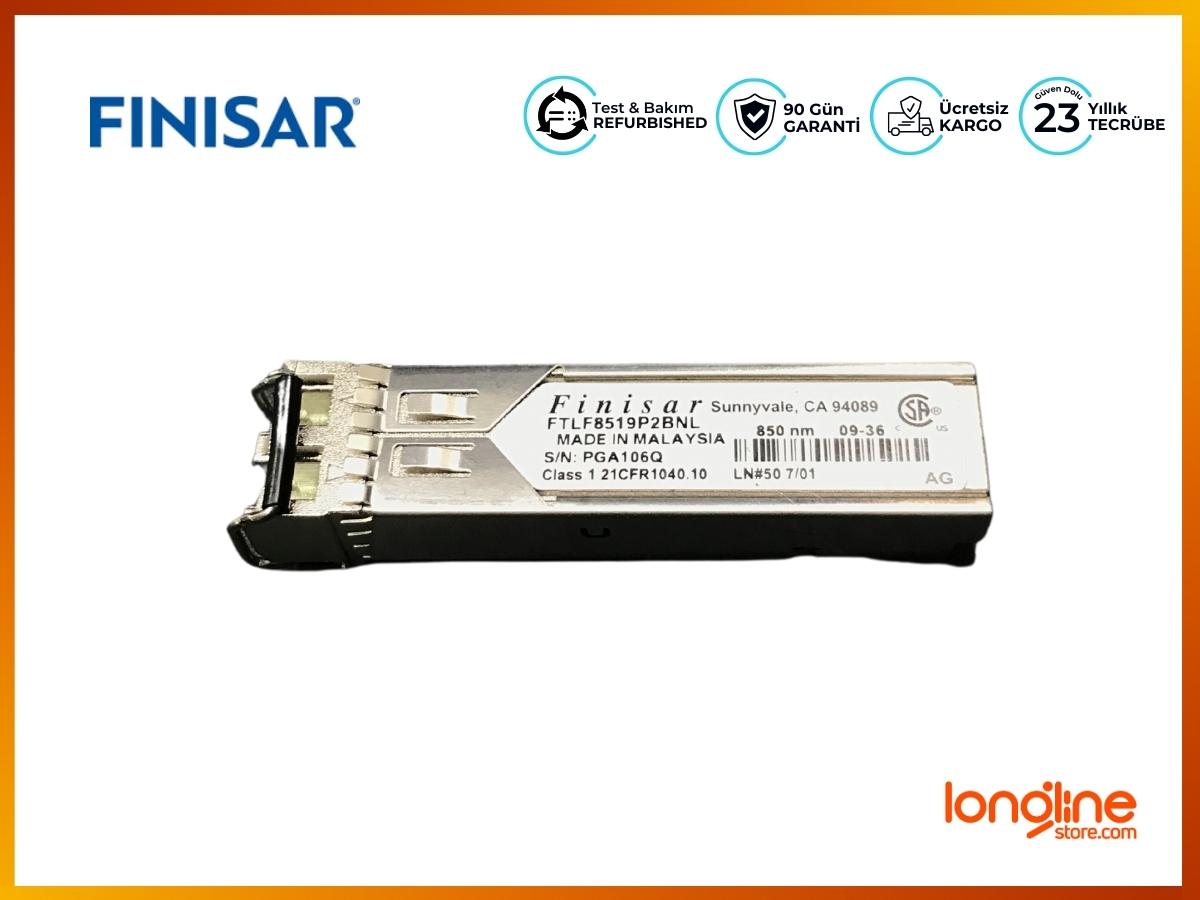

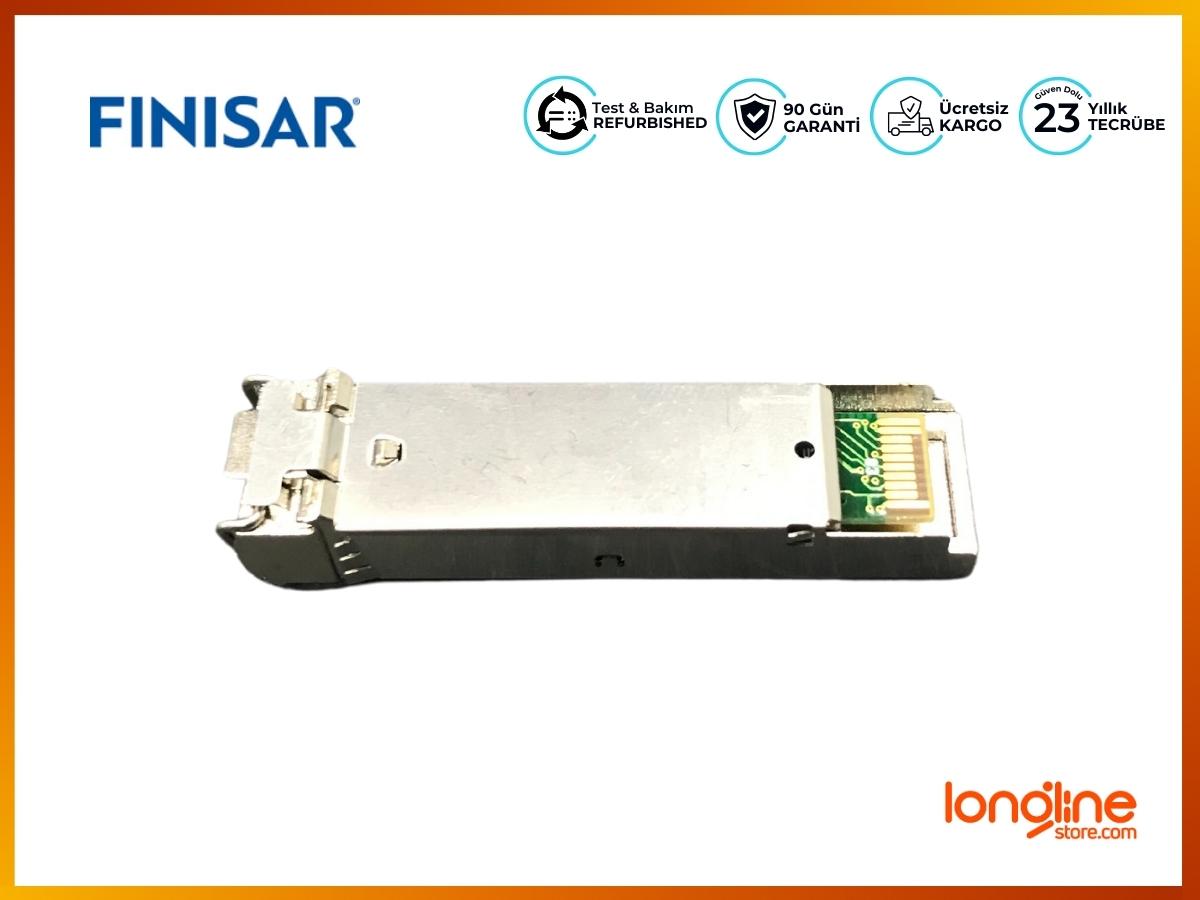

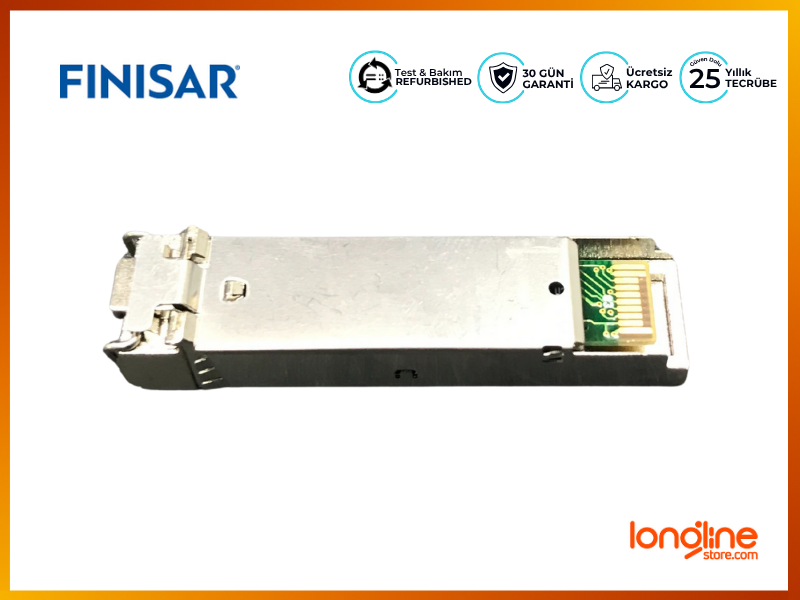

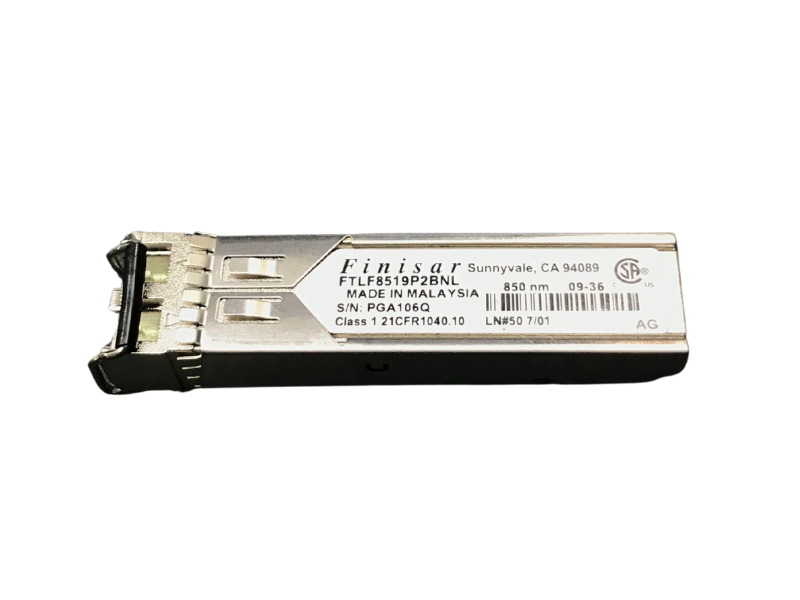

Finisar FTLF8519P2BNL 2Gb SFP Fiber 1GbE 1000Base-SX SW Transceiver

Finisar's FTLF8519P2xNL Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA)1. They are simultaneously compatible with Gigabit Ethernet as specified in IEEE Std 802.32 and Fibre Channel FC- PI-2 Rev. 10.03. They are RoHS compliant and lead-free per Directive 2002/95/EC4 and Finisar Application Note AN-2038. Digital diagnostics functions are available via the 2-wire serial bus specified in the SFP MSA.


Dell Part Number: HH9MW / 0HHM9W / MY-0HH9MW

OEM Part Number: FTLF8519P2BNL

• Product Type: GBIC Transceiver
• Technology Category: Networking
• Gigabit Ethernet: Compatible 1EEE 802.3
• Fibre Channel: FC-PI-2 Recv. 10.0
• RoHS Compliant: Yes

Specification:

• Up to 2.125 Gb/s bi-directional data links
• Hot-pluggable SFP footprint
• Built-in digital diagnostic functions
• 850nm Oxide VCSEL laser transmitter
• Duplex LC connector
• RoHS Compliant and Lead-Free
• Up to 550m on 50/125μm MMF, 300m on 62.5/125μm MMF
• Metal enclosure, for lower EMI
• Single 3.3V power supply
• Low power dissipation
• Extended operating temperature range: -20°C to 85°C
