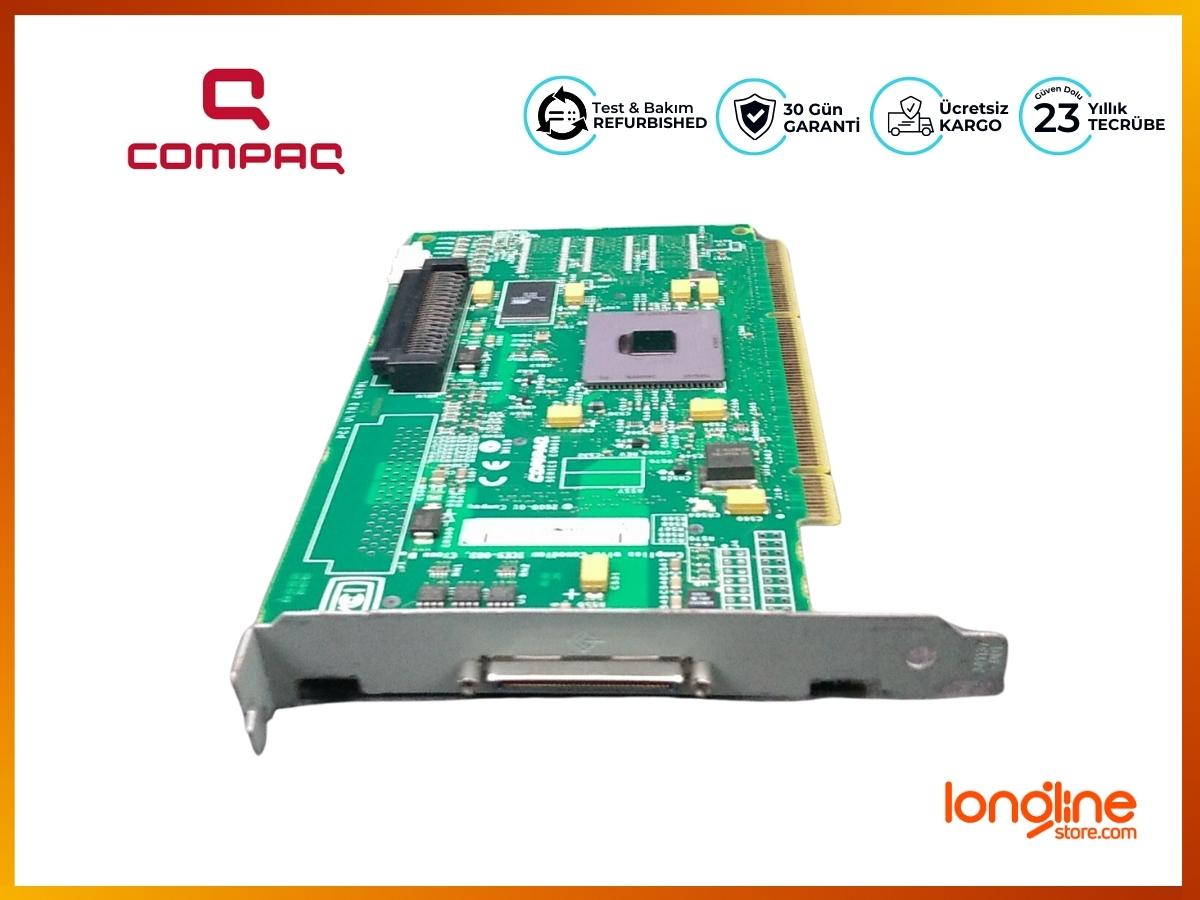

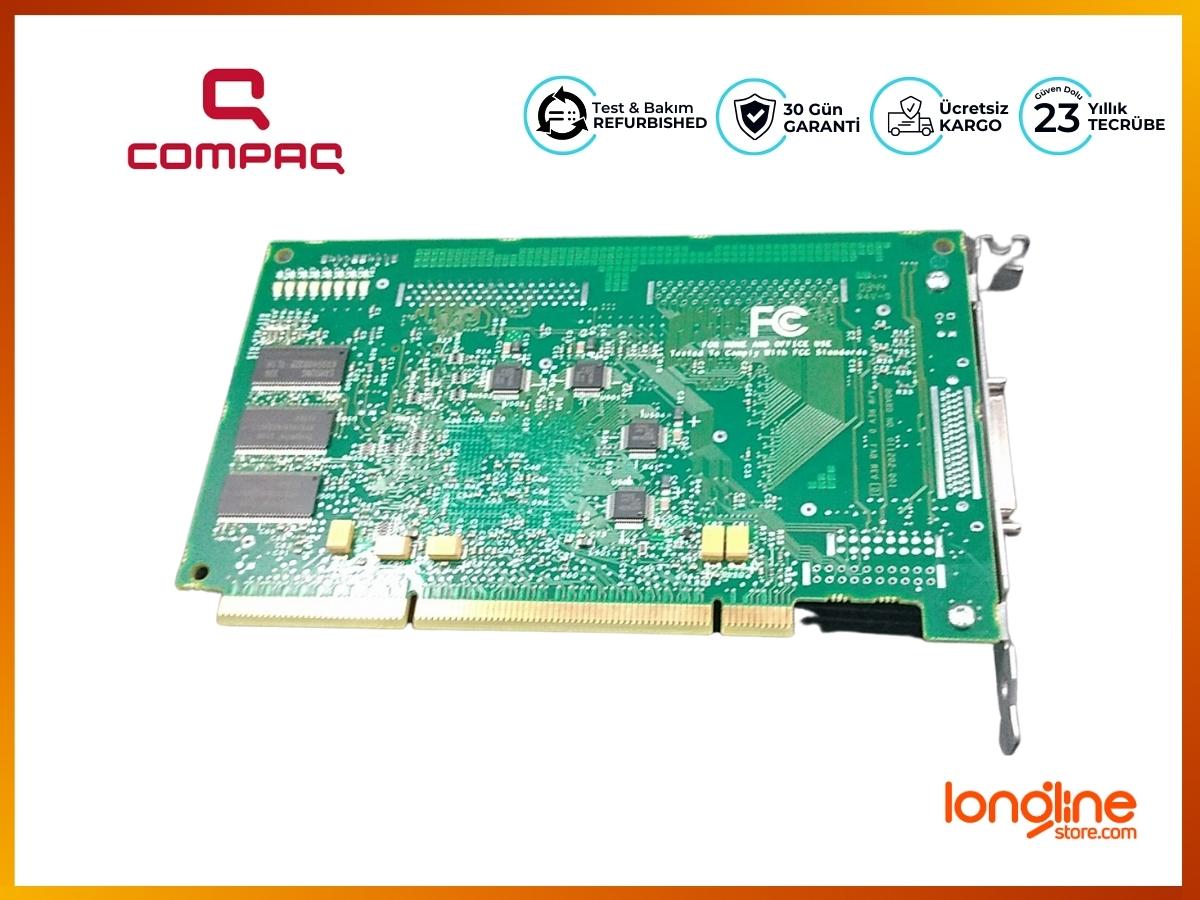

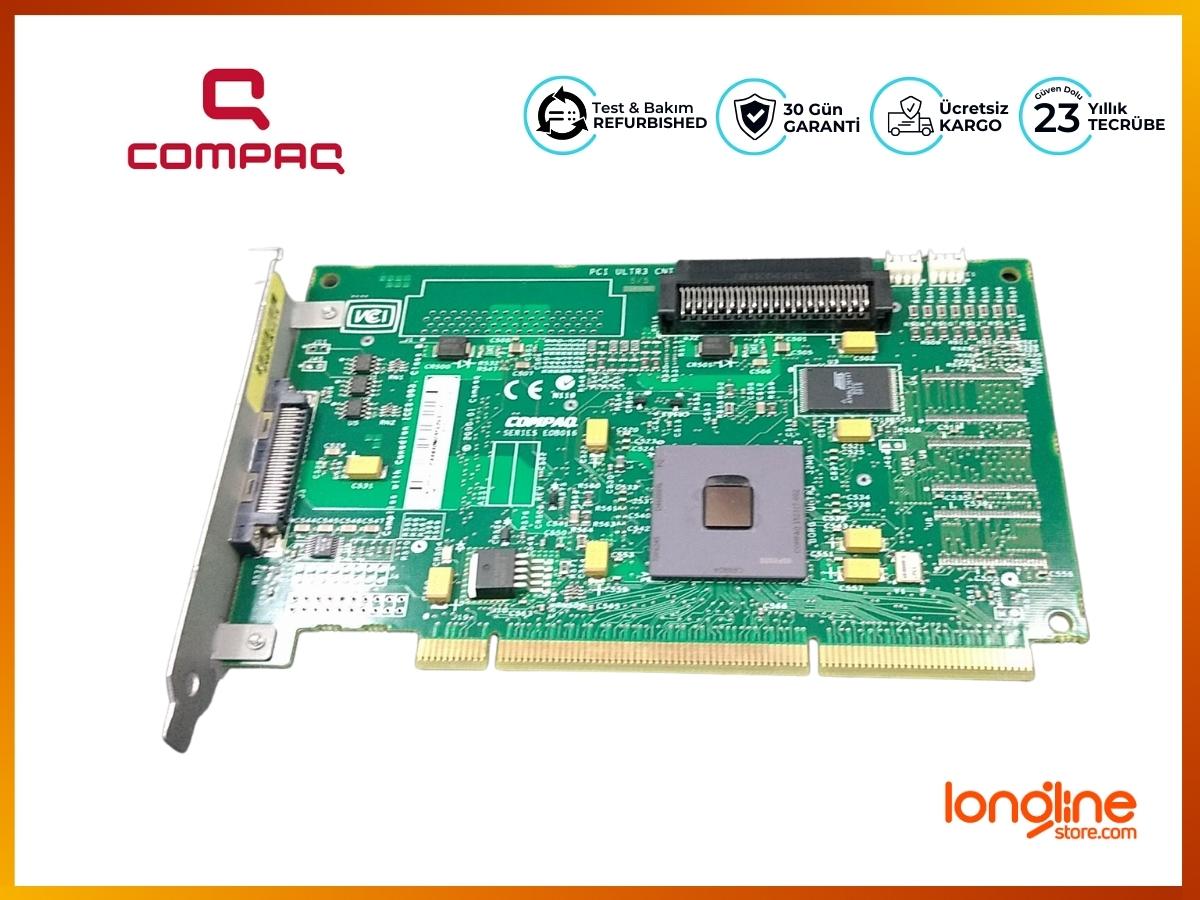

Compaq SCSI CONTROLLER 532 PCI-X 64BIT 66MHZ U160 226874-001

Overview:

The Smart Array 532 Controller (SA-532) is a 64-bit 66 MHz dual SCSI channel PCI array controller for entry level hardware-based fault tolerance. Utilizing both SCSI channels (1 internal and 1 external) of the SA-532 allows you to configure up to 28 Hard Drives to store up to 4.1TB of storage per PCI slot. The SA-532 provides high reliability and increased performance over the Smart Array 431 thus providing excellent value and lowering the total server ownership cost. In addition the SA-532 is data compatible with all Ultra320 Wide Ultra3 and Wide Ultra2 drives and servers offering an unparalleled degree of investment protection. Designed and integrated with entry-level and workgroup Proliant servers this product provides worry-free data protection. NOTE: The SA-532 is supported only in 3.3-volt PCI slots of all Ultra2 and Ultra3 servers. The SA-532 is not supported in 5-volt PCI slots. The SA-532 provides the best performance and capacity for RAID array controllers in entry-level and workgroup Proliant servers or in any Proliant server where hardware RAID is needed at an entry-level price point. Compatibility
Server
For up to date compatibility please see the following URL for complete Smart Array 532 compatibility and support information. (Compatability Table)
NOTE: Please see the following Controller or SCSI Adapter QuickSpecs for Technical Specifications such as PCI Bus PCI Peak Data Transfer Rate SCSI Protocols supported SCSI Peak Data Transfer Rate Channels SCSI Ports Drives supported Cache RAID support and additional information:

Specifications:

Category

Proliant

Sub-Category

Controller

Generation

532

Part Number

226874-001

Products ID

1689
