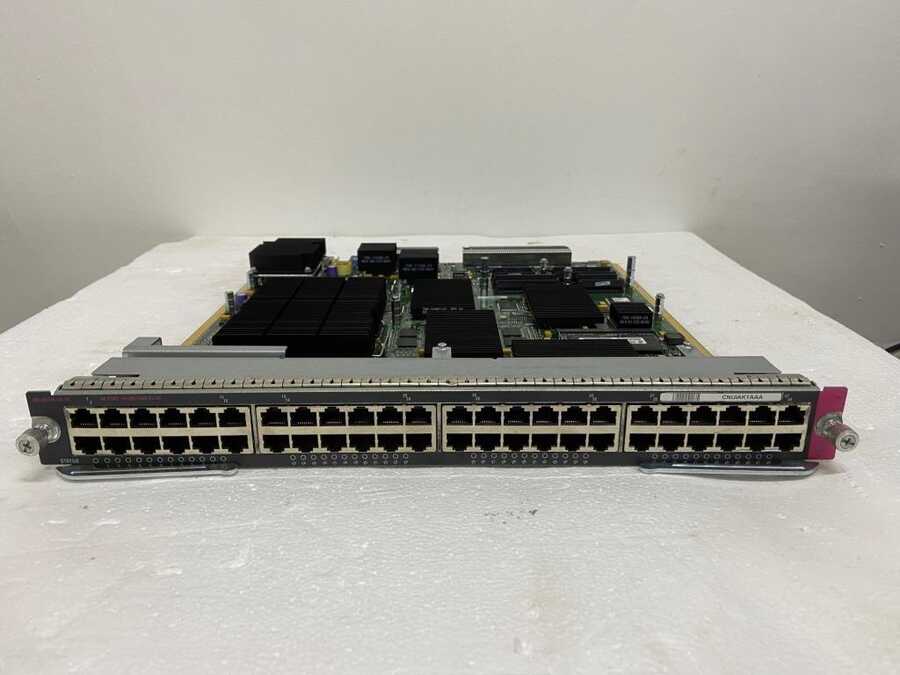

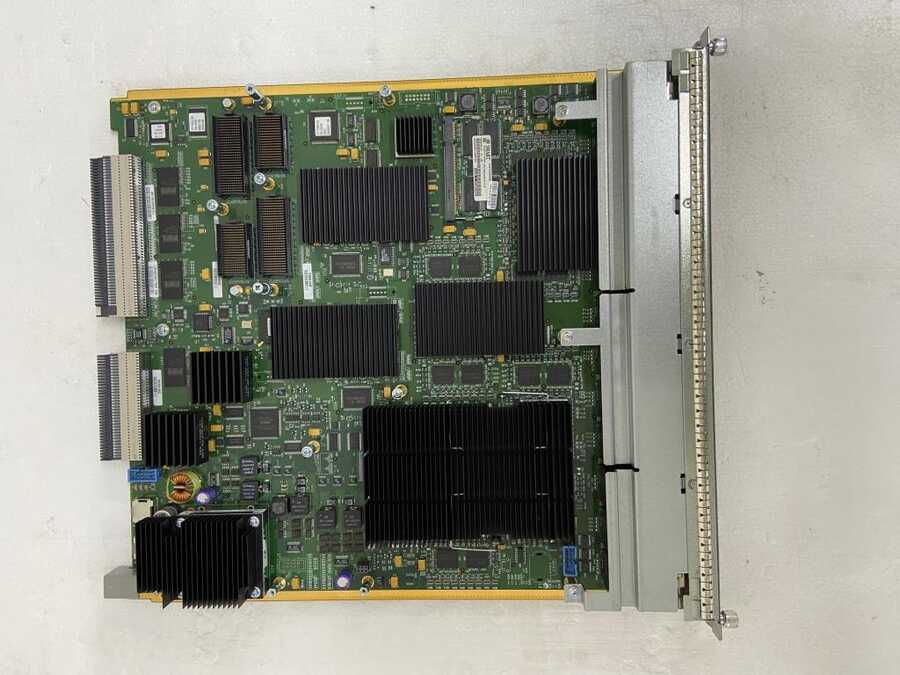

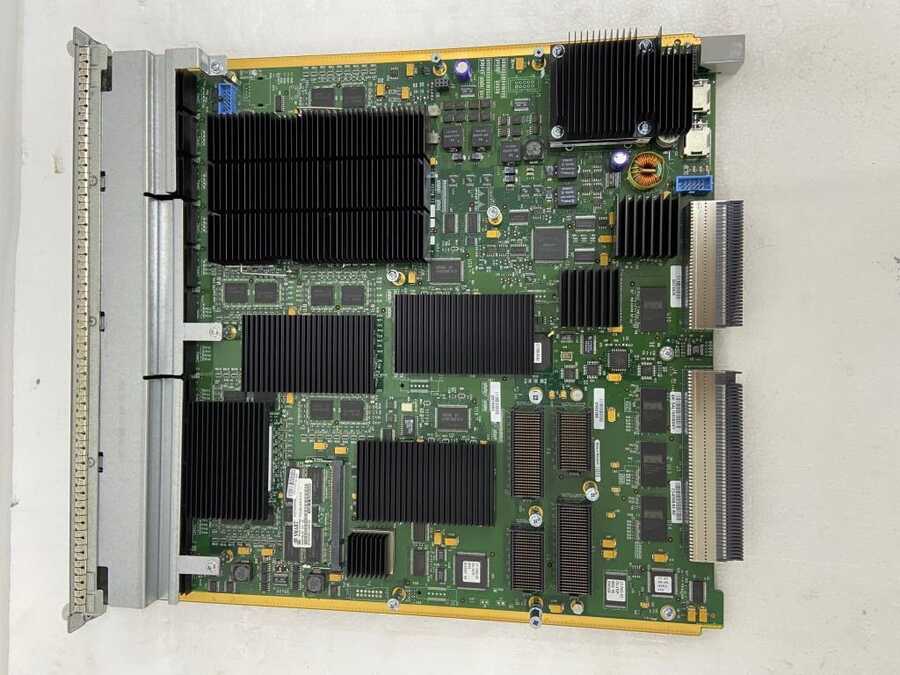

CISCO WS-X6748-GE-TX 48X Gigabit with WS-F6700-DFC3CXL

Ethernet interface type

Gigabit Ethernet

Ethernet LAN data rates

10,100,1000 Mbit/s

Copper ethernet cabling technology

10BASE-T, 100BASE-TX, 1000BASE-T

Networking standards

IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3z

Jumbo frames support

Yes

Switching capacity

40 Gbit/s

Data transfer rate

1 Gbit/s

Forwarding rate

30 Mpps

Ethernet LAN (RJ-45) ports quantity

48

Buffer size per port

1.3 MB

Compatibility

Cisco Catalyst 6506, Catalyst 6509, Catalyst 6509-NEB-A, Catalyst 6513

Quality of Service (QoS) support

Yes

Power consumption (typical)

104 W

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-40 - 75 °C

Operating altitude

-60 - 3000 m

Operating temperature (T-T)

32 - 104 °F

Safety

UL 1950, CSA-C22.2 No. 950, EN 60950, IEC 950, AS/NZS 3260, IEC 825, EN 60825, 21CFR1040

Electromagnetic compatibility

FCC Part 15 (CFR 47) Class A, VCCI, EN55022, EN55024, CISPR 22, CE marking, AS/NZS 3548

Weight

3.4 kg

Dimensions (WxDxH)

356 x 406 x 30 mm
