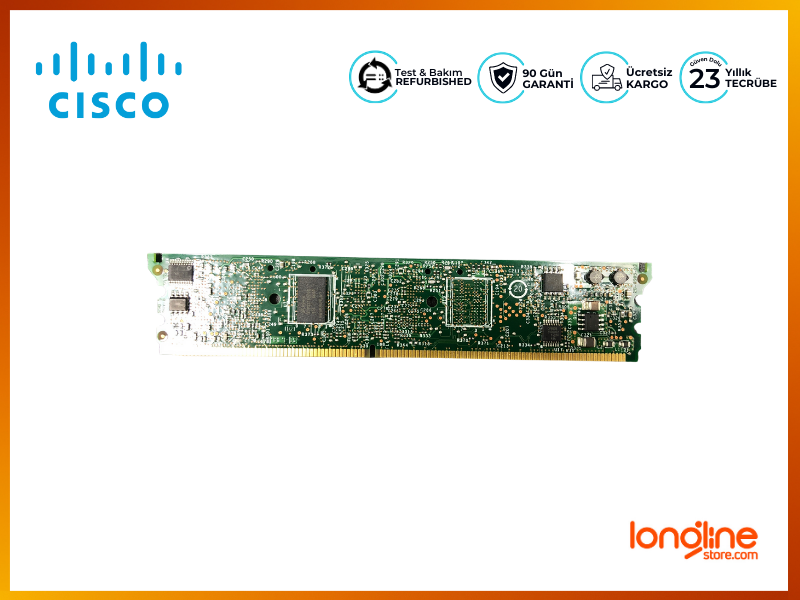

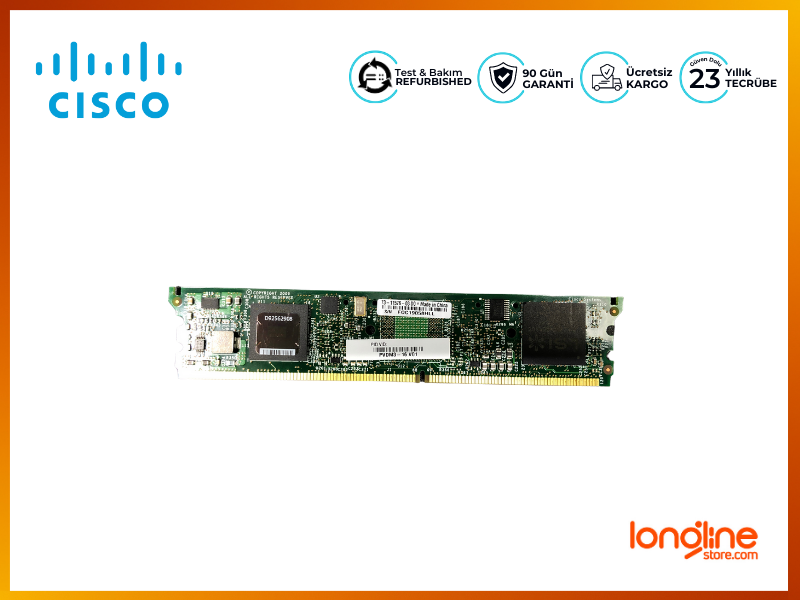

Cisco PVDM3-16 16-Channel High Density Voice DSP PVDM

DSP

Multicore DSP technology

DSP external memory

512-megabit double-data-rate (DDR) synchronous dynamic random access memory (SDRAM) for each DSP

Interface

240-pin dual-inline-memory-module (DIMM) interface

Features

Echo cancellation

Software echo cancellation compliant with ITU-T G.168, with 128-ms tail coverage

Operating temperature

-41 to 131°F (-5 to 55°C)

Voltage

3.3V

Current

1.47A

Power

4.85W

Regulatory and Compliance

Safety

● Complies with IEC 60950 (worldwide) and AS/NZS 60950-1 (Australia and New Zealand), CAN/CSA-C22.2 No. 60950-1, 1st and 2nd Ed. (Canada), and GB4943-95 (People's Republic of China)

● EN60950-1, 1st and 2nd Ed. (CENELEC; includes EU and EFTA)

● NOM-019-SCFI-1998 (Mexico), and UL 60950-1, 1st and 2nd Ed. (United States)

Homologation

Platform dependent

Mean time between failure (MTBF)

System dependent
