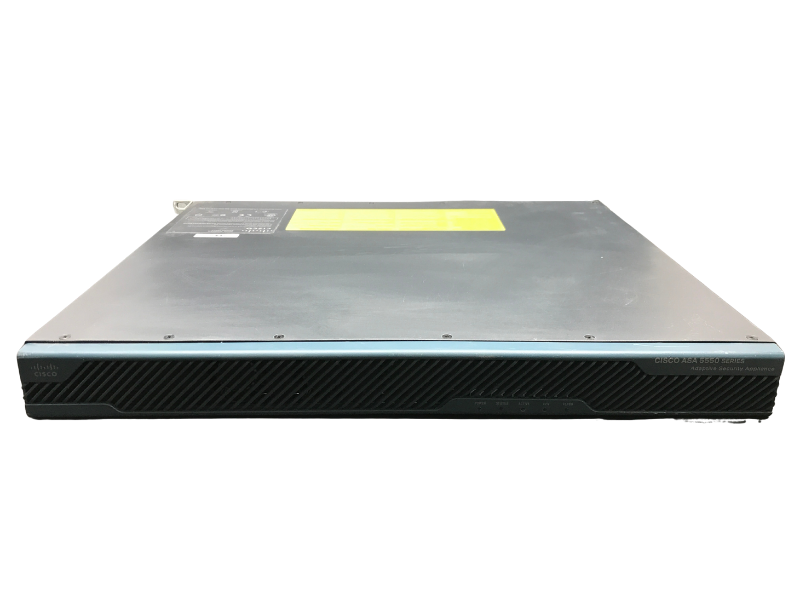

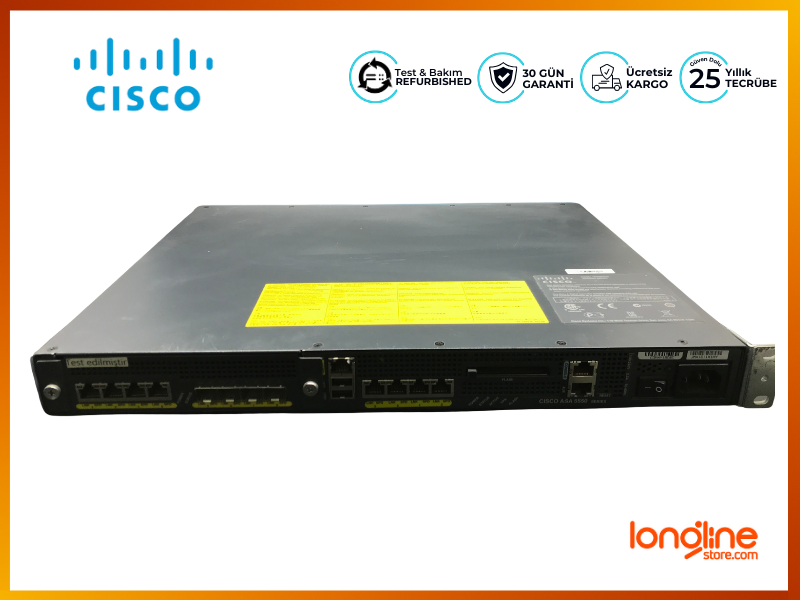

CISCO ASA5550-K8 Security Appliance with SSM-4GE-INC Module

Data transfer rate (max)

1000 Mbit/s

Firewall throughput

1200 Mbit/s

VPN throughput

425 Mbit/s

Mobile VPN SSL

2

Mobile VPN IPSec

5000

Maximum firewall connections per second

36000

Heat dissipation

648 BTU/h

Concurrent connections

650000

Noise level

60 dB

Certification

CE marking, FCC Part 15 Class A, AS/NZS CISPR22 Class A, VCCI Class A, EN55022 Class A, CISPR22 Class A, EN61000-3-2, EN61000-3-3

Wi-Fi

No

Number of VLANs

250

Security algorithms

DES

Supported network protocols

IPSec

LED indicators

Yes

Connectivity technology

Wired

Gigabit Ethernet (copper) ports quantity

8

Fast Ethernet (copper) ports quantity

1

USB 2.0 ports quantity

2

Ethernet LAN (RJ-45) ports quantity

11

SFP module slots quantity

4

Serial ports quantity

2

Internal memory

4096 MB

Storage media type

Flash

Flash memory

64 MB

AC input voltage

100-240 V

AC input frequency

47/63 Hz

Input current

3 A

Power consumption (typical)

150 W

Peak power

190 W

Number of power supply units

1

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-25 - 70 °C

Operating relative humidity (H-H)

5 - 95%

Storage relative humidity (H-H)

5 - 95%

Operating altitude

0 - 2000 m

Non-operating altitude

0 - 4570 m

Dimensions (WxDxH)

200.4 x 362 x 44.5 mm

Weight

10 kg
