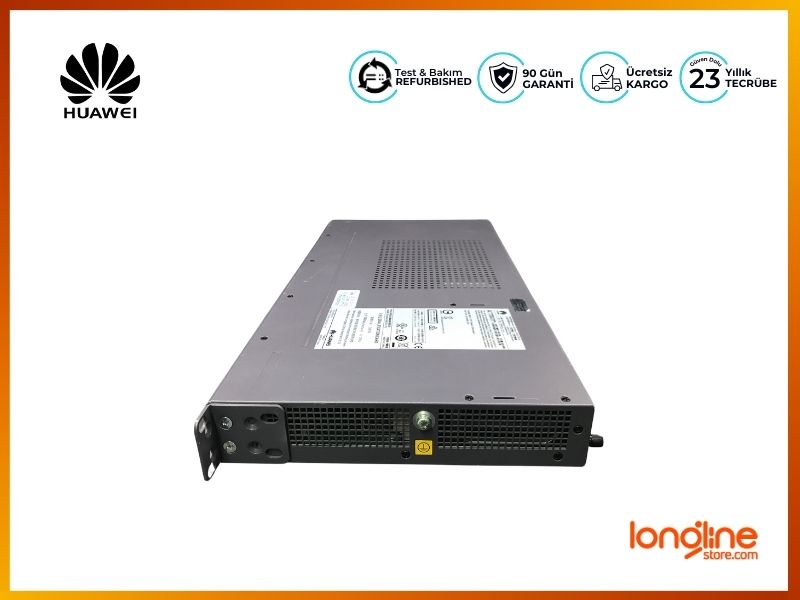

HUAWEI QUIDWAY S5324TP-SI (S5300 SERIES SWITCH) 24-PORT

Memory (RAM)

256 MB

Flash

32 MB

Mean time between failures (MTBF)

37 years

Mean time to repair (MTTR)

2 hours

Availability

> 0.99999

Service port surge protection

±2 kV in common mode

Power supply surge protection

±6 kV in differential mode; ±6 kV in common mode

Dimensions (W x D x H)

442.0 mm x 220.0 mm x 43.6 mm

Weight

Fully loaded:≤ 8.5 kg

Empty loaded:≤ 5 kg

Stack ports

Two stack ports available on each stack card

Maximum stack

bandwidth

(bidirectional)

48 Gbit/s

RPS

Not supported

PoE

No

Rated voltage range

100 V AC to 240 V AC, 50/60 Hz

Maximum voltage range

90 V AC to 264 V AC, 47 Hz to 63 Hz

Maximum system

power consumption

(100% throughput,

100% PoE loads,

full speed of fans)

40 W

Operating temperature

0°C to 50°C

Storage temperature

-40°C to +70°C

Noise under normal temperature (27°C, sound power)

0

Relative humidity

5% RH to 95% RH, noncondensing

Operating altitude

AC: 0 m to 5000 m

EMC

CISPR22 Class A

CISPR24

EN55022 Class A

EN50024

ETSI EN 300 386 Class A

CFR 47 FCC Part 15 Class A

ICES 003 Class A

AS/NZS CISPR22 Class A

IEC61000-4-2

ITU-T K 20

ITU-T K 44

Environmental

standards

RoHS

REACH

WEEE

Security

IEC 60950-1

EN 60950-1/A11/A12

UL 60950-1

CSA C22.2 No 60950-1

AS/NZS 60950.1

Laser safety

IEC60825-1

IEC60825-2

EN60825-1

EN60825-2
