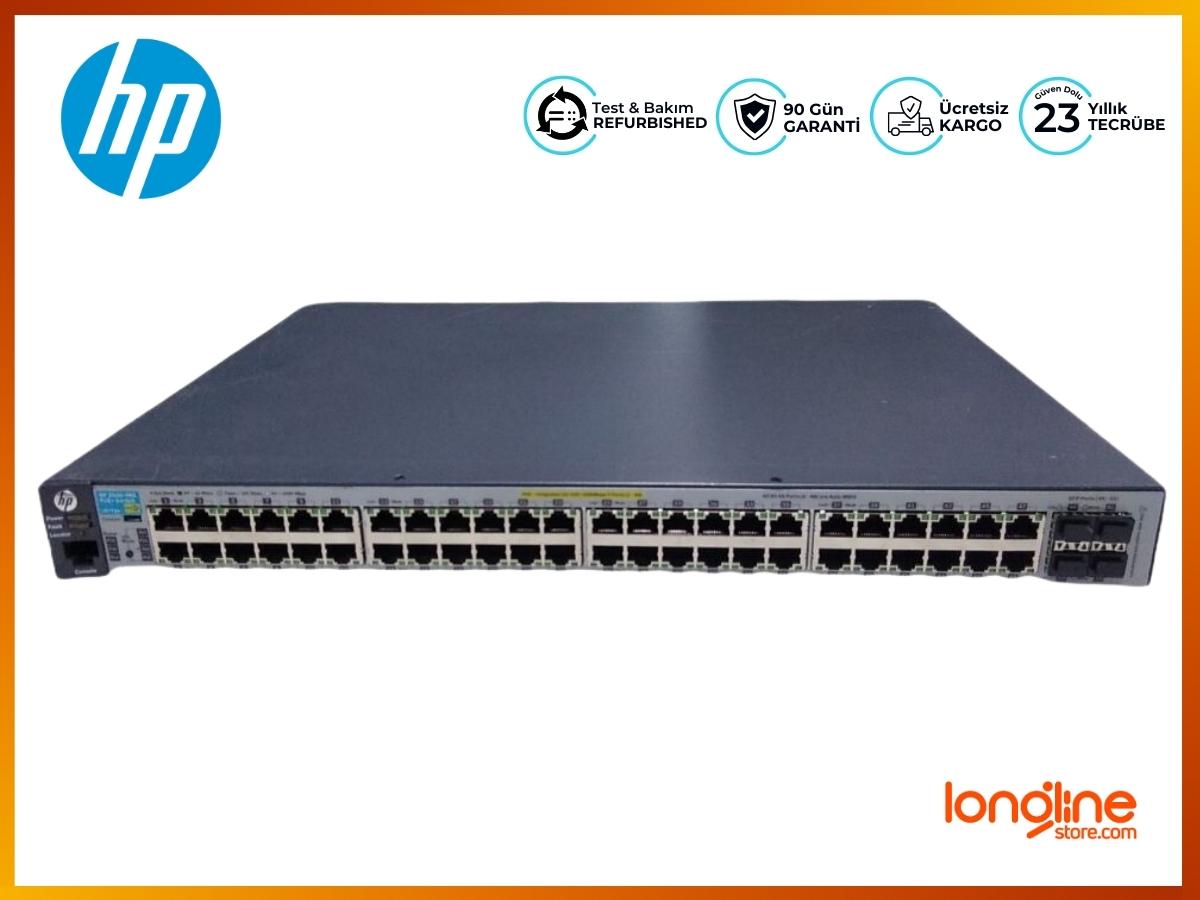

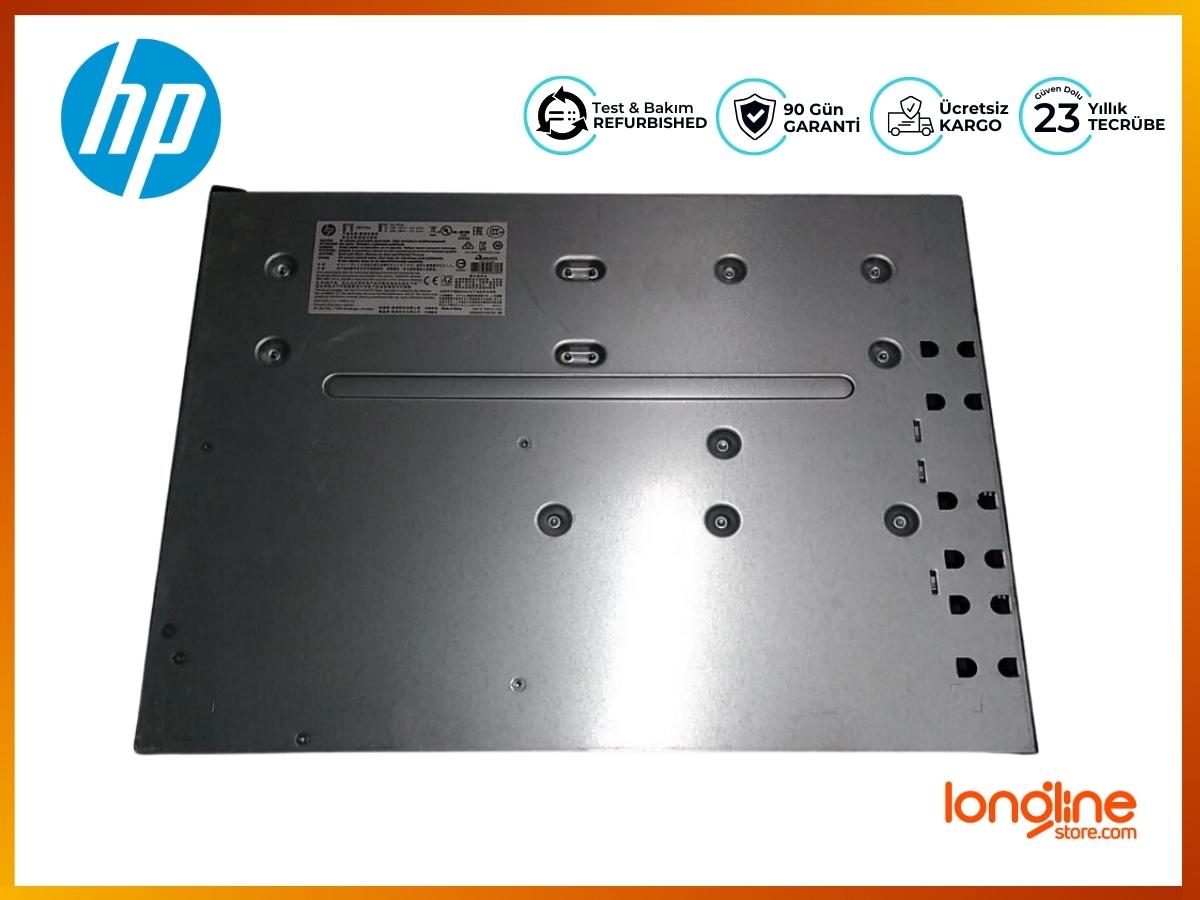

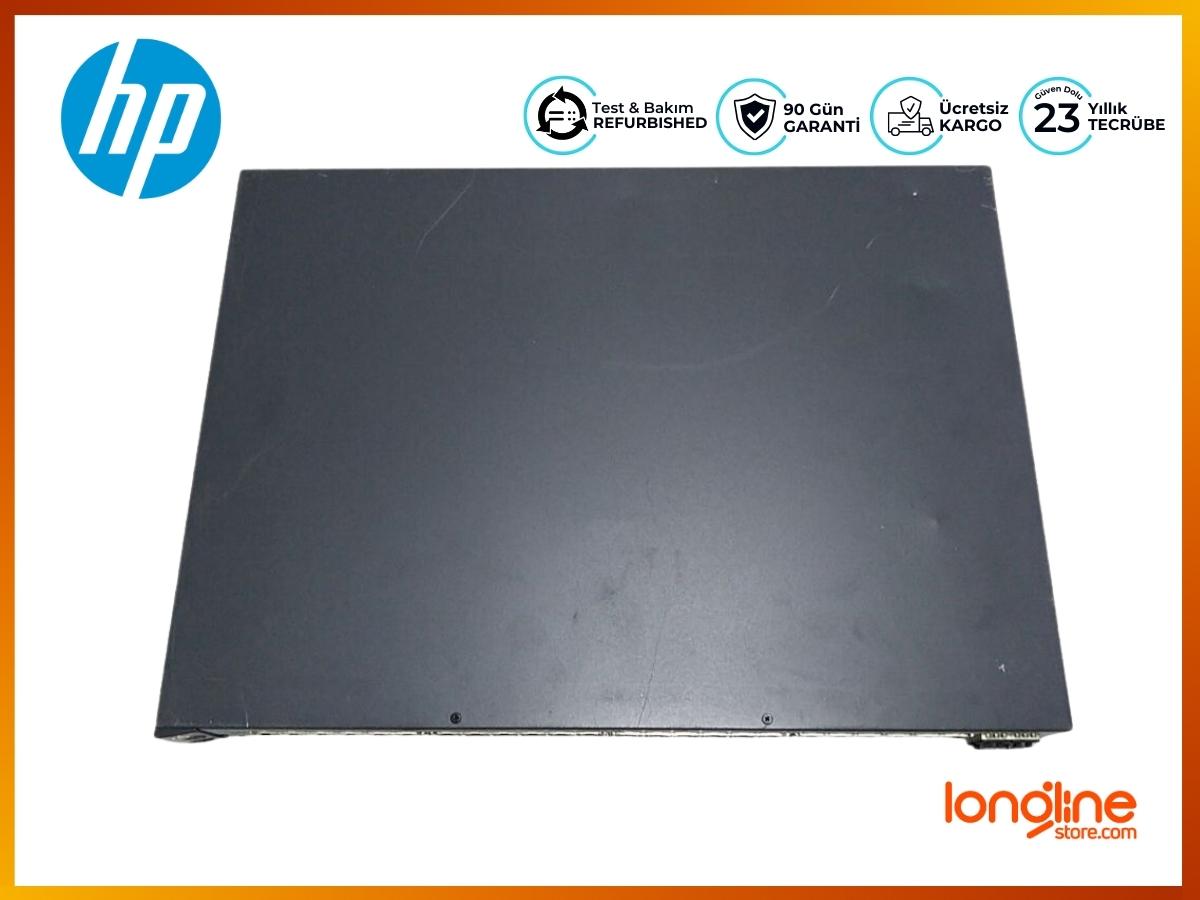

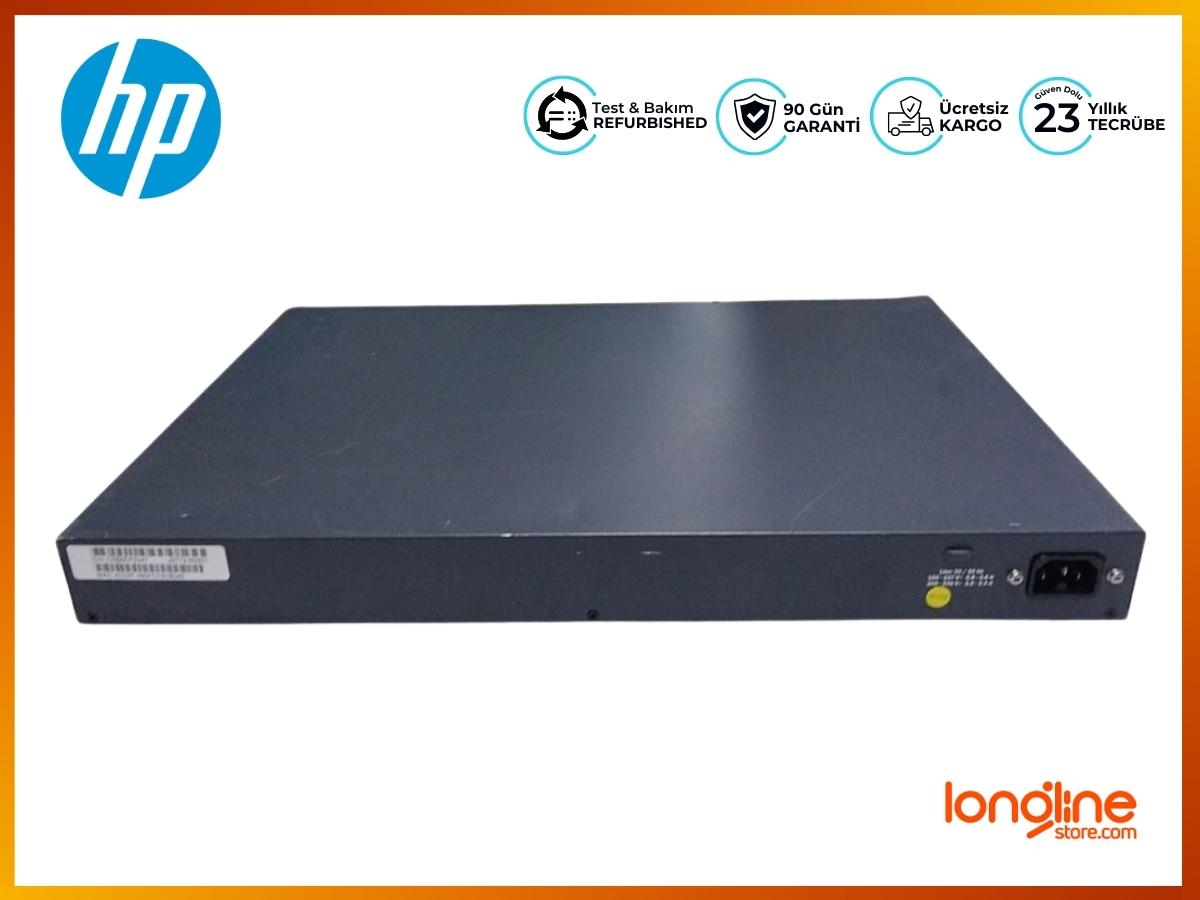

HP 253048GPoE+ Switch J9772A

Dimensions & Weight

Depth: 12.7 in

Height: 1.8 in

Weight: 10.41 lbs

Width: 17.4 in

Environmental Parameters

Humidity Range Operating: 15 - 95% (non-condensing)

Humidity Range Storage: 15 - 90% (non-condensing)

Max Operating Temperature: 113 °F

Max Storage Temperature: 158 °F

Min Operating Temperature: 32 °F

Min Storage Temperature: -40 °F

Flash Memory

Installed Size: 256 MB

Header

Brand: HPE

Compatibility: PC

Country Kits: United States

Localization: English

Manufacturer: ProCurve Networking

Model: 2530-48G-PoE+ Switch

Packaged Quantity: 1

Product Line: HPE

Interface Provided

Comments: PoE+

Connector Type: RJ-45

Interface: Ethernet 10Base-T/100Base-TX/1000Base-T

Qty: 48

Connector Type: SFP+

Qty: 4

Connector Type: RJ-45

Qty:1

Type: Management

Miscellaneous

Authentication Method: RADIUS , Secure Shell v.2 (SSH2) , TACACS+

Compliant Standards: CISPR 22 Class A , CISPR 24 , CSA C22.2 No. 60950-1 , EN 60950-1 , EN 61000-3-2 , EN 61000-3-3 , EN55022 Class A , EN55024 , FCC Class A certified , IEC 60950-1 , IEC 61000-3-2 , IEC 61000-3-3 , IEC 61000-4-11 , IEC 61000-4-2 , IEC 61000-4-3 , IEC 61000-4-4 , IEC 61000-4-5 , IEC 61000-4-6 , IEC 61000-4-8 , UL 60950-1 , VCCI Class A ITE

Encryption Algorithm: SSL

Height (Rack Units): 1

Networking

Compliant Standards: IEEE 802.1ab (LLDP) , IEEE 802.1D , IEEE 802.1p , IEEE 802.1Q , IEEE 802.1s , IEEE 802.1w , IEEE 802.1x , IEEE 802.3 , IEEE 802.3ab , IEEE 802.3ad (LACP) , IEEE 802.3at , IEEE 802.3az , IEEE 802.3u , IEEE 802.3x

Features: Access Control List (ACL) support , ARP support , Auto-uplink (auto MDI/MDI-X) , BOOTP support , Class of Service (CoS) , DHCP support , Dual firmware images , Flow control , Full duplex mode , Generic Attribute Registration Protocol (GARP) , Half duplex mode , IPv6 support , LLDP support , Multicast Suppression , Multiple Spanning Tree Protocol (MSTP) support , Port mirroring , sFlow , SNTP support , STP Root Guard , Trunking , VLAN support

Form Factor: Desktop , Rack-mountable , Wall-mountable

Jumbo Frame Support: 9220 bytes

MAC Address Table Size: 16000 entries

Manageable: Yes

Ports Qty: 48

Power Over Ethernet (PoE): PoE+

Remote Management Protocol: CLI , HTTP , RMON 1 , RMON 2 , RMON 3 , RMON 9 , SNMP 1 , SNMP 2c , SNMP 3 , SSH-2 , Telnet , TFTP

Subcategory: Network hubs and switches

Subtype: Gigabit Ethernet

Type: Switch

Performance

Type: Throughput

Value: 77.3 Mpps

Type: Switching capacity

Value: 104 Gbps

Ports

Qy: 48

Type: 10/100/1000 (PoE)

Ports (2nd)

Qty: 4

Type: Gigabit SFP

Power Device

Frequency Required: 50/60 Hz

Nominal Voltage: AC 120/230 V

Type: Internal power supply

Processor

Clock Speed: 800 MHz

Installed Qty: 1

Manufacturer: ARM

RAM

Installed Size: 128 MB

Technology:  DDR3 SDRAM
