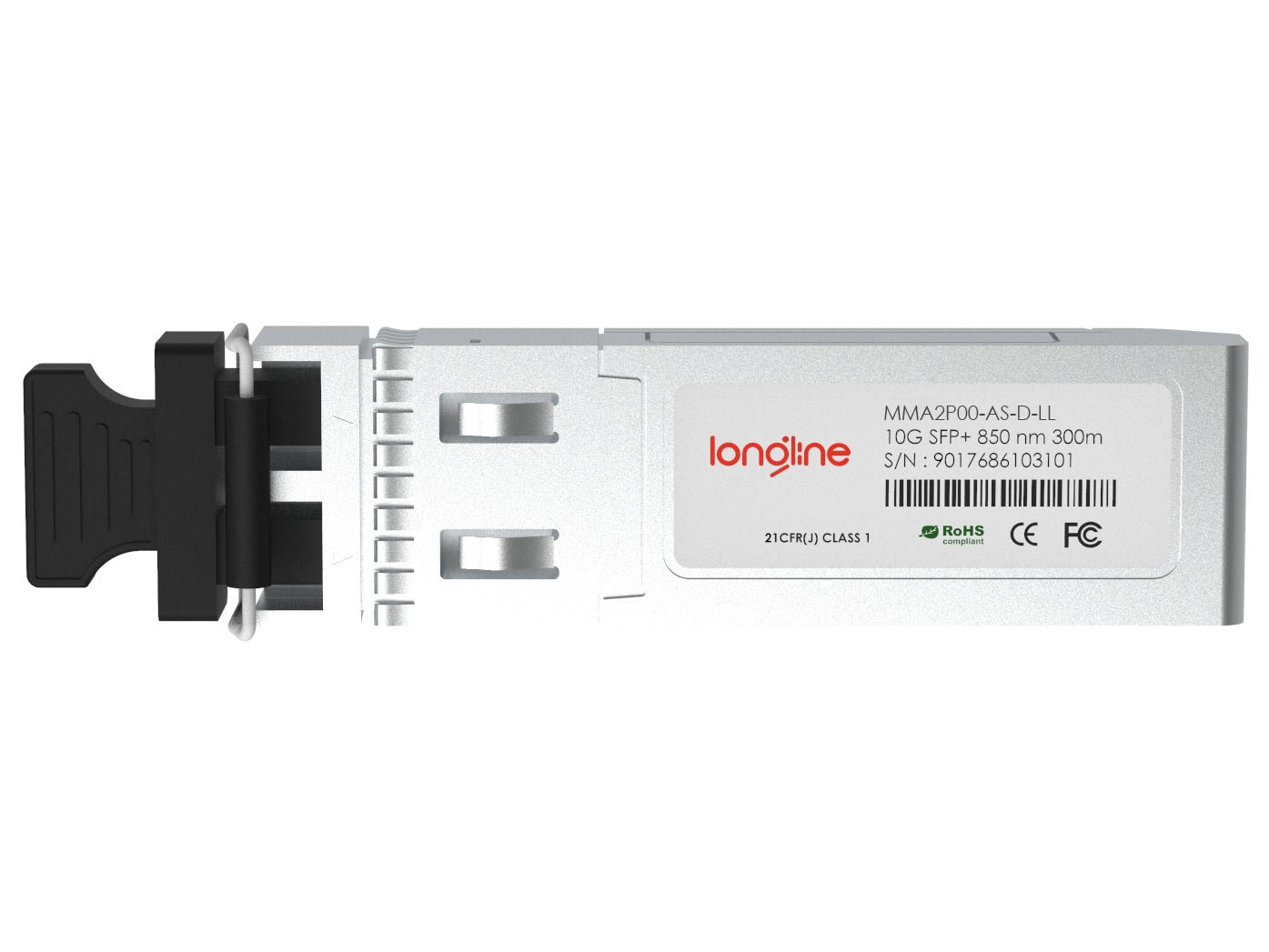

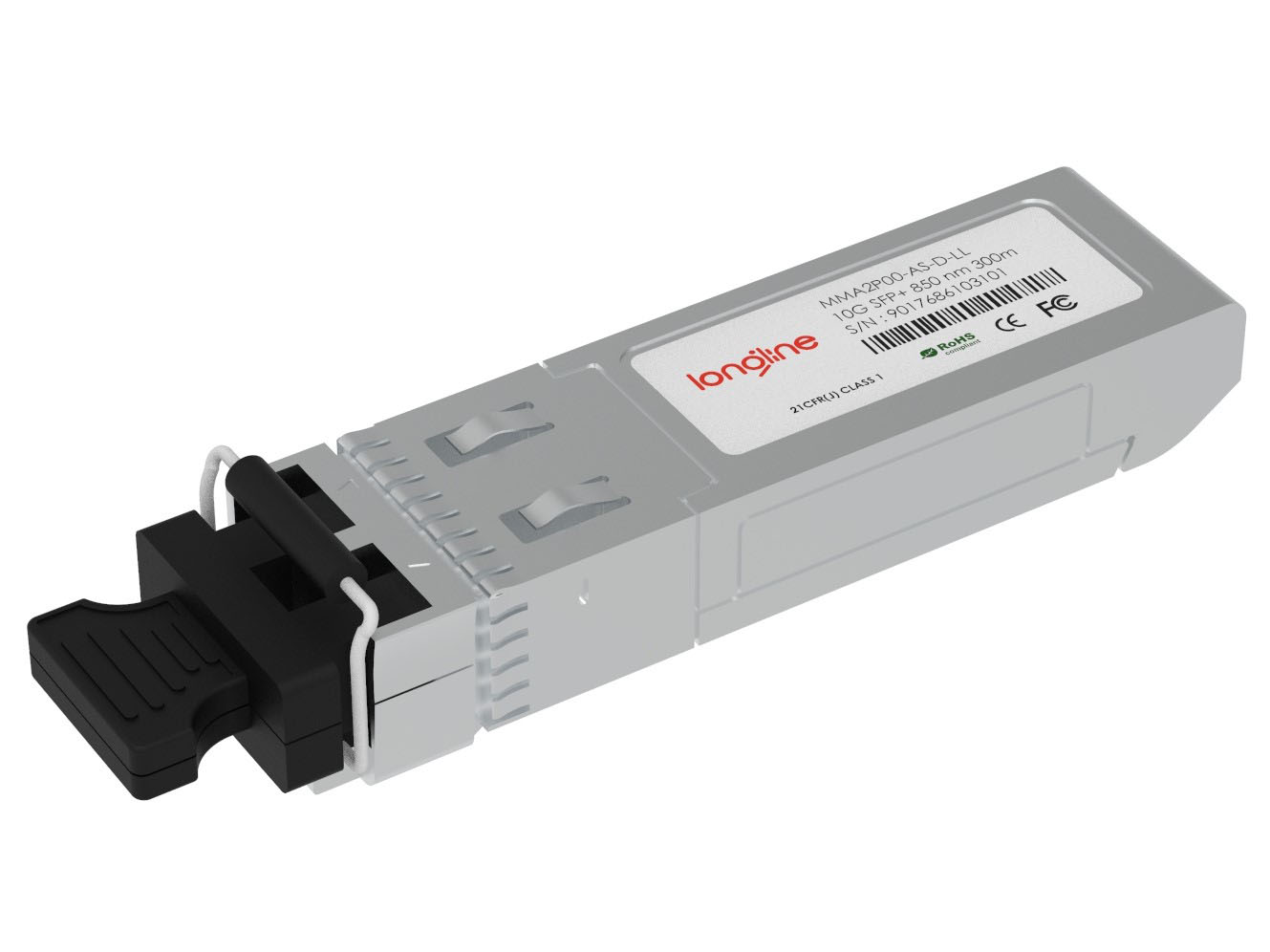

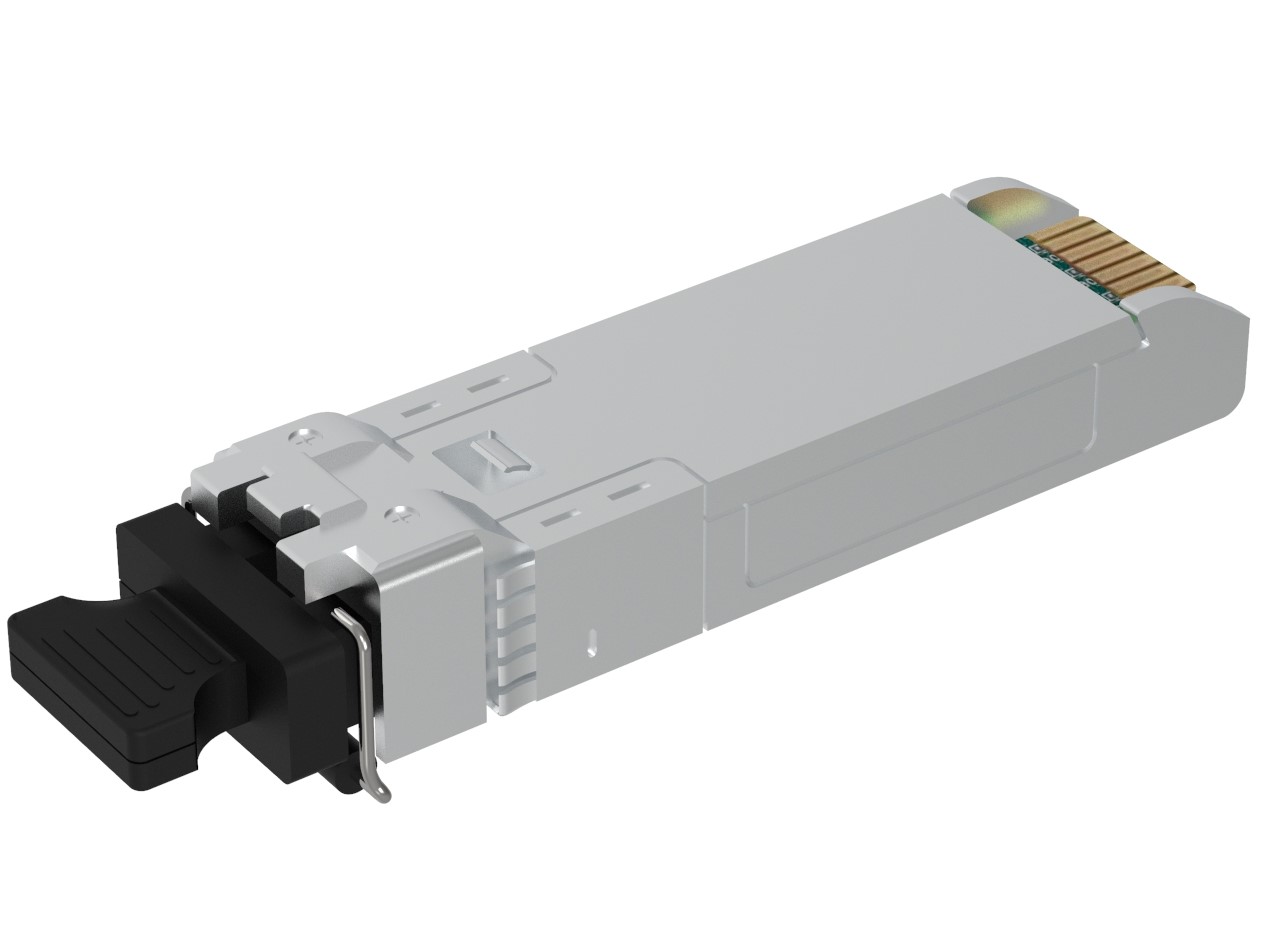

Mellanox MMA2P00-AS compatible SFP28 transceiver provides 10/25GBASE-SR throughput up to 100m over multimode fiber (MMF) using a wavelength of 850nm via an LC duplex connector. This module provides 10G backward compatibility and simplifies network upgrade. It provides connectivity option for 25G Ethernet, 10G Ethernet and data center. It is fully compliant with the SFP28 MSA, SFF-8431, SFF-8432, SFF-8472 and IEEE802.3by standard.
Mellanox Compatible | MMA2P00-AS | Vendor Name | Longline |
Form Factor | SFP28 | Max Data Rate | Dual Rate 10Gbps and 25.78Gbps |
Wavelength | 850nm | Max Cable Distance | 100m@OM4/70m@OM3 at 25G 100m@OM3 at 10G |
Connector | Duplex LC | Media | MMF |
Transmitter Type | VCSEL | Receiver Type | PIN |
TX Power | -6.4~2.4dBm | Receiver Sensitivity | ＜-6dBm |
Powerbudget | -0.4dB | Receiver Overload | 2.4dBm |
Power Consumption | ≤1.2W | Extinction Ratio | 2dB |
CDR | TX & RX Built-in CDR | FEC Function | Support RS-FEC, FC-FEC |
Commercial Temperature Range | 0 to 70°C (32 to 158°F) | Protocols | IEEE 802.3by, SFP28 MSA, SFF-8472, SFF-8432, CPRI, eCPRI |
Core Size | 50/125 µm | Packaging Technology | COB Packaging |
DOM | Supported | Warranty | 5 Years |
