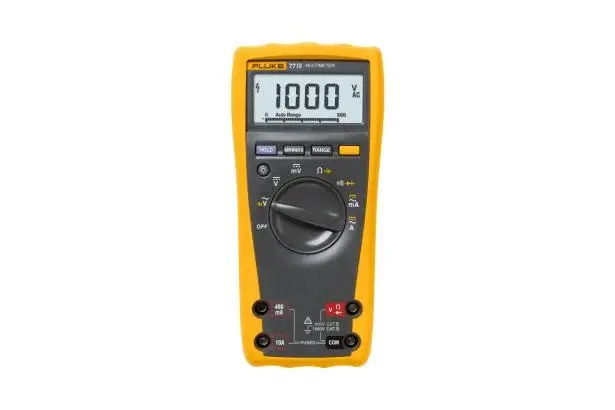

Fluke 77-IV - 3200 Count Dijital Multimetre

Name: Fluke 77-IV - 3200 Count Dijital Multimetre
Brand: FLUKE
SKU: T10043
Price: 20400.00 TRY
Availability: InStock

Ürün Kodu : Fluke 77-IV

17.000 TL + KDV

Fiyat Alarmı

Listeye Ekle Tavsiye Et

Specifications
Voltage DC	Range	6.000 V – 1000 V
	Best accuracy	±(0.3% + 1)
	Best resolution	0.1 mV
Voltage AC	Range	600.0 mV – 1000V
	Best accuracy	±(2.0% + 2)
	Best resolution	1.0 mV
Amps AC	Range	60.00 mA – 10 A
	Best accuracy	2.5% + 2
	Best resolution	0.01 mA
Amps DC	Range	60.00 mA – 10A
	Best accuracy	1.5% + 2
	Best resolution	0.01 mA
Resistance	Range	600.0 Ω – 50 MΩ
	Best accuracy	±(0.5% + 1)
	Best resolution	0.1 Ω
Capacitance	Range	1nF – 9,999 μF
	Best accuracy	±(1.2% + 2)
	Best resolution	1 nF
Frequency	Range	99.99Hz – 99.99kHz
	Best accuracy	±(0.1% + 1)
	Best resolution	0.01 Hz
Safety	ANSI / ISA S82.02.01, CSA C22.2–1010.1, IEC 61010 to 1000 V Measurement Category III, 600 V Measurement Category IV
Certifications	CSA, TÜV (EN61010), Π, (N10140)
General Specifications
Maximum voltage between any terminal and earth ground	1000 V
Surge protection	8 kV peak per IEC 61010
Ω Fuse for mA inputs	440 mA, 1000 V FAST Fuse
Ω Fuse for A inputs	11 A, 1000 V FAST Fuse
Display	Digital	6000 counts, updates 4/sec
	Bar graph	33 segments, updates 32/sec
	Frequency	10,000 counts
	Capacitance	1,000 counts
Altitude	Operating	2,000 meters
Altitude	Storage	12,000 meters
Temperature	Operating	-10°C to + 50°C
Temperature	Storage	-40°C to + 60°C
Temperature coefficient	0.1 x (specified accuracy / °C (< 18°C or > 28°C)
Electromagnetic compatibility (EN 61326–1:1997)	In an RF field of 3 V/M, accuracy = specified accuracy except in temperature: specified accuracy ±5°C (9°F)
Relative humidity (maximum non-condensing)	90% to 35°C 75% to 40°C 45% to 50°C
Battery life	400 hours typical (alkaline)
Size (H x W x L)	4.3 x 9 x 18.5 cm
Weight	420 g
