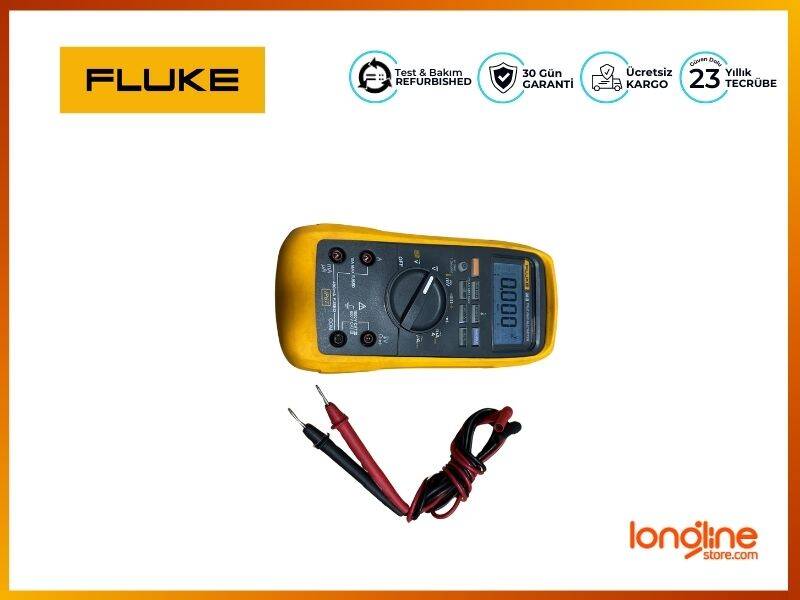

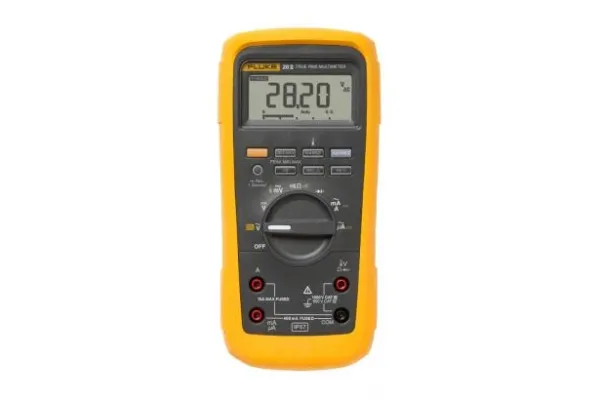

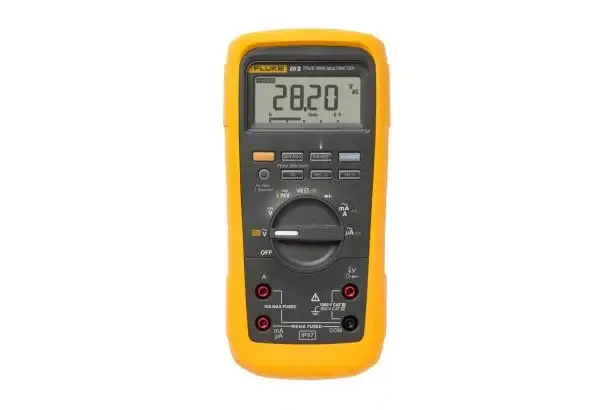

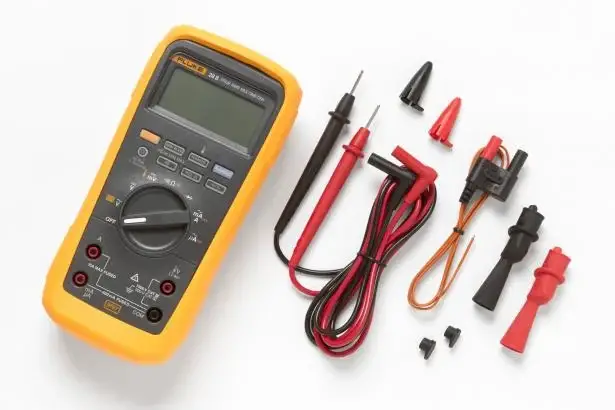

Fluke 28-II - Endüstriyel Multimetre Ölçü Aleti

Ürün Kodu : Fluke 28-II

31.100 TL + KDV

Measure up to 1000 V AC and DC
Measure up to 10 A (20 A for 30 seconds)
10,000 μF capacitance range
Frequency to 200 kHz
Extended AC voltage bandwidth– 15 Hz to 20 kHz
Built in thermometer conveniently allows you to take temperature readings without having to carry a separate instrument
Resistance, continuity and diode test
Min/Max and average recording to capture variations automatically
Peak min-max
Hi resolution 20,000 count display mode
True-rms ac voltage and current for accurate measurements on non linear signals
Backlit keypad buttons allow for easy visibility in low-lit areas
Large display digits and 2 level bright white backlight for increased visibility

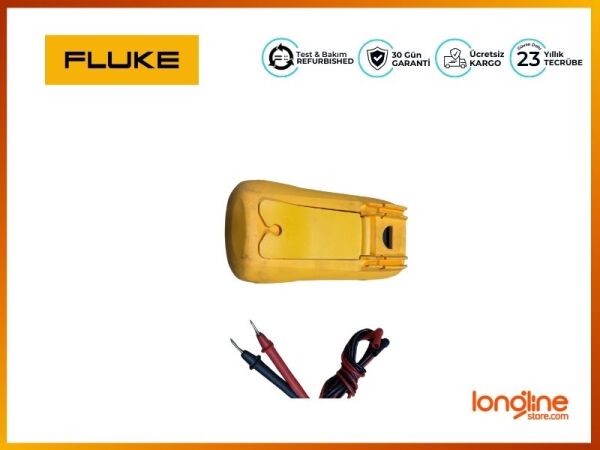

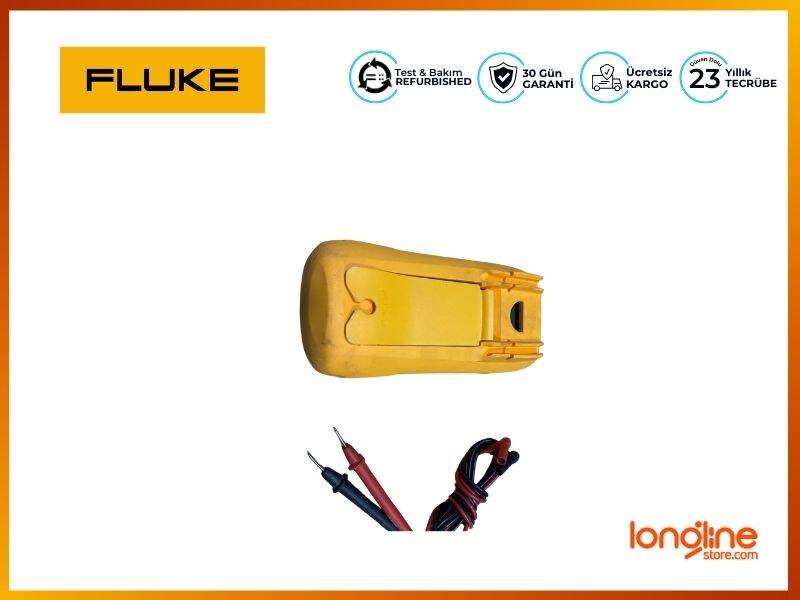

Reversible holster for added protection when not in use
Withstands hazardous 8,000 volt spikes caused by load switching and faults on industrial circuits and complies with second edition IEC and ANSI electrical safety standards
Long battery life (800 hours)
Relative mode to remove test lead resistance from low ohms measurements
Auto and manual ranging for maximum flexibility
Optional magnetic hanger for easy setup and viewing while freeing your hands for other tasks

Accuracy Specifications
DC voltage	Range	0.1 mV to 1000 V
DC voltage	Accuracy	0.05% + 1
AC voltage	Range	0.1 mV to 1000 V
AC voltage	Accuracy	0.7% + 4
DC current	Range	0.1 μA to 10 A
DC current	Accuracy	0.2% + 4
AC current	Range	0.1 μA to 10 A
AC current	Accuracy	1.0% + 2
Resistance	Range	0.1 Ω to 50 MΩ
Display counts	6000
Capacitance	1 nF to 9999 μF
Frequency	0.5 Hz to 199.99 kHz
Temperature	-200°C to +1090°C
Low pass filter (Measurement on VSD’s)	Yes
Compliance	CAT IV 600 V , CAT III 1000 V
IP rating	IP 67
Power	Three AA batteries
Battery life	800 hours
General Specifications
Display	Bar graph/backlight	Yes/Yes
Data storage	Peak transient capture	250 μS
	Min/Max/Avg	Yes
	Reading hold	Yes
Other features	Relative readings (zero)	Yes
Other features	Battery type	Three AA batteries
Warranty and protection	Safety rating	CAT IV 600 V/CAT III 1000 V
	Mine safety	MSHA Approved
	External protection	Rubber holster
	Drop test	10 feet drop test
	Dustproof/waterproof	Yes, IP 67 rated
	Warranty	Limited lifetime
	Size (H x W x L) with holster	6.35 x 10.0 x 19.81 cm (2.5 x 3.93 x 7.8 in)
	Weight with holster	698.5 g (1.54 lb)
