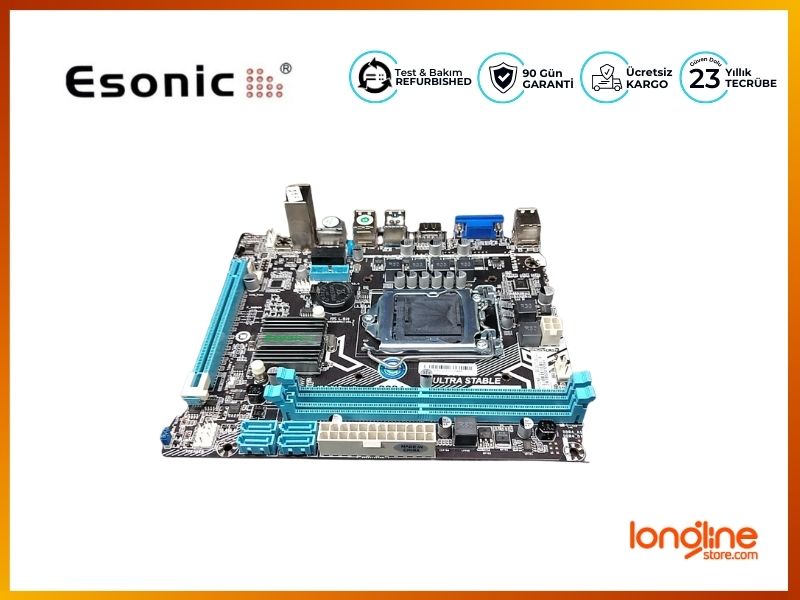

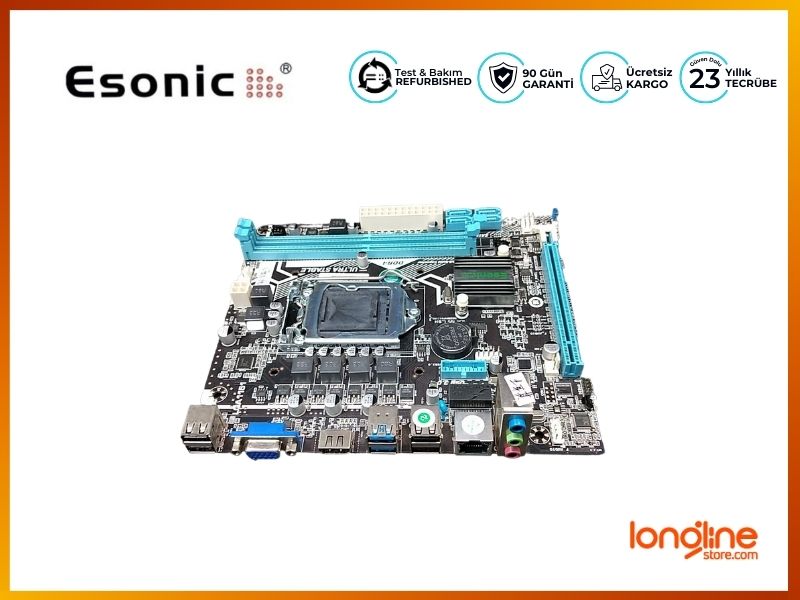

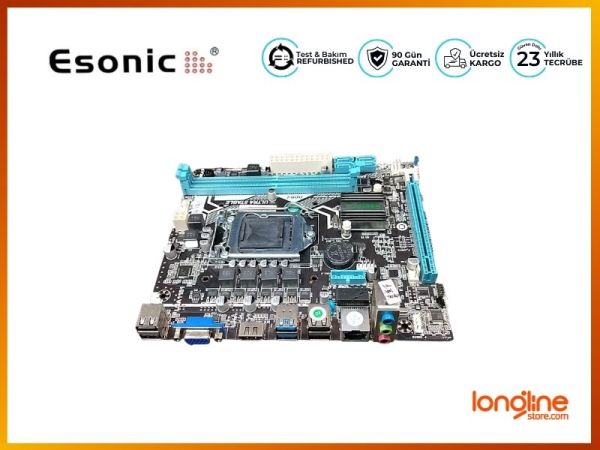

Esonic H310CNB - U Intel H310 DDR4 Soket 1151 mATX Anakart

Processor

Support Intel® Socket 1151 for 6th/7th/8th/9th Generation Core™i7/ Core™  i5/Core™ i3/Pentium®/Celeron® Processors

Supports Intel® 14 nm CPU

Supports Intel® Turbo Boost Technology 2.0

Chipset

Intel® H310C Chipset

Memory

Support

2 * DDR4 2133MHz DIMM ,

Dual channel memory architecture

Graphic

Integrated Graphics Processor- Intel® HD Graphics support

Multi-VGA output support : HDMI / VGA ports

Slots

1 x PCIe 3.0/2.0 x16 slot

Storage

4 x SATA 6Gb/s Ports

LAN

Realtek Chip, 1 x 100M(Optional 1000M)

Audio

Realtek Chip, ALC 662 6-channel audio

USB

4 * USB 3.0 port (2 at back panel, blue, 2 at mid-board)

6 * USB 2.0 port (4 at back panel, black, 2 at mid-board)

Back Panel I/O

1 x VGA Port

1 x HDMI Port

1 x LAN (RJ45)  Port

2 x USB 3.1 Gen 1 Ports(Blue)

4 x USB 2.0  Ports

3 x flexible audio jacks

Internal I/O

1 x USB 3.1 Gen 1 connector(19pin), supports 2*USB 3.1 Gen 1 ports

1 x USB 2.0 connector, supports 2*USB 2.0 ports

4 x SATA 6Gb/s Ports

2 x 4 -pin CPU_FAN/SYS_FAN connectors

1 x 24-pin ATX power connector

1 x 4-pin 12V ATX Power connectors

1 x F_Audio connector

1 x Internal Speaker connector

1 x F_Panel  connector
