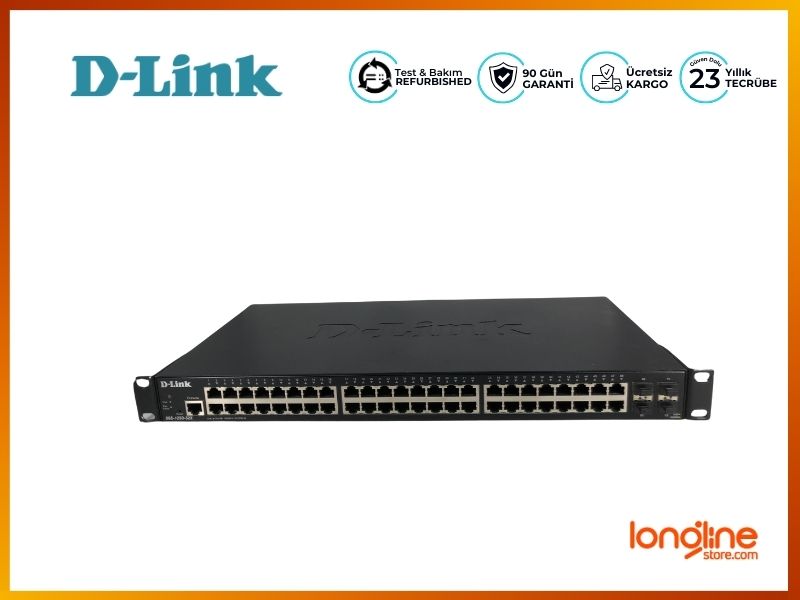

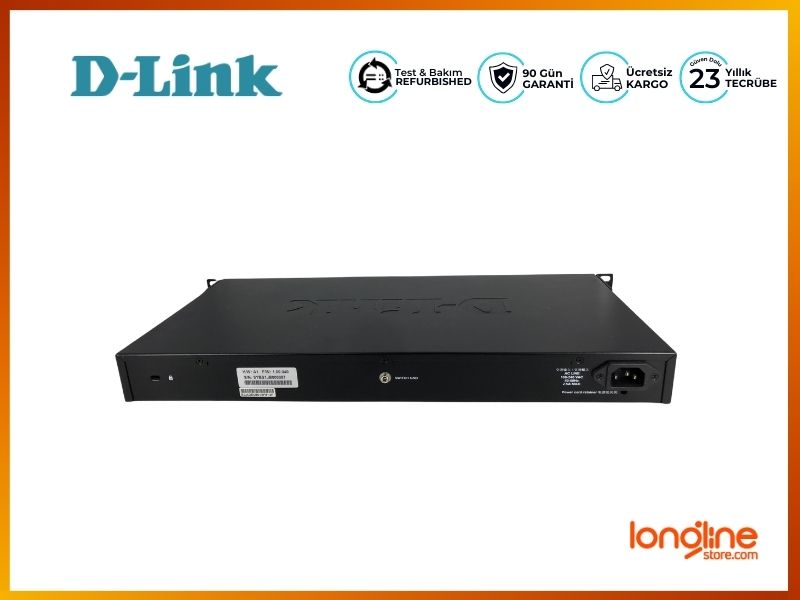

D-Link DGS DGS-1250-52X-6KV 48 Port Gigabit Switch with 4 x 10Gigbit

Interfaces

• 48 x 10/100/1000BASE-T
• 4 x 10G SFP+ ports



LEDs

• Power
• Link/Activity/Speed (per port)
• Console
• Fan Error



Port Standards

• IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
• IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
• IEEE 802.3u 100BASE-FX 100 Mbps over fiber optic
• IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted-pair copper)
• IEEE 802.3z 1000BASE-X 1 Gbps over fiber optic
• IEEE 802.3az Energy-Efficient Ethernet (EEE)
• IEEE 802.3x Flow Control
• IEEE 802.3ae 10 Gigabit Ethernet



Network Cables

• UTP Cat. 5, Cat. 5e (100 m max.)



Duplex Mode

• Full/Half-duplex for 10/100 Mbps
• Full-duplex for 1000 Mbps



Media Interface Exchange

• Auto MDI/MDIX adjustment for all twisted-pair ports



Performance

Switching Capacity

• 176 Gbps



Transmission Method

• Store-and-forward



MAC Address Table

• 32K



Static MAC Addresses

• 256 entries



Maximum 64 Byte Packet Forwarding Rate

• 130.95 Mpps



Packet Buffer Memory

• 16 Mbits



CPU Memory

• 2G DDR3



Flash Memory

• 64 MB



Software

L2 Features

• IGMP Snooping
• IGMP v1/v2/v3 Snooping
• Supports 256 IGMP groups
• Supports at least 64 static multicast addresses
• IGMP per VLAN
• Supports IGMP Snooping Querier
• Loopback Detection
• 802.3ad Link Aggregation:
• Supports maximum 8 groups per per device and 8 ports per group
• LLDP
• LLDP-MED
• Jumbo Frame
• Up to 12,000 bytes
• Spanning Tree Protocol
• 802.1D STP
• 802.1W RSTP
• 802.1s MSTP
• Flow Control
• 802.3x Flow Control
• HOL Blocking Prevention
• Port Mirroring
• One-to-One
• Many-to-One
• Supports Mirroring for Tx/Rx/Both
• Multicast Filtering
• Forwards all registered groups
• Filters all unregistered groups
• Configurable MDI/MDIX
• MLD snooping v1/v2 awareness (256 groups)



VLAN

• 802.1Q
• VLAN Group
• Max. 4094 static VLAN groups
• Configurable VID from 1 - 4094
• Asymmetric VLAN
• Auto Voice VLAN
• Max. 10 user-defined OUI
• Max. 8 default OUI
• Auto Surveillance VLAN



Quality of Service (QoS)

• 802.1p Quality of Service
• 8 queues per port
• Queue Handling
• Strict
• Weighted Round Robin (WRR)
• Bandwidth Control
• Port-based (ingress/egress, min granularity 10/100/1000 is 16 Kbps)
• QoS based on:
• 802.1p priority queues
• DSCP
• MAC address
• EtherType
• IP address
• Protocol type
• ToS
• IP preference
• IPv6 Traffic Class
• TCP/UDP port



L3 Features

• IP interface
• Supports 4 interfaces
• IPv6 Neighbor Discovery (ND)
• Static routing
• 124 IPv4 static route entries
• 50 IPv6 static route entries



Access Control List (ACL)

• Max. 50 access lists
• Max. 768 rules shared by IPv4 and MAC (384 rules shared by IPv6)
• Each rule can only be associated with a single port
• ACL based on
• MAC address

    - 802.1p priority mask

    - VID mask

    - Source/destination MAC address mask

    - EtherType mask

• IP address

    - Source/destination IP address mask

    - DSCP mask

    - Protocol type mask

    - TCP/UDP port number mask

• IPv6 address

    - Source/destination IP address mask

    - DSCP mask

    - Protocol type mask

    - TCP/UDP port number mask

    - IPv6 traffic class mask



Security Features

• Broadcast/Multicast/Unicast Storm Control
• D-Link Safeguard Engine
• Traffic segmentation
• SSH v2
• TLS v.1.2
• DoS attack prevention
• 802.1X Port-based Access Control
• Port Security
• Supports up to 64 MAC addresses per port
• ARP Spoofing Prevention
• Max. 127 entries
• DHCP Server Screening
• IP-MAC-Port Binding (Smart Binding)
• ARP Inspection

    - Max. 64 entries

• IPv4 Inspection

    - Max. 127 entries

• IPv6 Inspection

    - Max. 63 entries

• DHCP Snooping

    - Max. 512 entries



AAA

• 802.1X Authentication
• Supports local/RADIUS database
• Supports port-based access control
• Supports EAP, OTP, TLS, TTLS, PEAP
• Max. 128 entries when using local database
• IPv6 RADIUS server
• Support MD5 authentication



OAM

• Cable diagnostics
• Factory reset



Management

• Web-based GUI
• D-Link Network Assistant
• Full CLI
• Telnet Server
• TFTP Client
• Configurable MDI/MDIX
• SNMP
• Supports v1/v2c/v3
• SNMP Trap
• Backup/upgrade firmware
• Smart Wizard
• Upload/download configuration file
• BootP/DHCP Client
• System Log
• Max. 500 log entries
• SNTP
• ICMP v6
• IPv4/v6 Dual Stack
• DHCP Auto Configuration
• Time setting
• SNTP
• RMONv1
• Trusted host
• Dual image
• Dual configuration



Green V3.0 Technology

• Power Saving by:
• Link Status
• System hibernation
• Port shut off
• Cable length detection



MIBs

• RFC1212 Concise MIB Definitions
• RFC1213 MIBII
• RFC1215 MIB Traps Convention
• RFC1493 Bridge MIB
• RFC1157, RFC2573, RFC2575, RFC2576 SNMP MIB
• RFC1442, RFC1901, RFC1902, RFC1903, RFC1904, RFC1905,
• RFC1906, RFC1907, RFC1908, RFC2578, RFC3418 SNMPv2 MIB
• RFC271, RFC1757, RFC2819 RMON MIB
• RFC2021 RMONv2 MIB
• RFC1398, RFC1643, RFC1650, RFC2358, RFC2665 Ether-like MIB
• RFC2674 802.1p MIB
• Interface Group MIB
• RFC2618 RADIUS Authentication Client MIB
• RFC4022 MIB for TCP
• RFC4113 MIB for UDP
• RFC2389 MIB for Diffserv.
• RFC2620 RADIUS Accounting Client MIB
• Private MIB
• DDP MIB
• LLDP-MED MIB



RFC Standards

• RFC791 IP
• RFC768 UDP
• RFC793 TCP
• RFC792 ICMPv4
• RFC2463, RFC4443 ICMPv6
• RFC826 ARP
• RFC1321, RFC2284, RFC2865, RFC2716, RFC3580 Extensible
• Authentication Protocol (EAP)
• RFC2573 SNMP Applications
• RFC2461, RFC4861 Neighbor Discovery for IPv6
• RFC2462, RFC4862 IPv6 Stateless Address Auto-configuration (SLAAC)
• RFC2464 IPv6 over Ethernet and definition
• RFC4291 IPv6 Addressing Architecture
• RFC2893, RFC4213 IPv4/IPv6 dual stack function



Physical Parameters

Dimensions (L x W x H)

• 440 x 210 x 44 mm



Weight

• 3.01 kg



Power Input

• 100 to 240 V AC 50/60 Hz internal universal power supply



Maximum Power Consumption

• 51 W/100 V
• 51.2 W/240 V



Standby Power Consumption

• 23 W/100 V
• 23.5 W/240 V



Acoustics

• Max: 50.7 dB(A)
• Max: 39.0 dB(A)



Heat Dissipation

• 173.91 BTU/hr (100 V)
• 174.592 BTU/hr (240 V)



MTBF

• 589,984.72 hours



Temperature

• Operating: -5 to 50 °C
• Storage: -20 to 70  °C



Humidity

• Operating: 0% to 95% non-condensing
• Storage: 0% to 95% non-condensing



Safety

• CB, UL, BSMI, CCC



EMI

• CE Class A, VCCI Class A, FCC Class A, IC, BSMI
