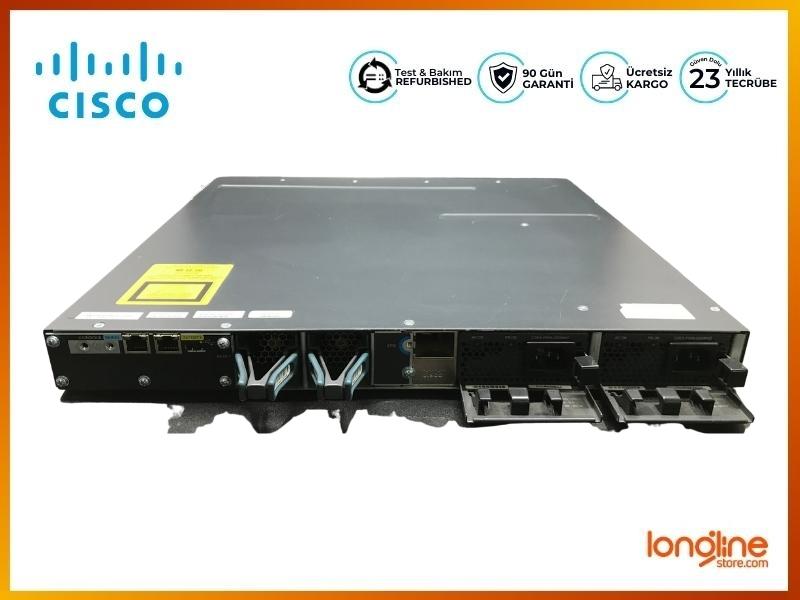

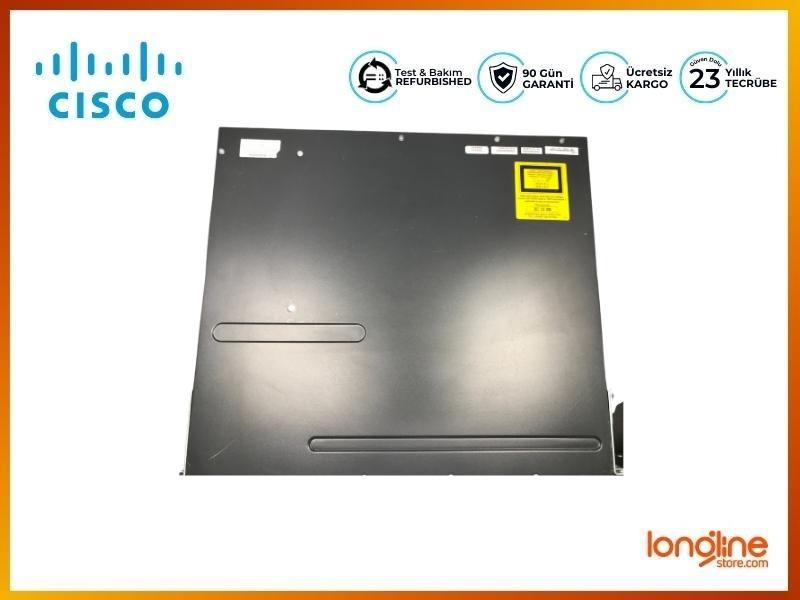

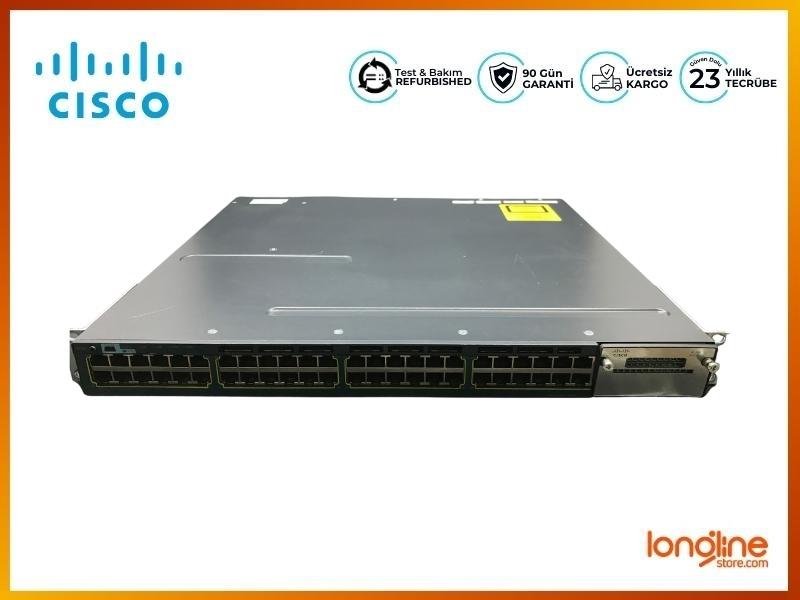

Cisco WS-C3560X-48T-S Catalyst 3560-X 48-Port Gigabit Switch

Manufacturer

Cisco Systems, Inc

Manufacturer Part Number

WS-C3560X-48T-S

Product Type

Switch - 48 ports - L3 - Managed

Form Factor

Rack mountable - 1U

Switch Ports

48 x 10/100/1000 Ethernet Ports Ethernet Ports

Routing Protocol

RIP-1, RIP-2, HSRP, static IP routing, RIPng

Remote Management Protocol

SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, TFTP, SSH, CLI

Authentication Method

Kerberos, Secure Shell (SSH), RADIUS, TACACS+

Features

Hot swap module replacement, Layer 3 switching, Layer 2 switching, dynamic IP address assignment , DHCP support, auto-negotiation, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, traffic shaping, Broadcast Storm Control, High Availability, Multicast Storm Control, Unicast Storm Control, Rapid Spanning Tree Protocol (RSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, MLD snooping, Dynamic ARP Inspection (DAI), Per-VLAN Spanning Tree Plus (PVST+), EIGRP Stub Routing

Compliant Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ae

DRAM Memory

256 MB

Flash Memory

64 MB Flash

Status Indicators

Port status, link activity, port transmission speed, port duplex mode, power, system

Connectivity Slots

Interfaces

48 x 10Base-T/100Base-TX/1000Base-T - RJ-45
USB : 1 x 4 PIN USB Type A
1 x console - mini-USB Type B - management
1 x RS-232 - RJ-45 - management
1 x 10Base-T/100Base-TX - RJ-45 - management

Expansion Slot(s)

1 (total) / 1 (free) x Expansion Slot

Power Supply

Power Device

Power supply - redundant - plug-in module

Installed Qty

1 (installed) / 2 (max)

Power Redundancy

Optional

Power Redundancy Scheme

1+1 (with optional power supply)

Voltage Required

AC 120/230 V ( 50/60 Hz )

Features

Redundant Power System (RPS) connector

Dimensions / Weight / Miscellaneous

Width

44.5 cm

Depth

46 cm

Height

4.5 cm

Weight

7.3 kg

Rack Mounting Kit

Optional

MTBF

186,778 hour(s)

Compliant Standards

CE, TUV GS, CISPR 22 Class A, GOST, cUL, NOM, VCCI Class A ITE, EN55022 Class A, CB, AS/NZS 60950-1, AS/NZ 3548 Class A, CCC, RoHS, UL 60950-1, IEC 60950-1, EN 60950-1, KCC, FCC Part 15 A, CSA C22.2 No. 60950-1

System Software

Software Included

Cisco IOS IP Base
