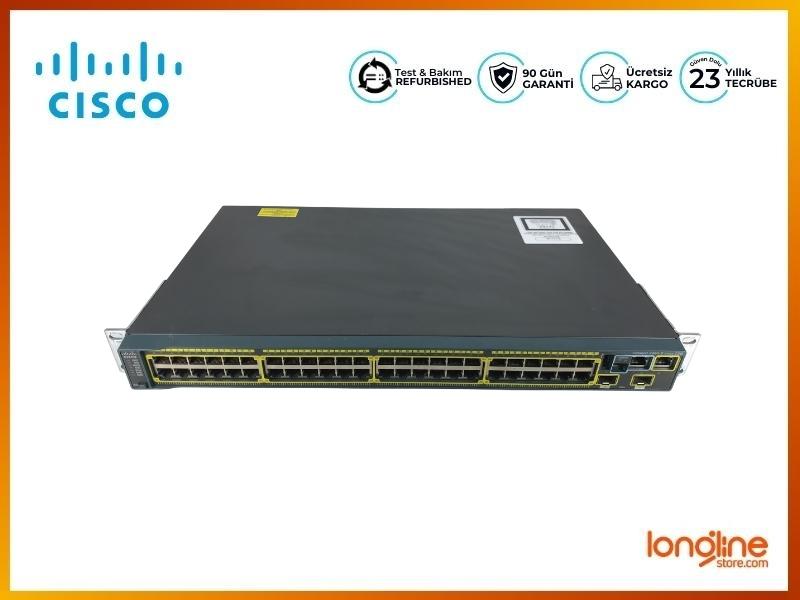

Cisco WS-C2960S-48TD-L 48-Ports GigE 2 x 10G SFP Switch

General Information

Device Type

Switch - 48 ports - Managed

Enclosure Type

Rack-mountable - 1U

Ports

48 x 10/100/1000 + 2 x 10 Gigabit SFP+

Power Over Ethernet (PoE)

Yes

Performance

Switching capacity : 176 Gbps
Forwarding performance (64-byte packet size) : 101.2 Mpps

MAC Address Table Size

8K entries

Remote Management Protocol

SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH

Encryption Algorithm

SSL

Authentication Method

Secure Shell (SSH), RADIUS, TACACS+

Features

Layer 2 switching, auto-sensing per device, dynamic IP address assignment , auto-negotiation, BOOTP support, ARP support, load balancing, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, DiffServ support, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support, Quality of Service (QoS), Link Aggregation Control Protocol (LACP), Port Security, MAC Address Notification, Remote Switch Port Analyzer (RSPAN)

Compliant Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP)

RAM

128 MB

Flash Memory

64 MB Flash

Status Indicators

Port status, link activity, port transmission speed, port duplex mode, power, system

Expansion / Connectivity

Interfaces

48 x 10Base-T/100Base-TX/1000Base-T - RJ-45
USB : 1 x 4 PIN USB Type A
1 x console - mini-USB Type B - management
1 x console - RJ-45 - management
1 x 10Base-T/100Base-TX - RJ-45 - management
2 x SFP+

Expansion Slot(s)

1 (total) / 1 (free) x Stacking Module

Power

Power Device

Power supply - internal

Voltage Required

AC 120/230 V ( 50/60 Hz )

Power Consumption Operational

55 Watt

Miscellaneous

Width

17.5 in. (44.5 cm)

Depth

11.8 in. (29.9 cm)

Height

1.8 in. (4.5 cm)

Weight

9.5 lbs (4.3 kg)

Rack Mounting Kit

Optional

MTBF

311,291 hour(s)

Compliant Standards

TUV GS, CISPR 22 Class A, GOST, BSMI CNS 13438 Class A, CISPR 24, NOM, VCCI Class A ITE, EN55024, CB, EMC, MIC, IEC 60950-1, EN 60950-1, UL 60950-1 Second Edition, RoHS, CSA C22.2 No. 60950-1, FCC Part 15 B Class A

Software / System Requirements

Software Included

Cisco IOS LAN Base

Service & Support

Limited lifetime warranty

Service & Support Details

Limited warranty - replacement - lifetime - response time: next business day
Limited warranty - power supply and fans - 5 years
New releases update

Environmental Parameters

Min Operating Temperature

23 °F (-5 °C)

Max Operating Temperature

104 °F (40 °C)

Humidity Range Operating

10 - 95% (non-condensing)

Min Storage Temperature

-13 °F (-25 °C)

Max Storage Temperature

158 °F (70 °C)

Humidity Range Storage

10 - 95% (non-condensing)
