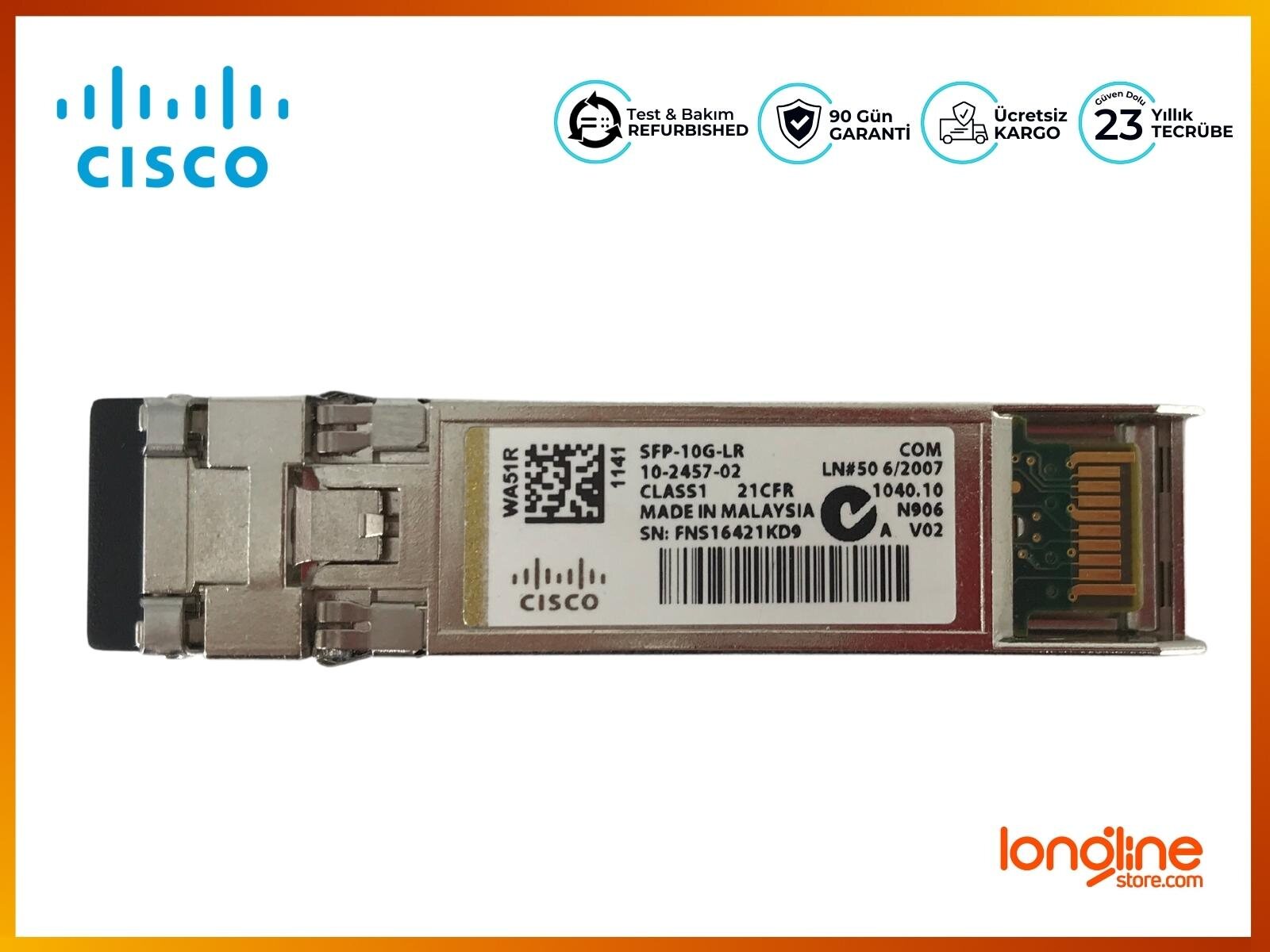

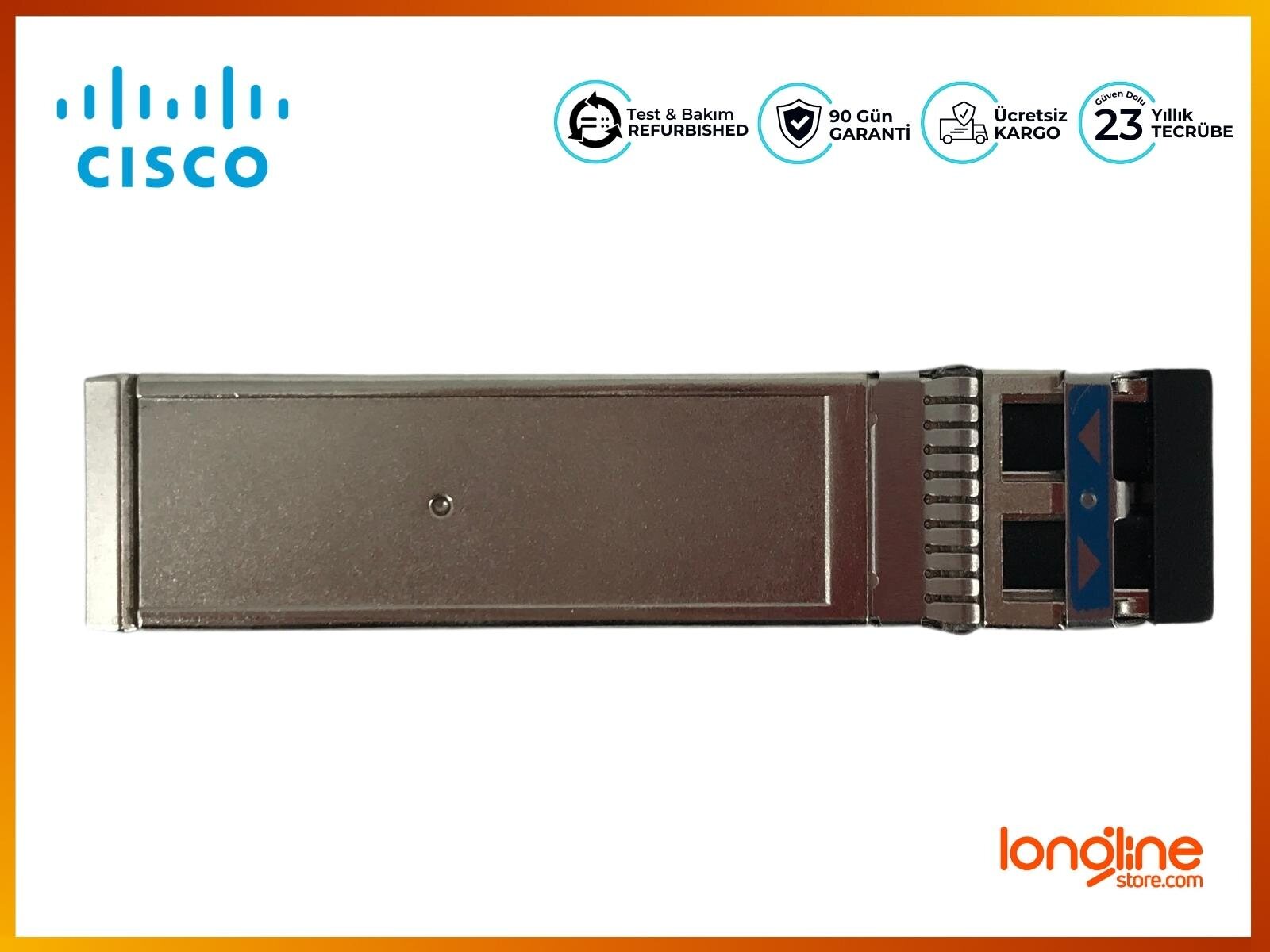

CISCO SFP-10G-LR 10G BASE LR SFP MODULE

Features and benefits

Main features of Cisco 10GBASE SFP+ modules include:

• Smallest 10G form factor
• Commercial temperature (0 to 70°C) only
• Supports 10GBASE Ethernet only
• Hot-swappable input/output device that plugs in to an Ethernet SFP+ port of Cisco platforms
• Provides flexibility of interface choice
• Supports digital optical monitoring capability
• Cisco quality identification (ID) feature that enables a Cisco platform to identify - optics supported by Cisco technology
• Optical interoperability with 10GBASE XENPAK, 10GBASE X2, and 10GBASE XFP interfaces on the same link

Cisco SFP-10G-LR-S

The Cisco 10GBASE-LR module supports a link length of 10 kilometers on standard single-mode fiber (SMF, G.652). SFP-10G-LR-S does not support FCoE.

Cisco SFP-10G-ER-S

The Cisco 10GBASE-ER module supports a link length of up to 40 kilometers on standard single-mode fiber (SMF, G.652). SFP-10G-ER-S does not support FCoE.

Cisco SFP-10G-ZR-S

The Cisco SFP-10G-ZR module supports link lengths of up to about 80 kilometers on standard single-mode fiber (SMF, G.652). This interface is not specified as part of the 10 Gigabit Ethernet standards and is, instead, built according to Cisco specifications. SFP-10G-ZR-S does not support FCoE.

Technical specifications

Platform support

Cisco SFP+ modules are supported on Cisco switches. For more details, refer to the document “Cisco 10 Gigabit Ethernet Transceiver Modules Compatibility Matrix”: https://www.cisco.com/en/US/docs/interfaces_modules/transceiver_modules/compatibility/matrix/OL_6974.html.

Connectors and cabling

Connectors: Dual LC/PC connector (-SR, -LR, -ER, -ZR).

Note:    Only connections with patch cords with PC or Ultra-Physical Contact (UPC) connectors are supported. Patch cords with Angled Physical Contact (APC) connectors are not supported. All cables and cable assemblies used must be compliant with the standards specified in the standards section.

Table 1 provides cabling specifications for the Cisco SFP+ modules.

Table 1.       SFP+ Port cabling specifications

* Minimum cabling distance for -SR, -LRM, -LR, -ER modules is 2 meters, according to the IEEE 802.3ae standard.

**Links longer than 30 kilometers are considered engineered links as per the IEEE 802.3ae standard.

*** Specified at transmission wavelength.

**** Requires 5 dB 1550 nm fixed loss attenuator for less than 20 kilometers. Attenuator is available as a spare.
The part number is 15216 ATT LC 5=.

a No FCoE support

Table 2 shows the main optical characteristics for the Cisco SFP+ modules.

Table 2.       Optical transmit and receive specifications

*Transmitter and receiver power is in average, unless specified.

** The launch power shall be the lesser of the class 1 safety limit or the maximum receive power. Class 1 laser requirements are defined by IEC 60825-1: 2001.

Table 3 describes the bail latch color code for each type of optical Cisco SFP+ module.

Table 3.       Cisco SFP+ optical modules color code

Dimensions

Dimensions (H x W x D): 8.5 x 13.4 x 56.5 mm. Cisco SFP+ connectors typically weigh 75 grams or less.

Environmental conditions and power requirements

Operating temperature range:

• Commercial temperature range (COM): 0 to 70°C (32 to 158°F)
• Storage temperature range: -40 to 85°C (-40 to 185°F)

Table 4 provides the maximum power consumption and operating temperature range ratings for each Cisco SFP+ module.

Table 4.       Cisco SFP+ modules maximum power consumption

Warranty

• Standard warranty: 1 year
• Extended warranty (optional): Cisco SFP+ modules can be covered in a Cisco Smart Net Total Care^™Service support contract for the Cisco platform chassis

Ordering information

Table 5 provides the ordering information for Cisco SFP+ modules and related cables.

Table 5.       Ordering information

Regulatory and standards compliance

Following is information about standards and safety compliance.

Standards

• GR-20-CORE: Generic requirements for optical fiber and optical fiber cable
• GR-326-CORE: Generic requirements for single-mode optical connectors and jumper assemblies
• GR-1435-CORE: Generic requirements for multifiber optical connectors
• IEEE 802.3: 10 Gigabit Ethernet
• SFP+ MSA SFF-8431 (optical modules, active optical cables, and passive twinax cables)
