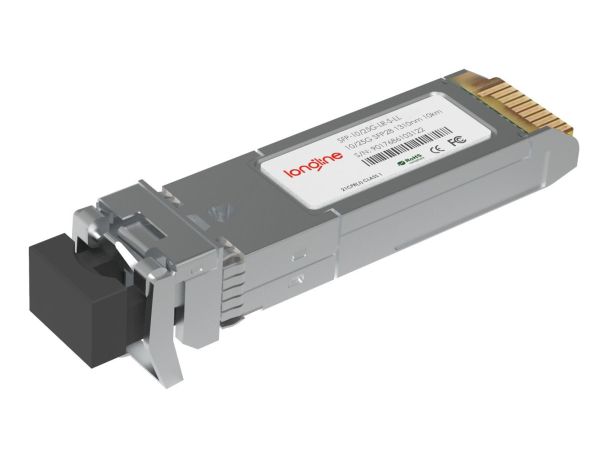

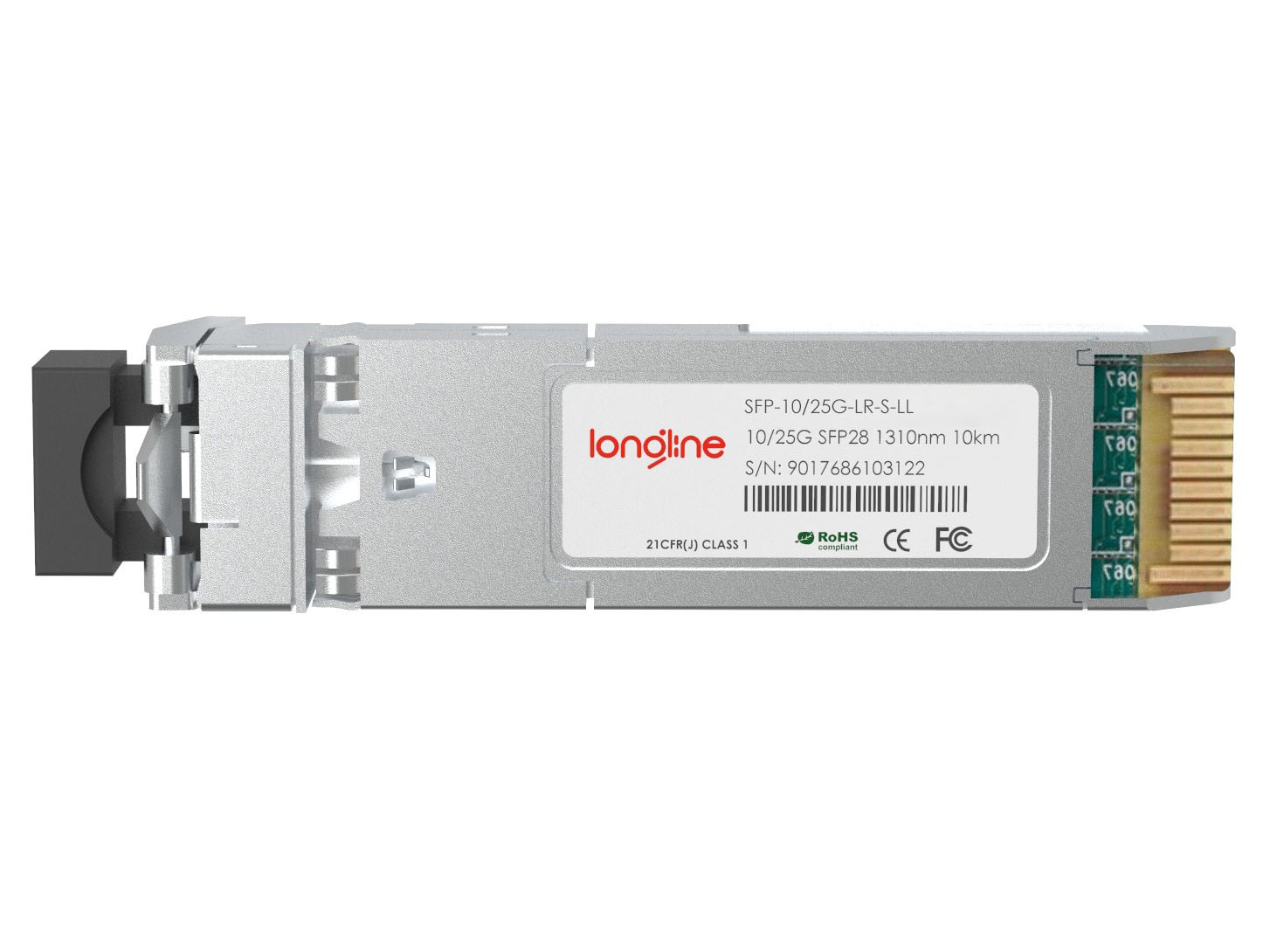

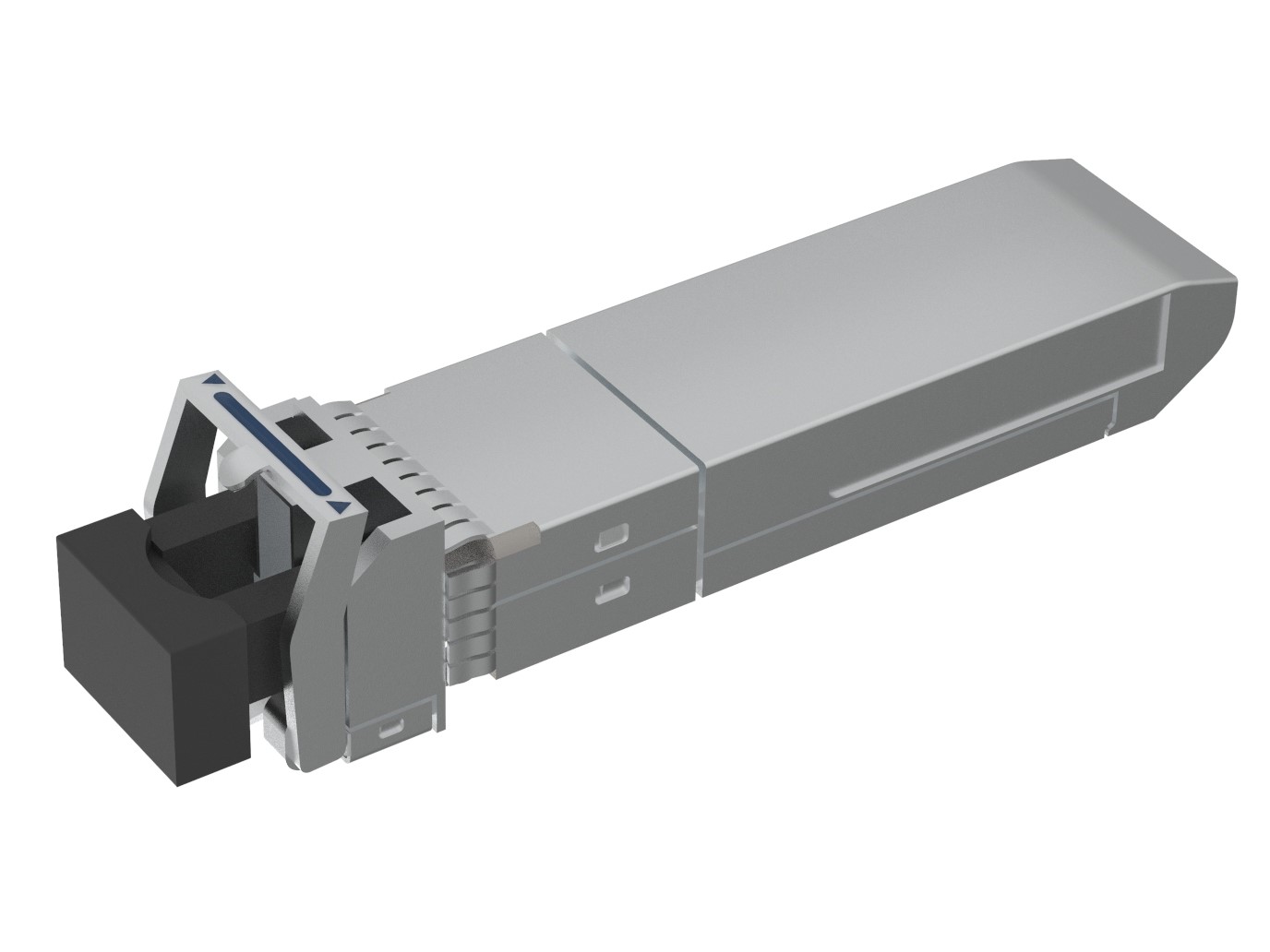

The Cisco SFP-10/25G-LR-S compatible SFP28 transceiver provides 10/25GBASE-LR throughput up to 10km over single mode fiber (SMF) using a wavelength of 1310nm via an LC duplex connector. This module provides 10G backward compatibility and simplifies network upgrade. It provides connectivity option for 25G Ethernet, 10G Ethernet and data center. It is fully compliant with the SFP28 MSA, SFF-8472, SFF-8402, SFF-8432 and applicable portions of SFF-8431 standard.
Cisco Compatible | SFP-10/25G-LR-S | Vendor Name | Longline |
Form Factor | SFP28 | Max Data Rate | 25.78Gbps |
Wavelength | 1310nm | Max Cable Distance | 10km |
Connector | Duplex LC | Media | SMF |
Transmitter Type | DFB | Receiver Type | PIN |
TX Power | -7~2.5dBm | Receiver Sensitivity | ＜-12dBm |
Powerbudget | 5dB | Receiver Overload | 2.5dBm |
Power Consumption | ≤1.5W | Extinction Ratio | ＞3dB |
Commercial Temperature Range | 0 to 70°C | Protocols | SFF-8472, SFF-8024, SFF-8431, SFF-8432, CEI-28G-VSR |
Core Size | G.652 | Packaging Technology | BOX Packaging |
DOM | Supported | Warranty | 5 Years |
