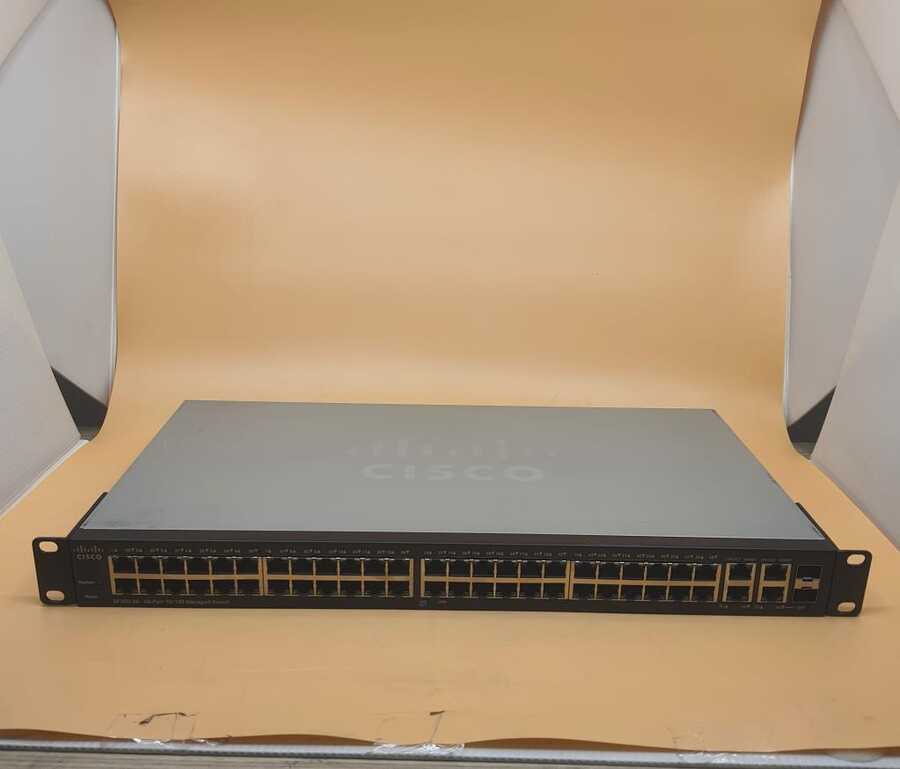

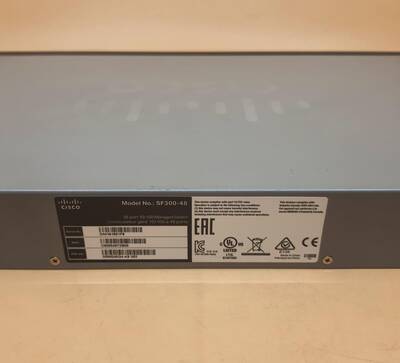

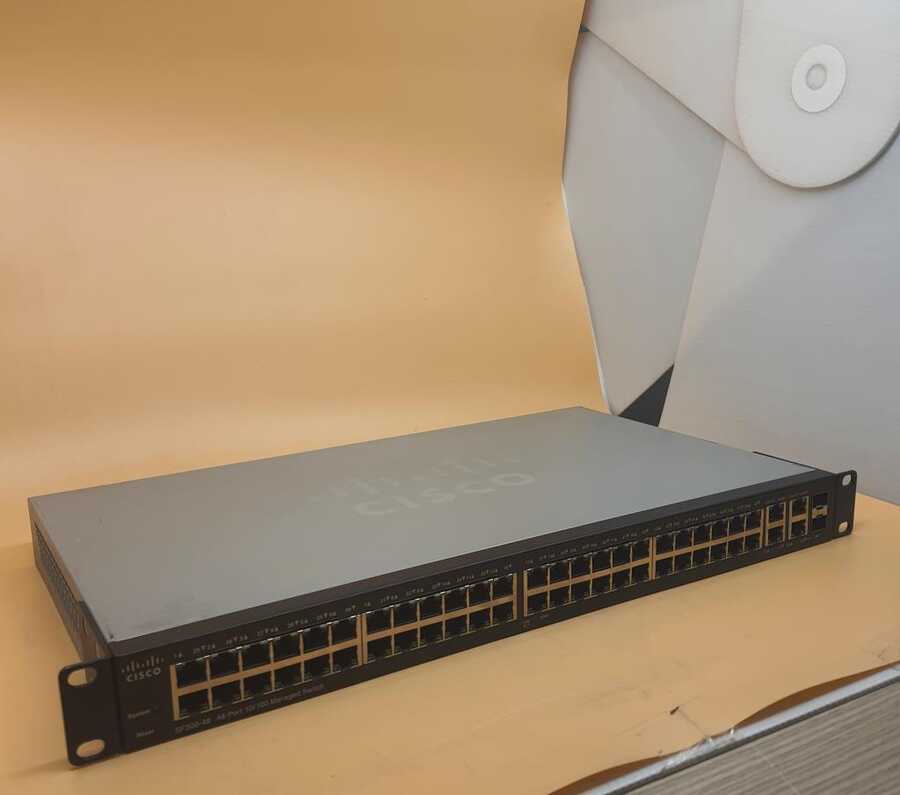

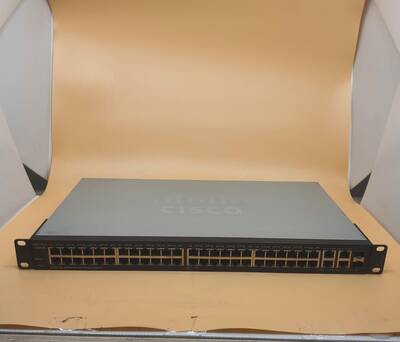

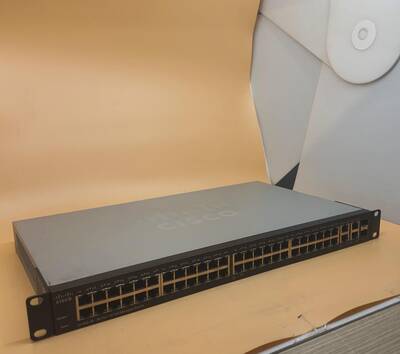

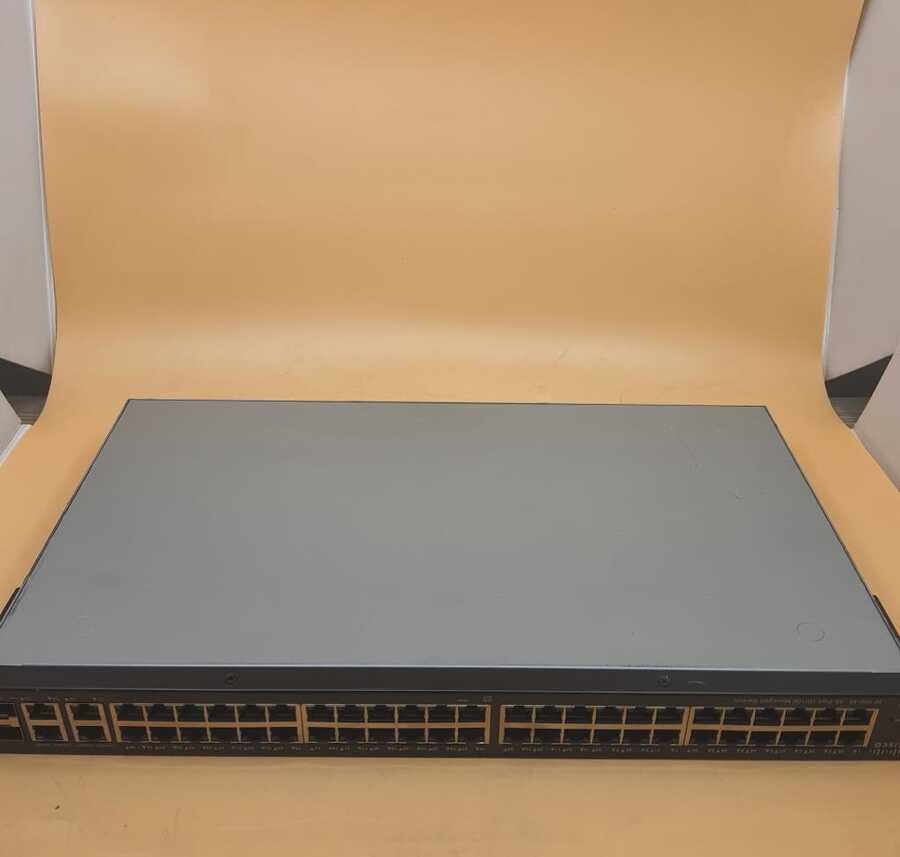

Product Number | SF300-48 |
Product Description | 48 10/100 ports - 2 10/100/1000 ports, 2 combo mini-GBIC |
Device Type | Switch - 48 ports - L3 - managed |
Enclosure Type | Desktop, rack-mountable - 1U |
Ports | 48 x 10/100 + 2 x combo Gigabit SFP + 2 x 10/100/1000 |
Power Over Ethernet (PoE) | N/A |
Performance | Switching capacity : 17.6 Gbps ¦ Forwarding performance (64-byte packet size) : 13.1 Mpps |
MAC Address Table Size | 16K entries |
Capacity | 4K Active VLANs |
Routing Protocol | Static IPv4 routing |
Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH, CLI |
Jumbo Frame Support | 10KB |
Authentication Method | Secure Shell (SSH), RADIUS, TACACS+ |
Features | Layer 3 switching, layer 2 switching, DHCP support, BOOTP support, VLAN support, IGMP snooping, Syslog support, DoS attack prevention, port mirroring, DiffServ support, Weighted Round Robin (WRR) queuing, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, firmware upgradable, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, MLD snooping, fanless |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s |
RAM | 128 MB |
Flash Memory | 16 MB flash |
Status Indicators | Link activity, port transmission speed, system |

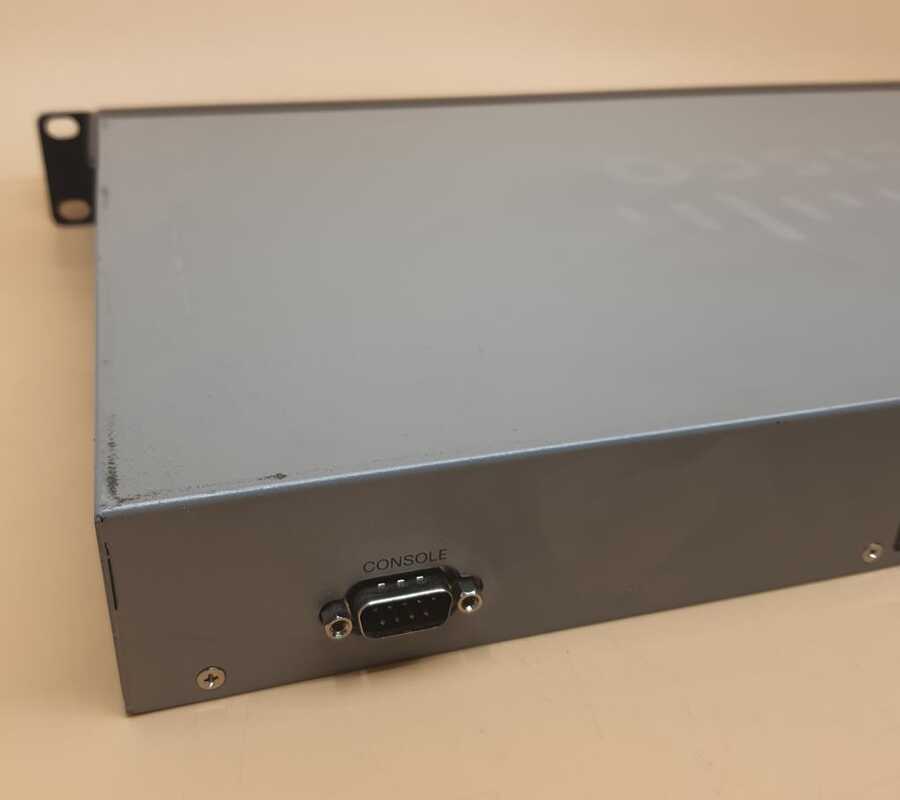

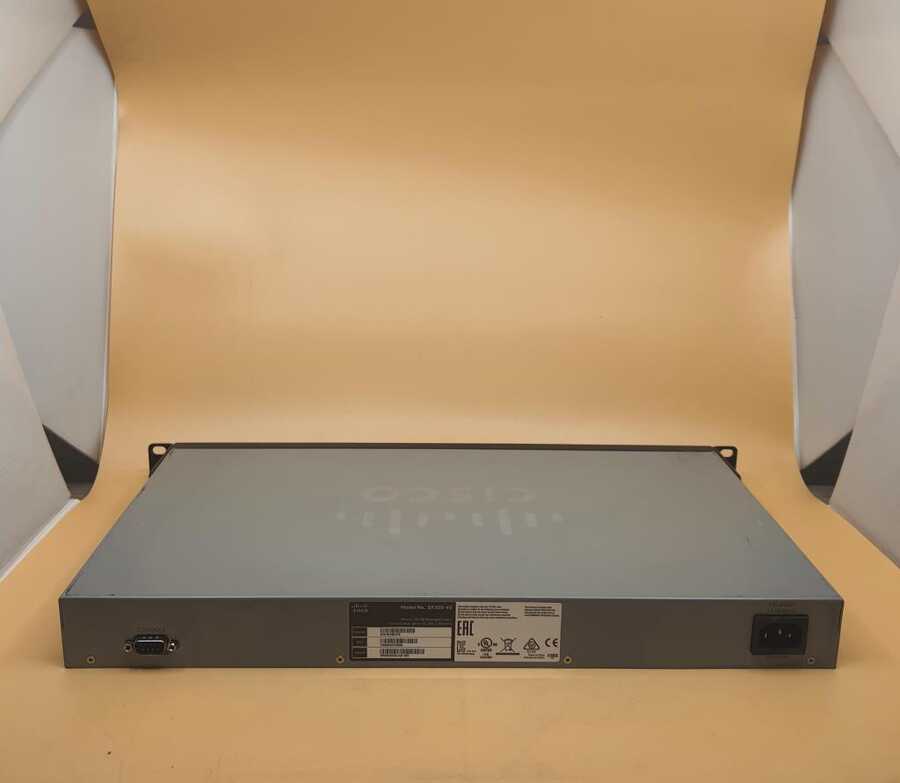

Interfaces | 48 x 10Base-T/100Base-TX - RJ-45 ¦ 1 x console - 9 pin D-Sub (DB-9) - management ¦ 4 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ 2 x SFP (mini-GBIC) |
Power Device | Power supply - internal |

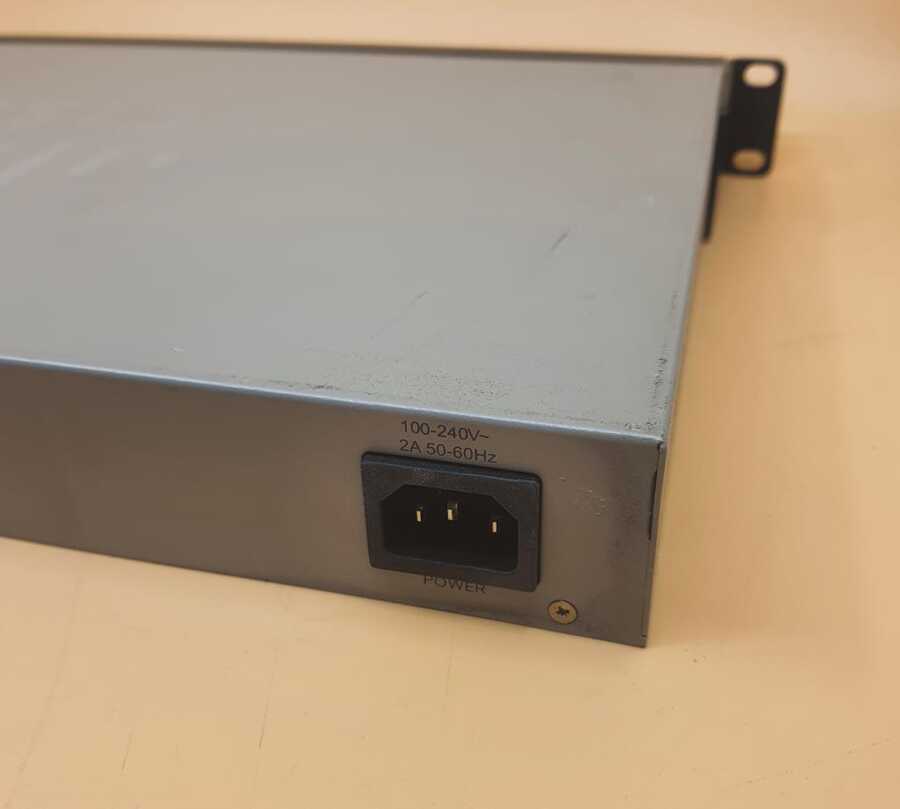

Voltage Required | AC 120/230 V ( 50/60 Hz ) |
Width | 17.3 in |
Depth | 13.8 in |
Height | 1.5 in |
Weight | 7.5 lbs |
Cables Included | 1 x serial cable |
Rack Mounting Kit | Included |
MTBF | 199,664 hour(s) |

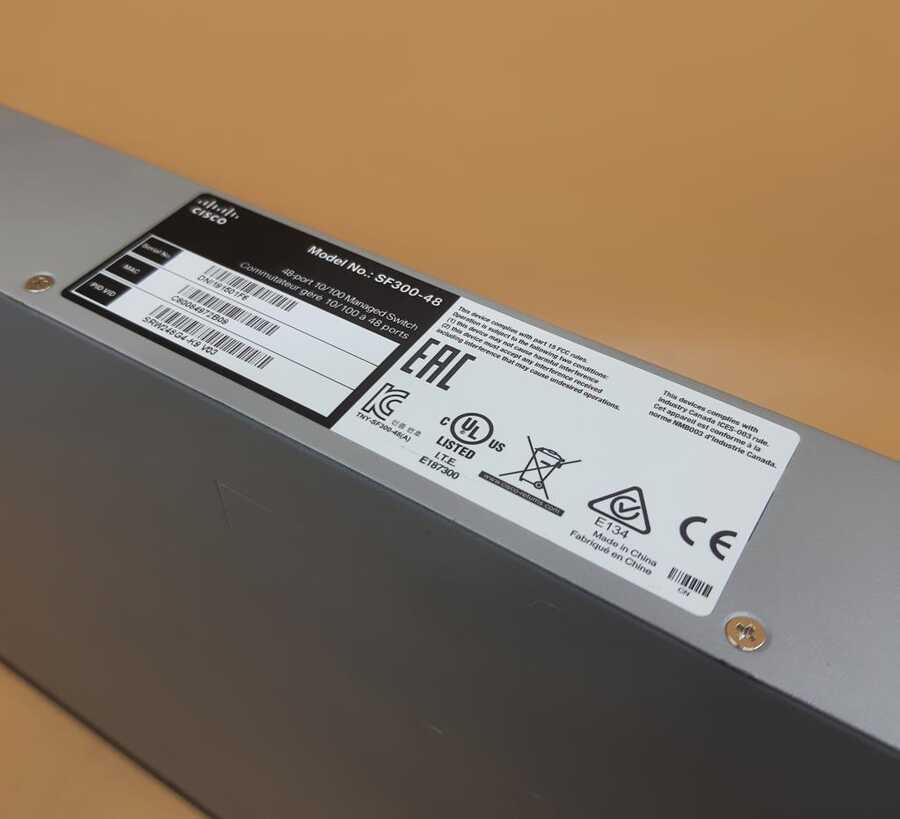

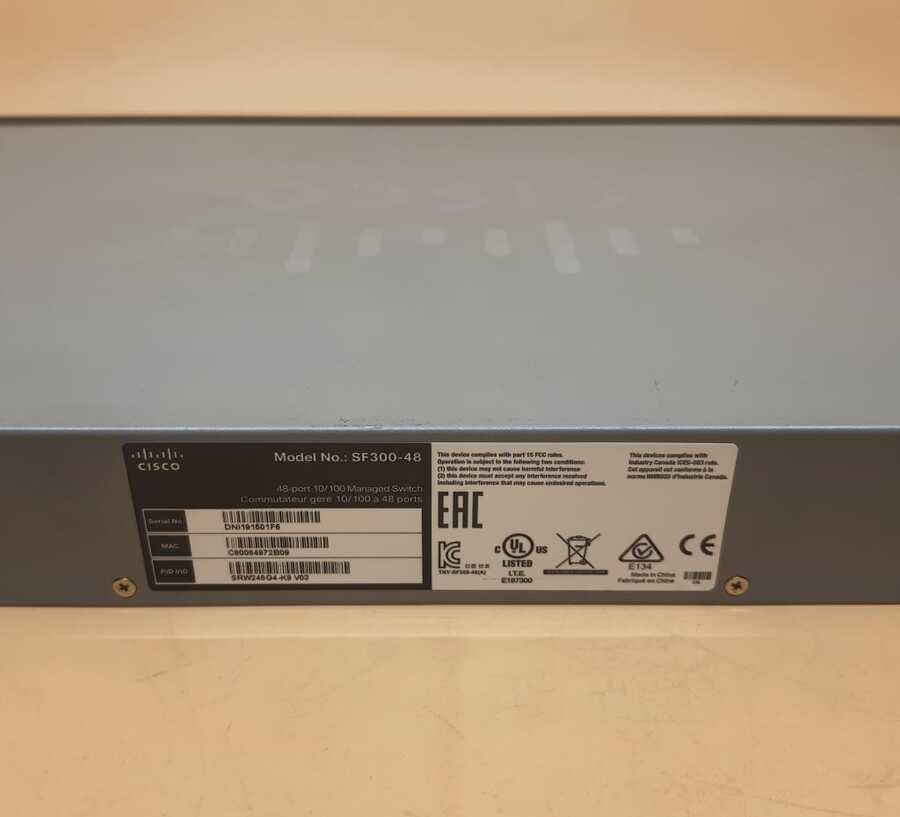

Compliant Standards | UL 60950, FCC Part 15 A, CSA 22.2 |
Min Operating Temperature | 32 °F |
Max Operating Temperature | 104 °F |
Humidity Range Operating | 10 - 90% (non-condensing) |
Min Storage Temperature | -4 °F |
Max Storage Temperature | 158 °F |
Humidity Range Storage | 10 - 90% (non-condensing) |
