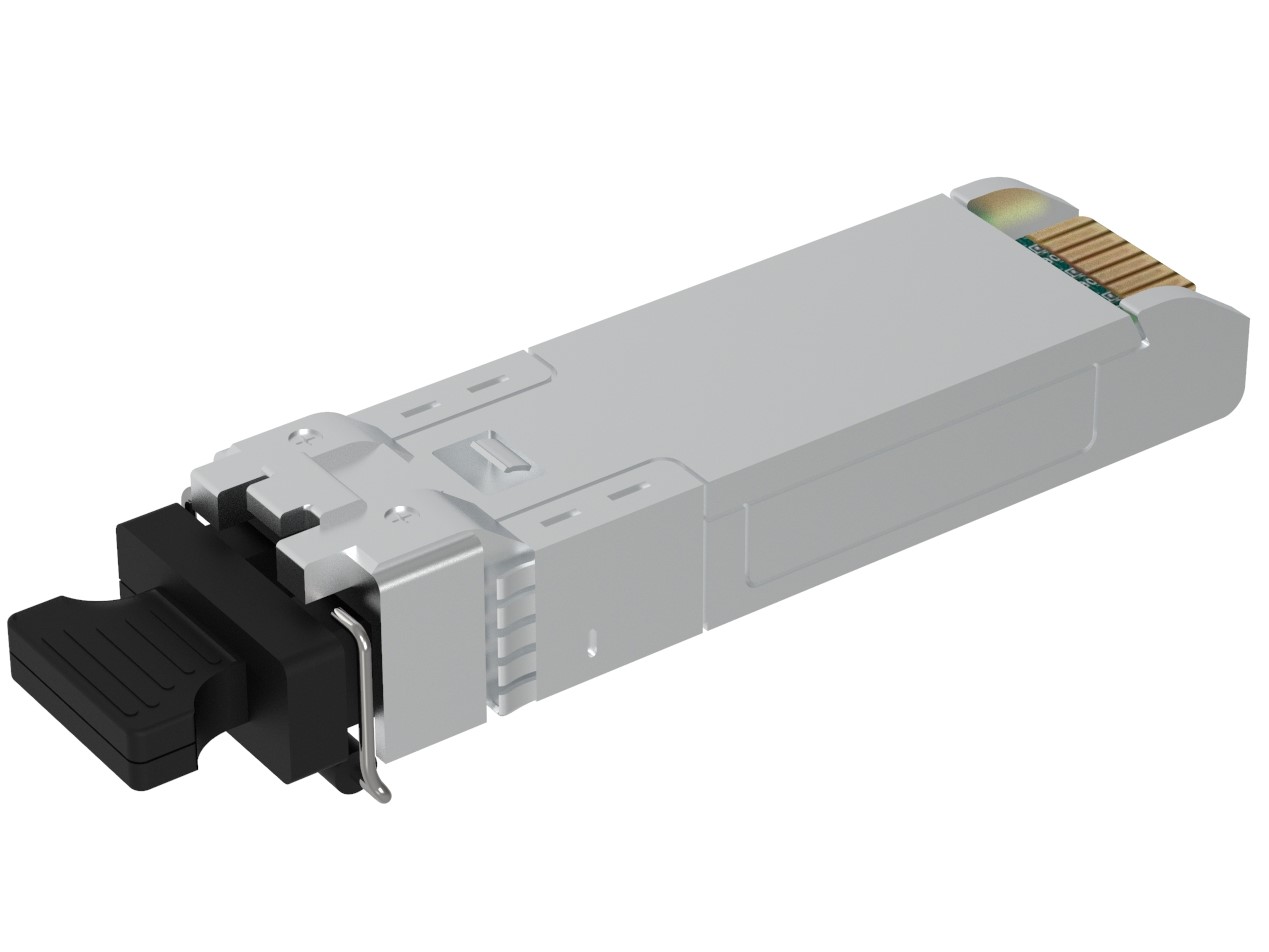

The Brocade 25G-SFP28-ER40-I compatible SFP28 transceiver provides 25GBase-ER throughput up to 40km over single mode fiber (SMF) using a wavelength of 1310nm via an LC duplex connector. Featuring low power consumption, high speed, this 25G transceiver is ideal for 25G Ethernet, data center, and 5G Wireless Network, suitable for both outdoor and indoor deployments. It is fully compliant with the SFP28 MSA, CPRI and eCPRI standard.
Brocade Compatible | 25G-SFP28-ER40-I | Vendor Name | Longline |
Form Factor | SFP28 | Max Data Rate | 25.78Gbps |
Wavelength | 1310nm | Max Cable Distance | 30km |
Connector | Duplex LC | Media | SMF |
Transmitter Type | DML 1310nm | Receiver Type | APD |
TX Power | -0.5~6.5dBm | Receiver Sensitivity | <-19.5dBm |
Powerbudget | 19dB | Receiver Overload | -4dBm |
Power Consumption | ≤2W | Extinction Ratio | 4dB |
DDM/DOM | Supported | Industrial Temperature Range | -40 to 85°C (-40 to 185°F) |
CDR | TX & RX Built-in CDR | FEC Function | Not Support |
Protocols | SFF-8472, SFF-8432, SFF-8431 | Warranty | 5 Years |
Core Size | G.652 | Packaging Technology | BOX Packaging |
