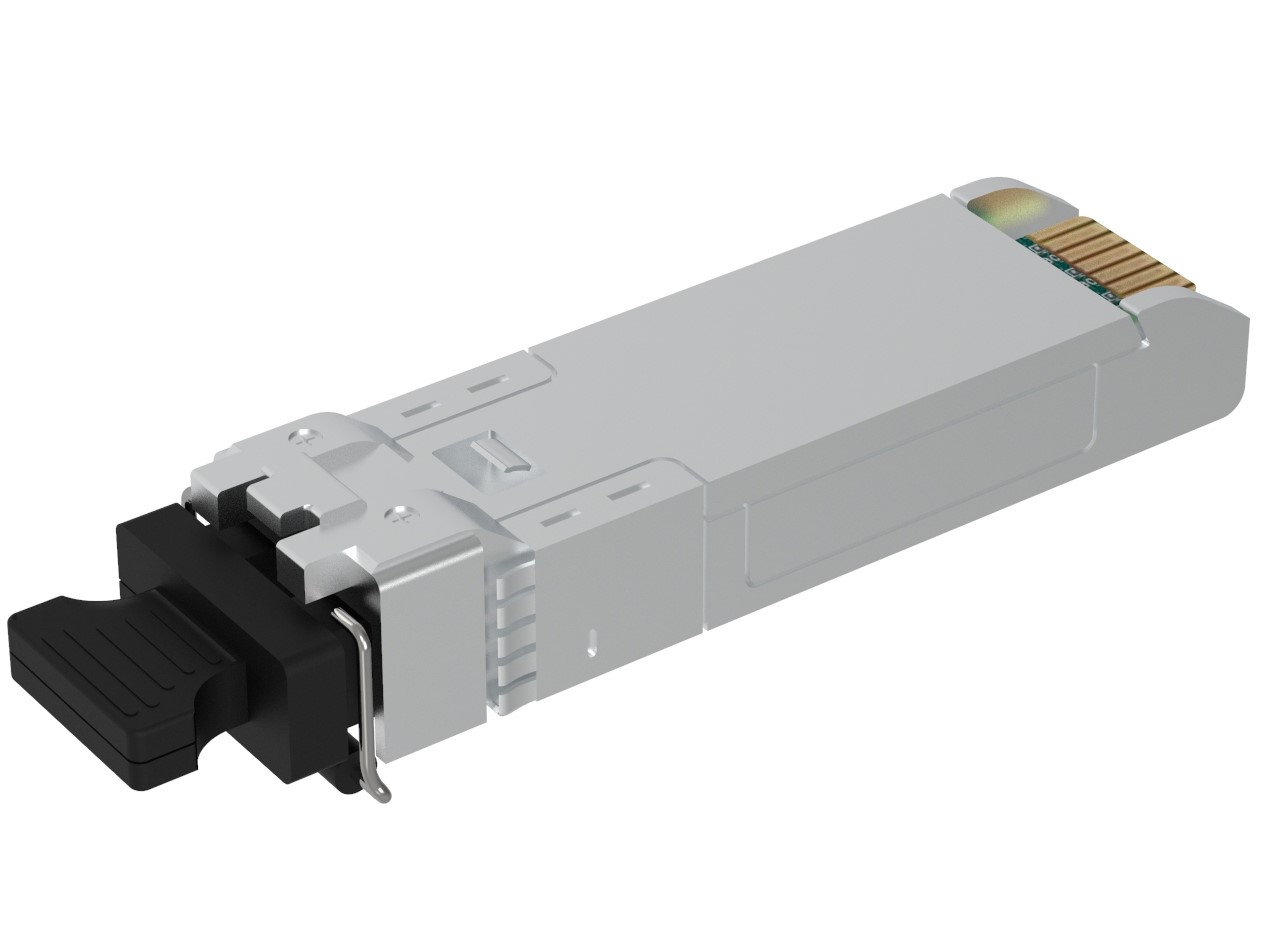

The Cisco compatible SFP28 transceiver provides 25GBase-ER throughput up to 30km over single mode fiber (SMF) using a wavelength of 1310nm via an LC duplex connector. It provides 25GBASE Ethernet connectivity option for 25G Ethernet, telecom and data center. Besides, this module offers interoperability, laying a foundation for the next-generation network upgrade. It is fully compliant with the SFP28 MSA, CPRI and eCPRI standard.
Part Number | SFP28-25GER-31 | Vendor Name | Longline |
Form Factor | SFP28 | Max Data Rate | 25.8Gbps |
Wavelength | 1310nm | Max Cable Distance | 30km |
Connector | Duplex LC | Media | SMF |
Transmitter Type | DML 1310nm | Receiver Type | APD |
TX Power | 0~6dBm | Receiver Sensitivity | <-19dBm |
Powerbudget | 19dB | Receiver Overload | -4dBm |
Power Consumption | ≤2.2W | Extinction Ratio | 4dB |
CDR | TX and RX | FEC Function | Not Supported |
Commercial Temperature Range | 0 to 70°C (32 to 158°F) | Protocols | MSA Compliant, CPRI, eCPRI |
DDM/DOM | Supported | Warranty | 5 Years |
Core Size | G.652 | Packaging Technology | BOX Packaging |
