ENTEGRON TS6208PENTG2G 8 port 10/100M Poe Switch
With 2 Gigabit RJ45 Uplink Ports
Product Description:
Whole Power:120W(52V 2.3A)Fast Ethernet Access+Gigabit Uplink:
· 8*10/100M PoE port+2*1000M Uplink port
· All ports support non-blocking transmission at wirespeed
· Support IEEE 802.3x and Backpressure
PoE Function:

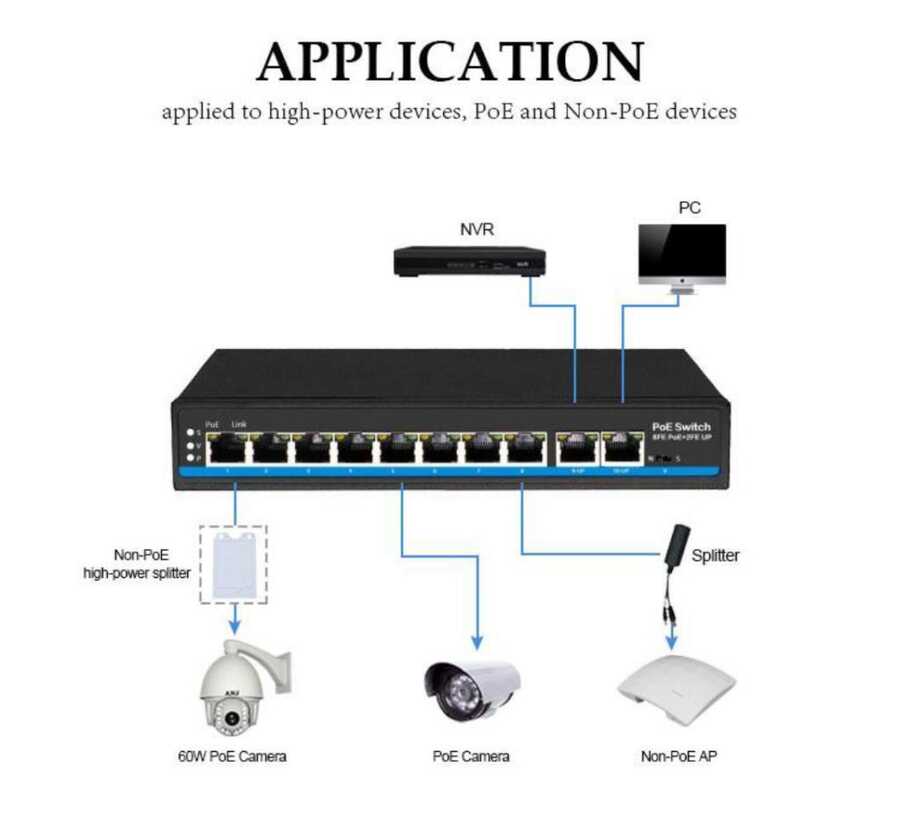

· 8*10/100M PoE port(satisfied in environment in security monitoring, phone meeting system and wireless coverage.)
· Have PoEdog function that when PoE is on, the switch can achieve real-time detection on powered devices. And the switch automatically sets the ports and then restores PoE power supplying to make no duty come true.
· Complied to IEEE 802.3af/at/PoE++/HiPoE,whole device PoE output power up to 120W(first port can output HiPoE_60W and other single port PoE power up to 30W).
· Automatically detect and supply power for PoE devices.
· Priority mechanism(prior protection on port power supply).

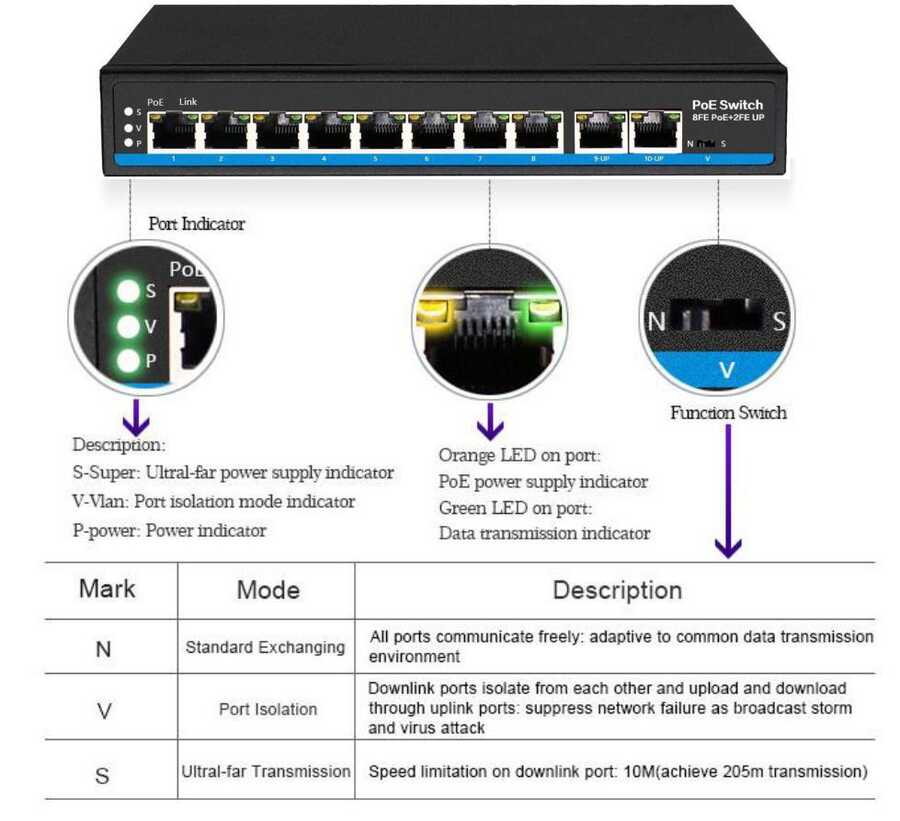

Operating Modes:
· N---Standard Normal(all ports communicate freely and adapts to common transmission environment)
· V---Port isolation(8 fast ethernet ports isolate from each other and suitable for using environment connected to wireless AP to suppress network storm and promote network performance.
· S---Ultral-far mode(designed specially for long-distance application environment up to 250 meter)
Specification:
Product 8FE +2GE Uplink Port POE Switch Model TS6208PENTG2G POE Port 1 to 8 support IEEE802.3AF/AT Standard Output Power 15.4W/30W IEEE802.3af/at Power Pin Both 1/2+、3/6- and 4/5+7/8- Whole Power ≤120W (52V 2.3A) POE Protocol IEEE 802.3af/IEEE 802.3at Power Distance ≤250m Network Standard IEEE 802.3、 IEEE802.3u、802.3x、802.3af/at Network Medium 10/100BASE-TX:5 class and above non shielded twisted pair Data Distance ≤250m Switch Capability 16Gbps Forwarding Mode Store and forward Forwarding Rate 100Mbps:14880pps Port Function Power priority mechanism, fast and forward, MAC automatic learning and aging IEEE802.3X Full-duplex and mode and backpressure for Half-duplex mode LED Indicator LINK/ACT.100Mbps;POE Status Indicator; Power indicator;Extender Working Environment Working temperature:-10°-- 55°C Weight 1.3kg Size 210mm*140mm*44mm(L*W*H)
