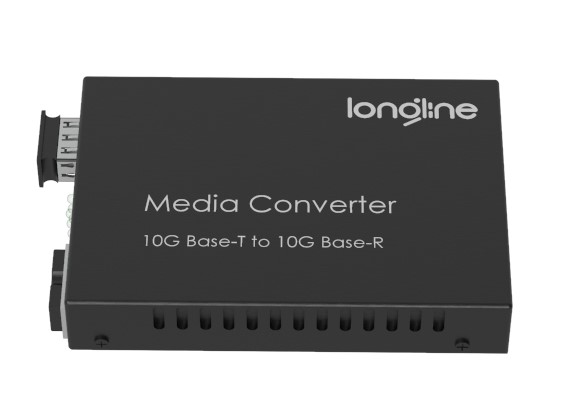

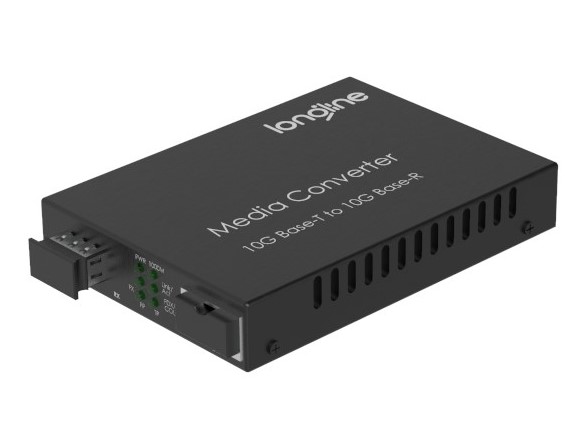

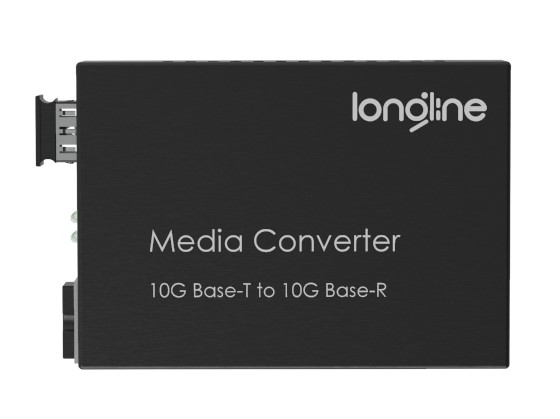

10G Base-T to 10G Base-R Media Converter User’s Manual LNGMC-MANUEL

1. Overview

10G Base-T to 10G Base-R Media Converter supports two types media for network connection such as 10GBase-T and 10GBase-FX. The bridge media converter is designed with a 10Gbase Ethernet PHY chip that connects two types segments operation smoothly. This converter can be used as standalone unit or as slide-in module to the 19” converter rack Chassis for use at a central wiring closet.

2. Technical Specifications

Standards

1000Base-T, 2.5GBase-T, 5Gbase-T, 10Gbase-T
1000Base-X, 2500Base-X, 5GBase-R , 10GBase-R

Media Supported

1000Base-T: Cat5 UTP/STP. MAX 100m;

2.5GBase-T: Cat5e UTP/STP. MAX 50m;

5GBase-T: Cat5e UTP/STP. MAX 50m;

10G Base-T: Cat6a UTP/STP. MAX 50m;

Port Type

RJ45, SFP Slot

Work Mode

1000Base-T to 1000Base-X
2.5GBase-T to 2500Base-X

5Gbase-T to 5GBase-R

10Gbase-T to 10GBase-R

Power Supply

12V DC

Power
consumption

MAX 5W

Operation Tempera tore

0℃ to 55℃

Relative Humidity

5% to 80% (non-condensation)



3. Installing the Converter

For as a standalone unit:
→ Verify the DC adapter conforms to your country DC power requirement and insert the power plug
→ Connect the media cable for network connection
For as a slide-in unit:
→ The slide-in Media Converter and Converter Rack Chassis should supplied only from the same source, both Media Converter Rack Chassis are built to match each other at dimension, DC jack, DC receptacle and power safety.
→ Turn off the 19” converter rack power
→ Locate +12V DC power jack on converter back, carefully slide in and plug to 19” rack +12V DC power receptacle
→ Connect the media cable for network connection
→ Turn on the converter rack power, the Power LED will light up
