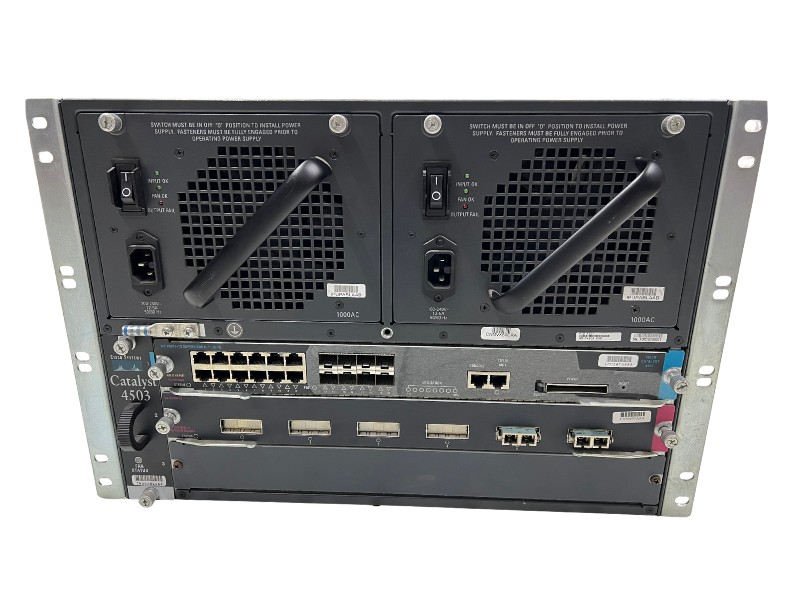

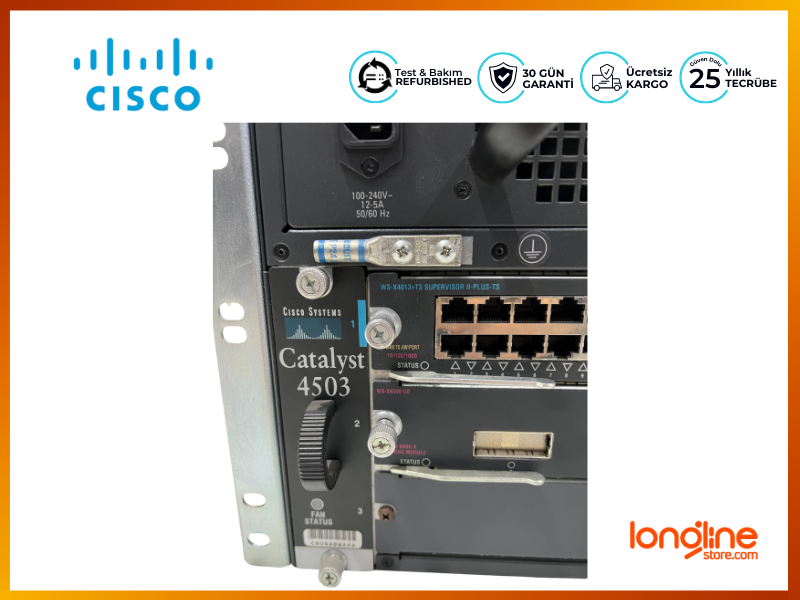

Cisco Catalyst 4503 WS-C4503 + WS-X4013+TS + WS-X4306-GB 2XPower

General Information

Manufacturer:

Cisco

Product ID:

WS-C4503

Product Description:

Catalyst 4500 Chassis (3-Slot),fan, no p/s

Product Type:

Ethernet Switch

I/O Expansions

Number of Total Expansion Slots:

3

Expansion Slot Type:

Supervisor Engine

Management & Protocols

Manageable:

Yes

Management:

·  SNMP

·  MIB

Power Description

Power Source:

Power Supply

Redundant Power Supply:

Yes

Physical Characteristics

Height:

12.3"

Width:

17.3"

Depth:

12.5"

Weight (Approximate):

75.00 lb

Miscellaneous

Additional Information:

Item Included:

·  Catalyst 4000 Series Blank Slot Cover (C4K-SLOT-CVR)
-19-in. rack and cable guide hardware included

Supervisor engines supported:

·  Supervisor II

·  Supervisor III

·  Supervisor IV

Certifications & Standards:

Safety:

·  UL 60950CAN/CSA-C22.2 No. 60950EN 60950IEC 60950TS 001AS/NZS 3260

EMC:

·  FCC Part 15 (CFR 47) Class A

·  ICES-003 Class A

·  EN55022 Class A

·  CISPR22 Class A

·  AS/NZS 3548 Class A

·  VCCI Class A

·  EN 55022EN 55024

·  EN 61000-6-1

·  EN 50082-1

·  EN 61000-3-2

·  EN 61000-3-3

·  ETS 300 386

Industry EMC, Safety and Environmental Standards:

·  GR-63-Core NEBS Level 3

·  GR-1089-Core Level 3

·  ETS 300 019 Storage Class 1.1

·  ETS 300 019 Transportation Class 2.3 (Pending)

·  ETS 300 019 Stationary Use Class 3.1

·  ETS 300 386

Telecom (E1):

·  CTR 12/13

·  CTR 4

·  ACA TS016

Telecom (T1):

·  FCC Part 68

·  Canada CS-03

·  JATE Green Book Ethernet:

·  IEEE 802.3, 10BASE-T

Fast Ethernet:

·  IEEE 802.3u, 100BASE-TX

·  IEEE 802.3, 100BASE-FX

Gigabit Ethernet:

·  IEEE 802.3z

·  IEEE 802.3x

·  IEEE 802.3ab

·  1000BASE-X (GBIC)

·  1000BASE-SX

·  1000BASE-LX/LH

·  1000BASE-ZX

Virtual LAN (VLAN) trunking/tagging:

·  IEEE 802.1Q

Spanning-Tree Protocol:

·  IEEE 802.1D

·  IEEE 802.1w

·  IEEE 802.1s

Security:

·  IEEE 802.1x
