Overview

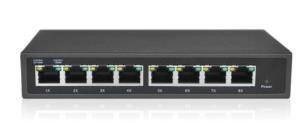

 Entegron ES1000ENTG8GM is a fully Gigabit manageable Entegron network switch designed and developed solely for the purpose of building high-performance gigabit network requirements. It provides a comprehensive security protection system,Perfect QoS strategy and rich VLAN function, Management and maintenance are simple and can be applied to small and medium enterprises, Core layer of community and school.



Main Features

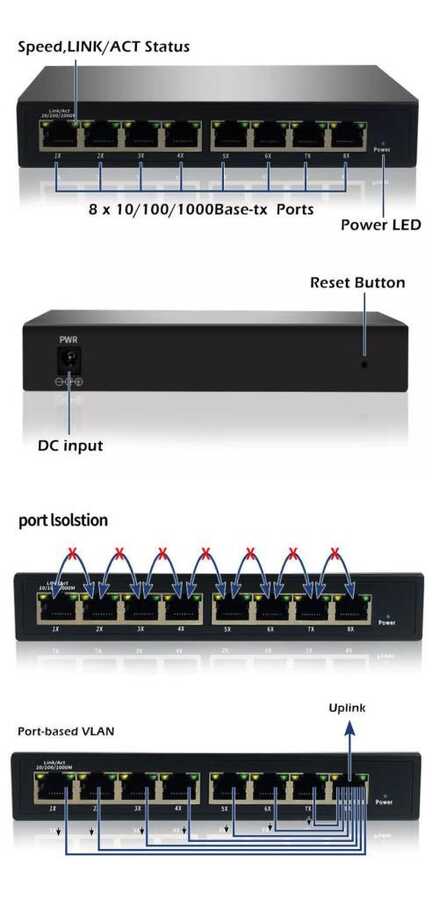

1.Support port based vlan and 802.1q tag vlan



2.Support port-based QOS, quality of service, higher priority traffic experiences less delay than lower priority traffic under congested conditions



3.Support IEEE 802.1p Qos ,TOS/DSCP Qos



4.Support port trunking/aggregation



5.Support rate control, broadcast storm suppression



6.Support port flow control



7.Support port mirror



8.Support IGMP Snooping V1/V2, MLD snooping



9.Support IEEE802.1X based port security



10.Support loop detection, loop prevention



11.Support Dos attack prevention



12.Support configure port speed, status, poe status, poe reset



13.Support SNMP,web GUI, CLI management



14.Support mac list,mac search



Specifications:

Model	ES1000ENTG8GM
Port	8*10/100/1000M
Reset KEY	1
bandwidth	16Gbps
Packet forwarding	11.9Mpps
CPU	500MHZ
RAM	128M
MAC	8K
Buffer	1.5Mb
Transmission	Store and forward
Environmental	Working Temperature: 0℃~50℃ Storage temperature: -40℃~70℃ Working Humidity: 10%~90% Non coagulation Storage Humidity: 5%~95% Non coagulation

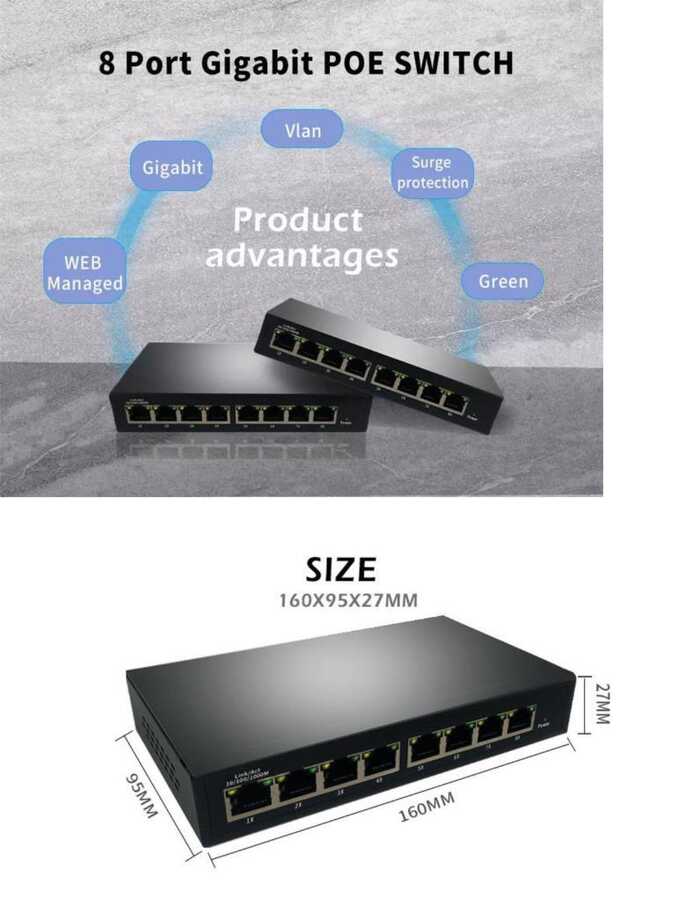

Product size	158(L)*101(W)*25(H)mm
Packing size	220(L)*150(W)*50(H)mm
Weight	0.85.0kg
Power in	External Power Adapter(Output: 12VDC/0.5A)
Power	Max. 4.48W (220VAC/50Hz)
