ENTEGRON TS6204PENTG2

4 port 10/100M Poe Switch

With 2 FE RJ45 Uplink Ports

Introduction:

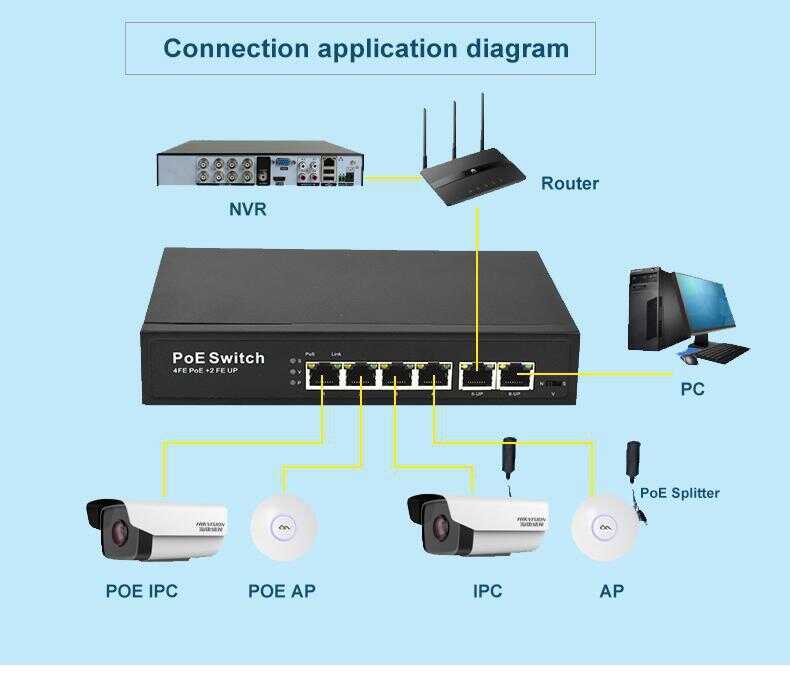

 The 6 ports Standard POE switch provides power and data to wireless access point and IP camera, using Power over Ethernet(PoE) over a single Cat-5 cable. The 6 Ethernet ports can be used for any 10/100 Mbps link and also can supply industry-standard IEEE 802.3af/at power.Advanced Auto detection gives power only to 802.3af/at powered devices, so no need to worry about damaging proprietary PoE or non-PoE equipment. In addition, it discontinues the power when PoE devices are disconnected. Easy and reliable, the standard automatically determines PoE requirements, speed, duplex, and cable type using Auto detection.

Easy Cabling Installation:

With data and power over Ethernet from one unit, The PoE switch shall reduce cables and eliminates the need for dedicated electrical outlets on the wall, ceiling or any unreachable place.Awire carries both data and power lowering the installation costs, Simplifying the installation effort and eliminating the need for electricians or extension cords. It is a great selection for expanding your home or office network

Specification：

Interface	4x 10/100Mbps RJ45 Ports +2x10/100 Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX
Network Media	10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m)
PoE Ports (RJ45)	Standard: 802.3 af/at compliant PoE                                Ports: Port1- Port 4
Voltage	Input Power48-53V.output Power 48V
Backbound Bandwidth	1.6Gbps
Mac Address Table	4K

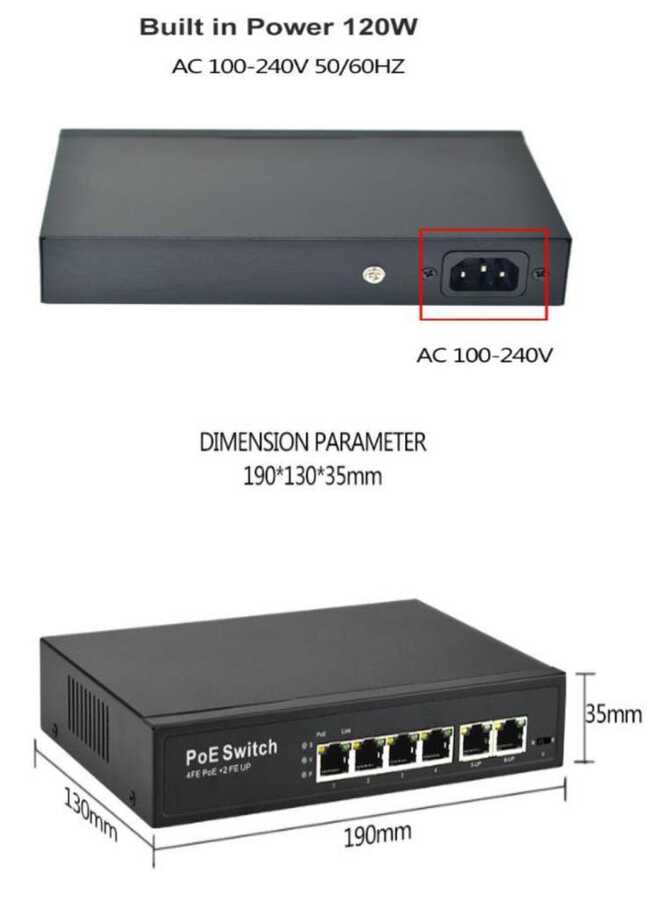

Dimensions ( W x D x H )	PCB size (12.5*5.8cm)
Environment	Operating Temperature: -10°C~70°C Storage Temperature: -40°C~70°C (-40°F~158°F)                    Operating Humidity: 10% ~ 90% non-condensing Storage Humidity:5%~90% non-condensing
Certification	CE, FCC, RoHS
